Zipwake 2022034 | Series E PRO DU-EX PRO Distribution Expansion Unit with Power Cable
por Zipwake

Zipwake 2022034 | Series E PRO DU-EX PRO Distribution Expansion Unit with Power Cable

SKU
$862.40 - $862.40
$862.40
$862.40 - $862.40
$862.40
Disponibilidad In Stock In Store - Online Only 6 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

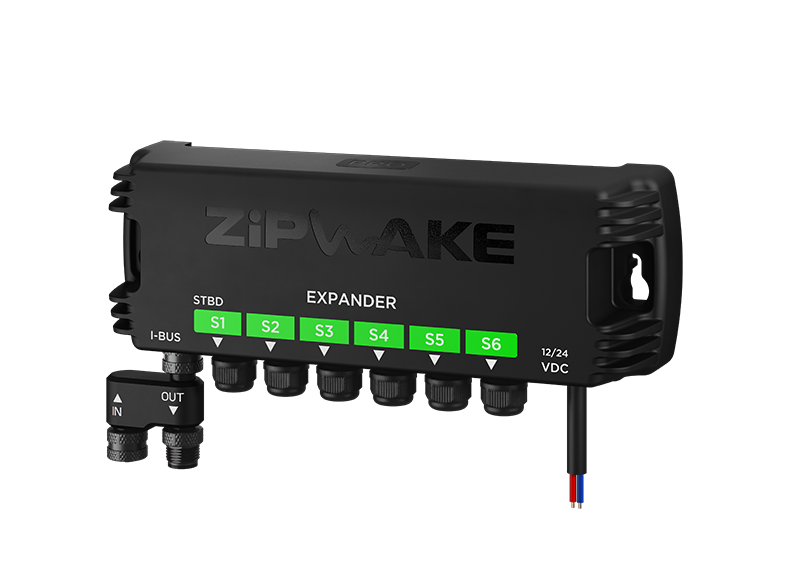

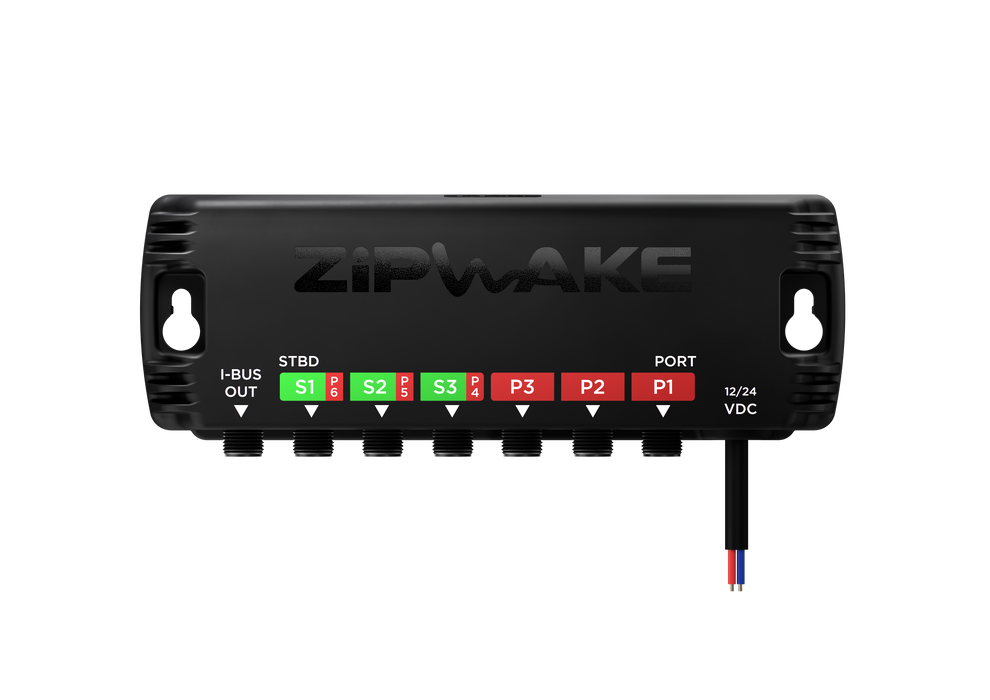

The Zipwake DU-EX PRO is the protected power-distribution component for Series E PRO systems, supporting expansion of a Series E PRO installation to as many as six dual-servo interceptors or an equivalent mix.

Its sealed, oil-resistant and ignition-protected housing is suited to engine-room installation, and the included power cable simplifies connection to the vessel supply.

Product Information

Brand Zipwake
Series Series E PRO
Model DU-EX PRO
Manufacturer Part Number 2022034
Product Type Distribution Expansion Unit

Key Features

  • Expansion of a series e pro installation to as many as six dual-servo interceptors or an equivalent mix
  • Waterproof and oil-resistant marine enclosure
  • Ignition-protected design
  • Built-in electrical protection
  • Six expansion servo connections

Specifications

Supply Voltage 12–32 V DC
Power Consumption 10 W max
Protection Fuse Integrated automatic protection
Power Cable 4 m (13 ft), 12 AWG, 9 mm (0.35 in) diameter
Operating Temperature -20°C to +85°C (-4°F to +185°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)
Waterproof Rating IP67 with cables or protective caps mounted
Oil Resistance Common engine fluids
Compliance CE, FCC, SAE J1171 ignition protected
Weight 1.1 kg (2.4 lbs)

Included

  • 1 × DU-EX PRO distribution expansion unit
  • 1 × power cable, 4 m (13 ft)

Compatibility

For the exact Series E PRO system role stated above. Use only with matching Zipwake control/integrator and interceptor hardware.

Installation Notes

  • Mount in a dry, serviceable engine-room location within the specified environmental limits.
  • Fit protective caps to unused connections and follow the specified vessel-side fuse and main-switch arrangement.

Important Information

This unit is not interchangeable with a different Zipwake generation unless the exact system architecture explicitly supports it.

Brand: Zipwake
