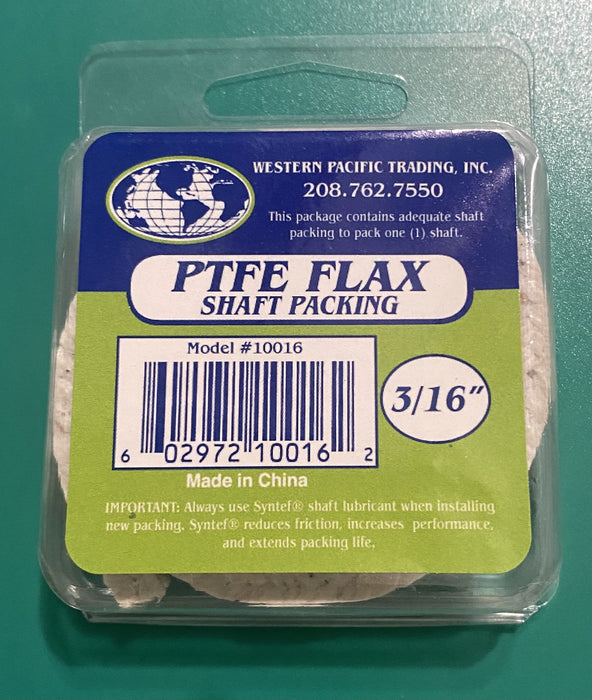

Western Pacific Trading 10016 | Flax Packing 3/16X2
por Western Pacific Trading

Western Pacific Trading 10016 | Flax Packing 3/16X2

SKU
Agotado
$7.49
$7.49 - $7.49
$7.49
$7.25
$7.25 - $7.25
$7.25
Disponibilidad Agotado In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Features:

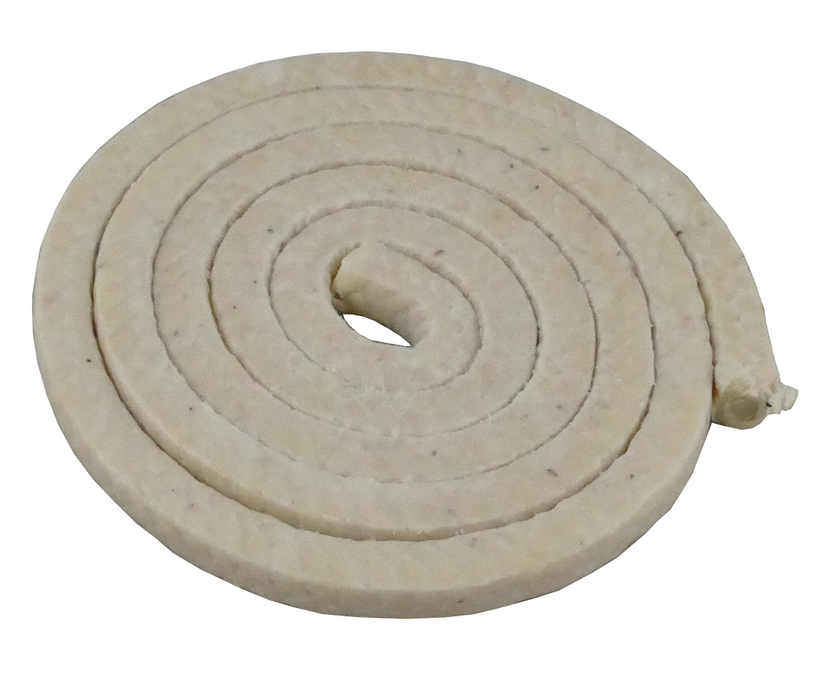

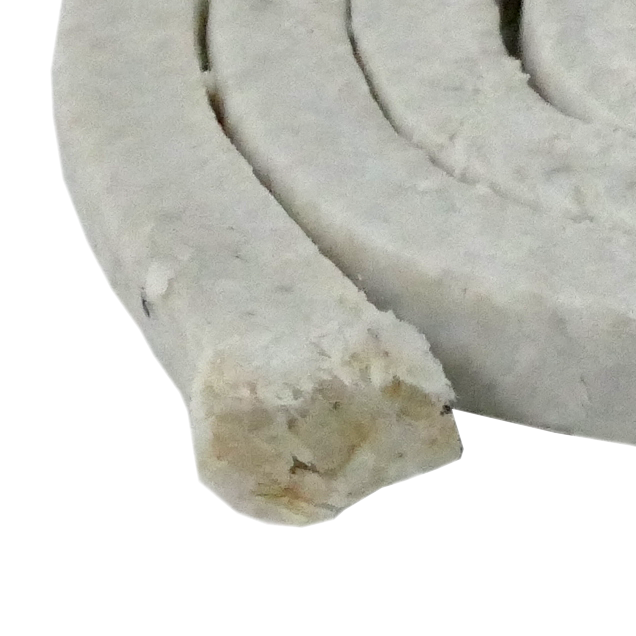

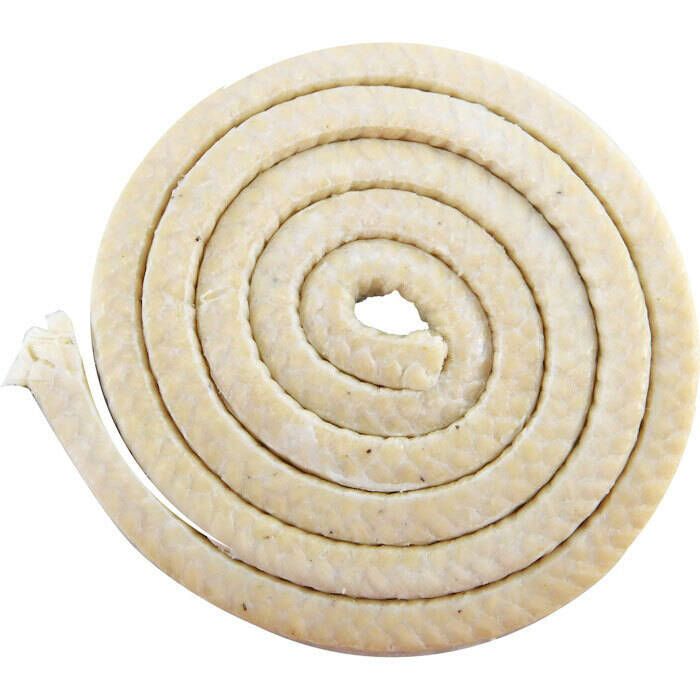

  • Teflon (PTFE) Flax Packing is braided from quality flax rovings
  • Packing is then impregnated with Teflon (PTFE)
    • This combination of fibers produces a packing that is thermal conductive, strong and very durable
    • The thermal conductive feature dissipates heat away from the stuffing box, allowing it to run cooler and more efficient
  • The result is a quality packing that offers high performance and extended packing life

1/8" Diameter Specifications:

  • Length: 24"
  • Applications: Shaft Sizes 5/8" and 3/4"
  • PTFE Flax Limits /
    • Temperature Limits: 482° F (250° C)
    • PSI Limit - Pump: 725 PSI
    • PSI Limit - Piston: 1160 PSI
    • PSI Limit - Valve: 1450 PSI
    • FPM Limit: 0-2400 PFM
    • PH Range: 4-14

3/16" Diameter Specifications:

  • Length: 24"
  • Applications: Shaft Sizes 3/4" and 7/8"
  • PTFE Flax Limits
    • Temperature Limits: 482° F (250° C)
    • PSI Limit - Pump: 435 PSI
    • PSI Limit - Piston: 1450 PSI
    • PSI Limit - Valve: 2900 PSI
    • FPM Limit: 0-4400 PFM
    • PH Range: 0-14

1/4" Diameter Specifications:

  • Length: 24"
  • Applications: Shaft Sizes 1" and 1-1/8"
  • PTFE Flax Limits
    • Temperature Limits: 482° F (250° C)
    • PSI Limit - Pump: 725 PSI
    • PSI Limit - Piston: 1160 PSI
    • PSI Limit - Valve: 1450 PSI
    • FPM Limit: 0-2400 PFM
    • PH Range: 4-14

5/16" Diameter Specifications:

  • Length: 24"
  • Applications: Shaft Sizes 1-1/4" and 1-3/8"
  • PTFE Flax Limits
    • Temperature Limits: 482° F (250° C)
    • PSI Limit - Pump: 725 PSI
    • PSI Limit - Piston: 1160 PSI
    • PSI Limit - Valve: 1450 PSI
    • FPM Limit: 0-2400 PFM
    • PH Range: 4-14
|

Flax packing built to withstand high heat and reduce friction.

PTFE Flax Shaft Packing is braided from flax rovings and is then impregnated with PTFE lubricant. The combination of the quality flax and the PTFE lubricant provides a packing that has a higher performance level than conventional packings. Packaged in 2' lengths.

Key Features

  • Protects propeller shafts and prevents the bilge from filling with water
  • Dissipates heat away from the stuffing box
  • PTFE flax packing is braided from flax roving
  • Thermal conductive material allows the propeller shaft to run cooler and efficiently
  • Will not scar, bind, freeze or contribute to misalignment of shaft
  • Resistant to frictional heat
  • Braided from quality flax roving

|

Teflon (PTFE)/Flax packing is braided from flax roving that has been impregnated with Teflon. It is a big step up from traditional flax packing.
Although the underlying flax matrix is still subject to degradation over time, the Teflon lubricants last longer because they are resistant to the frictional heat generated by the rotating shaft.

• Offers high performance and extended packing life
• Rated to 482°F; rotation speed of 2,400 ft/min
• Color is off-white

Features & Specifications

  • Manufacturer Part Number: 10016

Brand: Western Pacific Trading

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Peso:
Dimensiones: x x
Código de barras:
