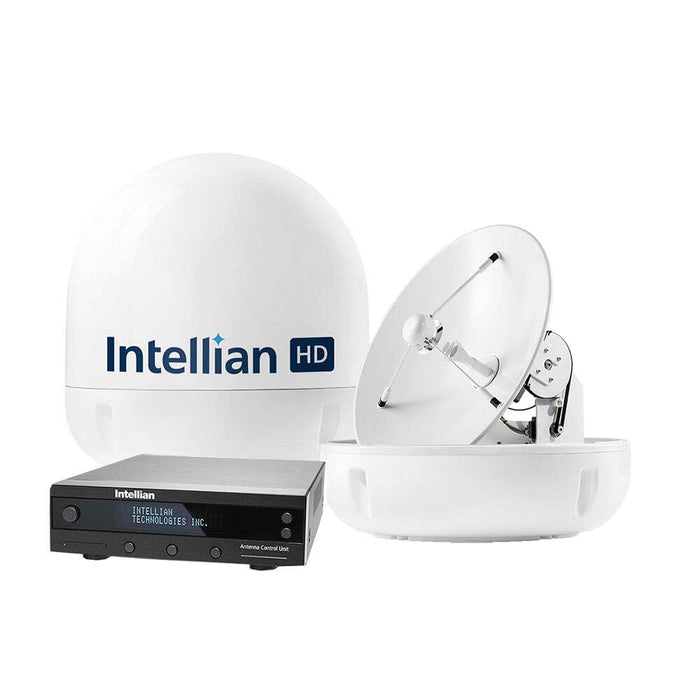

Intellian B4-639HD s6HD US Ku-Ka Band HD System with Reflector -
por Intellian

Intellian B4-639HD s6HD US Ku-Ka Band HD System with Reflector -

SKU
Agotado
$10,995.00
$10,995.00 - $10,995.00
$10,995.00
$7,500.19
$7,500.19 - $7,500.19
$7,500.19
Disponibilidad Agotado In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
! LTL Freight | Additional Shipping Charges May Apply

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Intellian's s6HD is a digital marine satellite TVRO (Receive Only) antenna system specially designed for DIRECTV services for all types of vessels (anchored or in transit) to automatically identify, track and capture satellite signals from the Digital Video Broadcasting (DVB: the International standard for digital TV transmissions) compatible satellites.

The s6HD, with its unique triple feedhorn, is designed to receive Ku-band and Ka-band signals from all three DIRECTV satellites simultaneously. This provides continual access to all DIRECTV programming, including all Standard (SD) and High Definition (HD) channels. The s6HD is also compatible with general Ku-band receivers such as DISH Network, Bell TV, and DIRECTV local channel programming services. Combined with the built-in WiFi enables simple one-touch upgrades using the Aptus App.

Multiple television sets onboard will be able to tune in to any program, independent of what other sets might be watching. Easy to install and operate, no other system better exemplifies Intellian's truly effortless plug-and-play experience. This breakthrough technology means that you can watch TV on board or at sea just like when you're at home.

Features:

  • Receives HDTV channels from 3 primary DIRECTV's Ka-band and Ku-band satellites located at 99xW, 101xW and 103xW
  • No delay time or changing the satellite signal, you can simultaneously watch every DIRECTV channels
  • Multi-feed LNB aligned with three DIRECTV satellites at sea even during harsh marine environments or high-speed cruising
  • Capable of receiving DIRECTV local channels broadcast from the two DIRECTV Ku-band satellites located 110xW and 119xW as well as Dish Network and Bell TV services
  • Plug and play, DIRECTV capable - easy operation
  • Single cable from the antenna to ACU for simple installation
  • Built-in SWM (Single Wiring Multi-switch) and two 8-way splitters in the default package enable 16-receiver connections as standard
  • Expandable up to 32 receivers and beyond. Fully capable of supporting DVR receivers
  • Advanced, superior low noise antenna performance
  • Multi-band (Ka-Ku) & Multi-feed (3 feeds) in one dome
  • Dynamic Beam Tilting (DBT) Technology
  • ACU with WiFi connection with Aptus App for simple system upgrades
  • WRS (Wide Range Search) algorithm
  • Automatic Skew Angle Control System
  • Built-in GPS and GPS NMEA 0813 interface
  • 3 Year Warranty - 2 Year Labor

Specifications:

  • Radome height: 28.3"
  • Radome diameter: 27.5"
  • Reflector diameter: 24"
  • Weight: 47.8 lbs (21.6 kg)
  • Operating temp. range: -13° to 131° F
  • Water ingress: IPX6
  • Approvals: CE / FCC
  • Reception frequency: Ka-Band (18~22GHz) / Ku-Band (10.7~12.75GHz)
  • Minimum EIRP: 47dBW
  • Azimuth range: 680º
  • Elevation range: +5° to +90°
  • Ship's motion roll: ±25º, Pitch ±15º
  • Roll & Pitch response rate: 45º / sec
  • Turning rate: 45º / sec
  • RF Output: Quad Output
  • Antenna Control Unit display: 2 line 20 character VFD module
  • Antenna Control Unit GPS interface: Built-in (NMEA 0183 GPS)
  • Antenna Control Unit power requirement: 9.0~30.0V DC
  • Antenna Control Unit power consumption: Typ. 30W, Max. 50W

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Brochure

Owner's Manual (11.16 MB)
