Home Shop By Fondeo, atraque y embarcación auxiliar Molinete y herrajes Torno Imtra LW415AN-1/4 Lofrans Tigres Horizontal Windlass 12V 1/4" HT Anodized

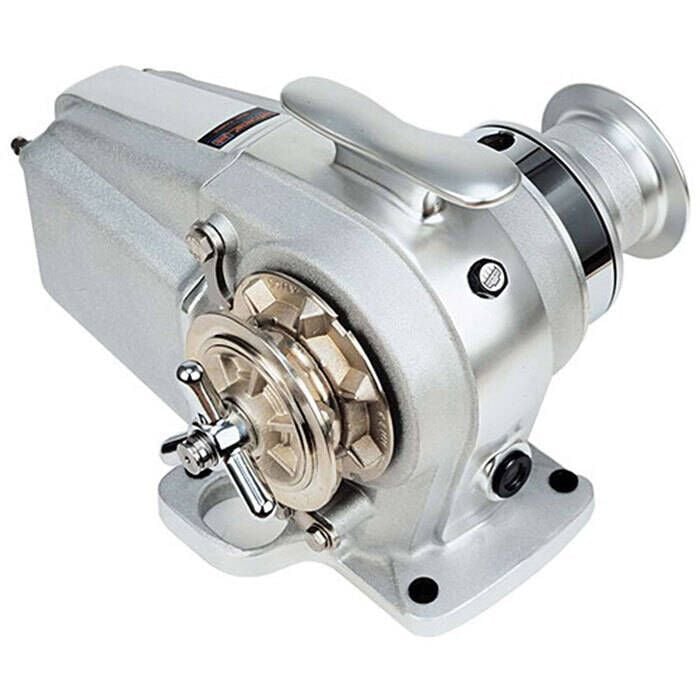

Imtra LW415AN-1/4 Lofrans Tigres Horizontal Windlass 12V 1/4" HT Anodized
por Imtra

Imtra LW415AN-1/4 Lofrans Tigres Horizontal Windlass 12V 1/4" HT Anodized

SKU
Agotado
$3,556.01
$3,556.01 - $3,556.01
$3,556.01
$3,200.45
$3,200.45 - $3,200.45
$3,200.45
Disponibilidad Agotado In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
! LTL Freight | Additional Shipping Charges May Apply

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Lofrans Tigres Windlass comes with a powerful reversing motor allowing the anchor to be released electrically as well as manually.

Features:

  • Series-wound electric motors - for higher power ratings, faster retrieval speeds, easy servicing, greater dependability and longer lasting service
  • Mounted in white or anodized housing above deck (model dependent)
  • Made of a special sea water-resistant light alloy
  • Convenient sight glass allows easy visual inspection of oil level
  • Rope drum can be used independently of gypsy
  • Horizontal windlasses put the motors on deck in sleek housings that provide a more traditional appearance; stand much closer when tailing
  • Unique aluminum collar design won't bind or corrode over years in a saltwater environment
  • Watertight control box
  • Foot switches (2)
  • Chainwheel with Manual override
    • Manual/Emergency mode (Handle is included)
  • Power-up (Reversible to power-down)
  • Useful top-mounted cleat

12V Windlass Specifications:

  • Line Speed at Working Load: 14 m/min
  • Max Line Speed: 33 m/min
  • Maximum Pull: 2,976 lbs (1,350 kg)
  • Weight: 62 lbs (28 kg)
  • Motor Wattage: 1,500W
  • Amps at Working Load: 160
  • Working Load: 418 lbs (190 kg)

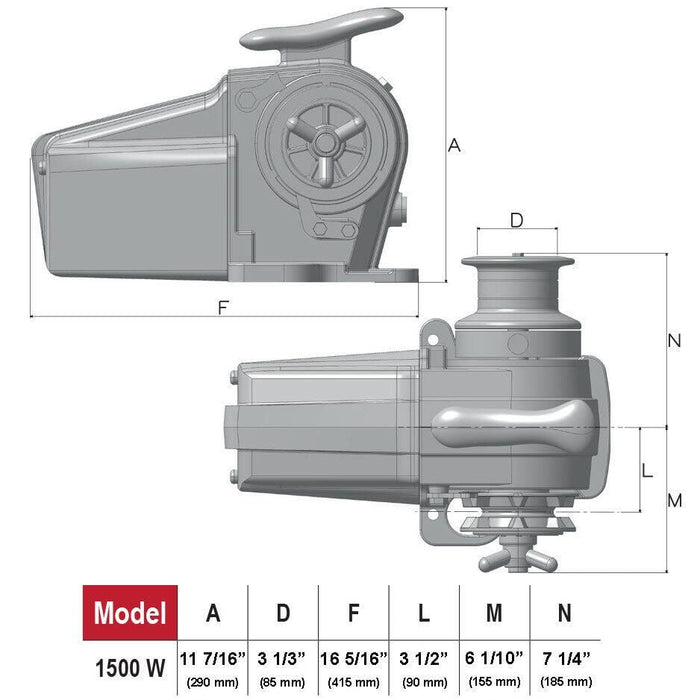

  • Dimensions (L x W x H): 16 5/16" x 13 3/8" x 11 7/16" (415 x 340 x 290 mm)

24V Windlass Specifications:

  • Line Speed at Working Load: 16 m/min
  • Max Line Speed: 33 m/min
  • Maximum Pull: 3,086 lbs (1,400 kg)
  • Weight: 62 lbs (28 kg)
  • Motor Wattage: 1,500W
  • Amps at Working Load: 90
  • Working Load: 429 lbs (195 kg)
  • Dimensions (L x W x H): 16 5/16" x 13 3/8" x 11 7/16" (415 x 340 x 290 mm)

Installation and User's Manual

Deck Template

Brand: Imtra

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Peso:
Dimensiones: x x
Código de barras:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
