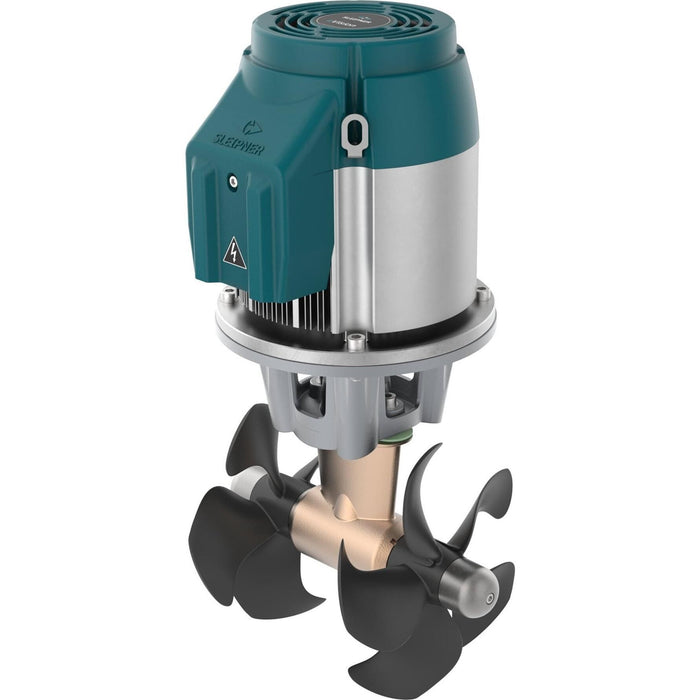

Imtra E130/250T-48V Sleipner E130/250T eVision DC Thruster 48V

The E130 is a highly efficient, compact, lightweight thruster suitable for boats between 42-63'. The integrated inverter for variable speed control makes for a quick and easy installation. E130 has the new 6-phase PMSM synchronous motor made explicitly for marine thruster use, delivering performance and runtime never seen before in a DC thruster.

S-Link:

• CAN-based control system used for communication between Sleipner products installed on a vessel
• Compact and waterproof plugs
• Keyed and color-coded connectors to ensure correct and easy installation
• Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install

Q-Prop:

• Noise reductions of up to 75% in controlled environments. Five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency
• Expected noise reduction in average installations: 20-40%

PRO Thruster System:

• Enables you to apply only the necessary power to complete your maneuver. Variable speed control eliminates the noise associated with standard on/off thrusters
• Includes a hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks
• Speed controlled thrusters are the best choice for joystick interaction

Ignition Protection:

• Compliant with ISO 8846 and ensure gasoline or other flammable fumes cannot enter or be ignited

Overheat Protection:

• On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating the thrust power to maintain temperature within safe levels

Flexible Installation:

• Thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel

Splash-Proof:

• This product is manufactured for installations in environments that may experience moist or occasional splashes

Galvanic Separation:

• Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents

Sealed Drive Lubrication:

• Thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion

Flexible Coupling:

• Protects the product's driveline by compensating for misalignment between the shafts of the electric motor and gearleg

Twin Propellers:

• Can provide more thrust than a single propeller system in the same tunnel diameter. Used in mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide

General Specifications:

• Power Source: Electric
• Ideal Vessel Class: Motor boat, Sail boat
• Ideal Vessel Size: 13-19 m / 42-63'
• Bow Capability: Yes
• Stern Capability: Yes
• Retractable Capability: No
• External Mounting Capability: No
• Tunnel Capability: Yes
• Certifications: CE/UKCA
• Weight: 29kg / 63lbs

24V Thruster Specifications:

• Voltage: 24V DC
• Power Output: 5.1kW / 6.8 hp
• Thrust at 24V: 130 kg / 284 lbs
• Thrust at 21V: 130 kg / 284 lbs
• Current Draw: 270A
• Min. Battery CCA (DIN): 270
• Min. Battery CCA (SAE): 513
• Min. Battery CCA (EN): 459
• Recommended fuse: ANL 250

48V Thruster Specifications:

• Voltage: 48V DC
• Power Output: 5.1kW / 6.8 hp
• Thrust at 48V: 130 kg / 284 lbs
• Thrust at 42V: 130 kg / 284 lbs
• Current Draw: 160A
• Min. Battery CCA (DIN): 160
• Min. Battery CCA (SAE): 304
• Min. Battery CCA (EN): 272
• Recommended fuse: ANL 125
