Cole Hersee M-449-BP | Fuse Block Term.10 Gang Carded
por Cole Hersee

Cole Hersee M-449-BP | Fuse Block Term.10 Gang Carded

SKU
Ahorre 42% Ahorre 42%
$55.49
$55.49 - $55.49
$55.49
$32.39
$32.39 - $32.39
$32.39
Disponibilidad In Stock In Store - Online Only 12 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

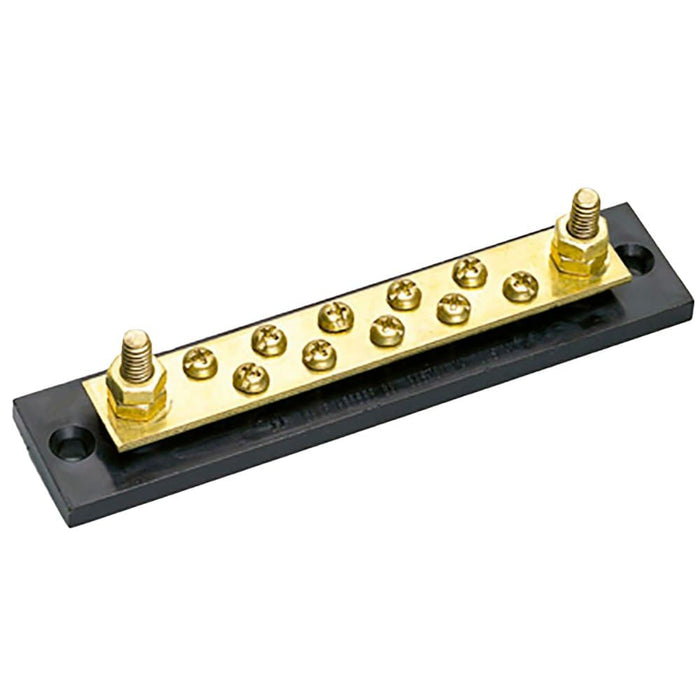

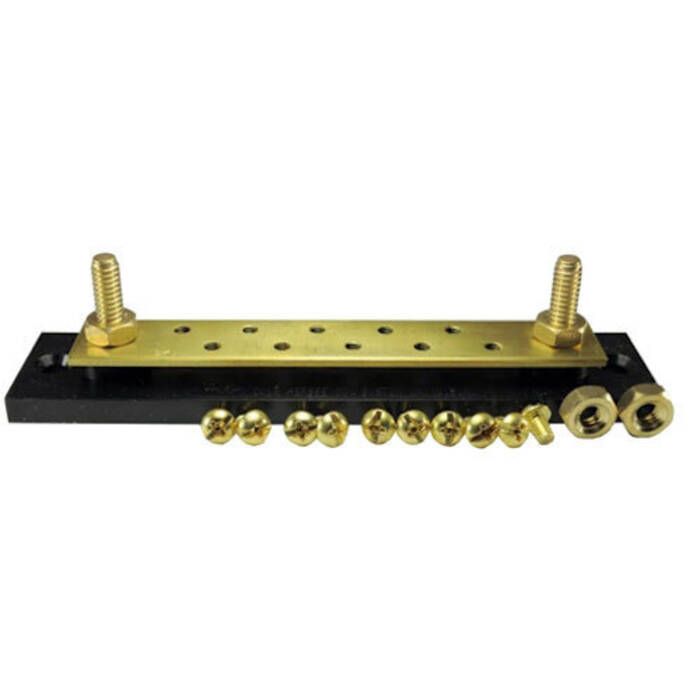

The Cole Hersee Terminal Block is an individual feed screw terminal block with barriers between the terminal pairs. The primary purpose of this style block is to allow a number of circuits to be connected/disconnected easily in a single location.

Features:

  • Protective insulator barrier strips between circuits
  • Manufactured from solid brass with an electroplated coating of tin
  • Compact size makes it easier to fit in tight spaces
  • Countersunk base mounting holes

Specifications:

  • Material:
    • Solid brass with an electroplated coating of tin
    • Molded plastic insulator base
  • Sold each

5 Circuit Specifications:

  • Maximum Volts: 36V DC
  • Maximum Amps: 50A
  • Number/Size of Terminals: 10 x #8-32 screws
  • Number/Size of studs: 2 x 1/4-20 studs
  • Mounting Holes: 2 for #10 countersink flathead screws
  • Dimensions (L x W x H): 5.75" x 1.31" x 0.67"

6 Circuit Specifications:

  • Maximum Amps: 20A per circuit
  • Number of circuits: 6
  • Number/Size of Terminals: 8 x #8-32 screws
  • Mounting Holes: 4 countersink holes for flathead screws
  • Dimensions (L x W x H): 4.33" x 1.31" x 0.67"

8 Circuit Specifications:

  • Maximum Amps: 20A per circuit
  • Number of circuits: 8
  • Number/Size of Terminals: 16 x #8-32 screws
  • Mounting Holes: 4 countersink holes for flathead screws
  • Dimensions (L x W x H): 5.46" x 1.31" x 0.67"

10 Circuit Specifications:

  • Maximum Amps: 20A per circuit
  • Number of circuits: 10
  • Number/Size of Terminals: 20 x #8-32 screws
  • Mounting Holes: 4 countersink holes for flathead screws
  • Dimensions (L x W x H): 6.59" x 1.31" x 0.67"
WARNING

This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.

For more information go to www.p65warnings.ca.gov.

Features & Specifications

  • Manufacturer Part Number: M-449-BP

Brand: Cole Hersee

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Peso:
Dimensiones: x x
Código de barras:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
