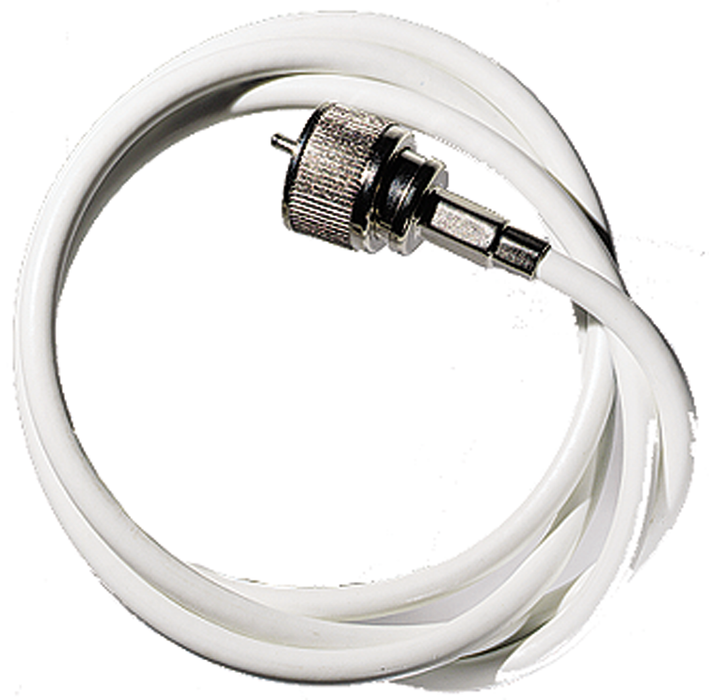

Ancor 189849 | RG8X Coaxial Cable Assembly (One End) White 50'
por Ancor

Ancor 189849 | RG8X Coaxial Cable Assembly (One End) White 50'

SKU
Agotado
$207.59
$207.59 - $207.59
$207.59
$100.55
$100.55 - $100.55
$100.55
Disponibilidad Agotado In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Premium tinned copper coaxial cable assemblies designed with Ancor adhesive-lined heat shrink to seal out moisture, provide strain relief, and fight corrosion. These cables deliver optimal signal protection and durability with no solder or special tools required. Ideal for SAT NAV and other demanding marine applications.

Features:

  • 96% tinned copper braid for optimum protection against signal loss
  • 100% tinned copper center conductor and braid
  • Adhesive lined heat shrink for moisture seal and strain relief
  • No solder or special tools required
  • Special low loss SAT NAV extensions
  • Available Configurations:
    • RG59U – Two ends assembled, 3'
    • RG8X – One end assembled, 50'

Specifications:

  • Insulation Material: PVC
  • Nominal O.D.: RG59U – 1/4" (6.4 mm), RG8X – 1/4" (6.4 mm)
  • AWG: RG59U – 23, RG8X – 20
  • Conductor Stranding: RG59U – Solid #, RG8X – 19/29
  • Braid Coverage: RG59U – 95%, RG8X – 96%
  • Weight per 1000': RG59U – 36 lbs (16.3 kg), RG8X – 40 lbs (18.1 kg)
  • Impedance (Ohms): RG59U – 75, RG8X – 50
  • Capacitance/Ft.: RG59U – 20.5 pF, RG8X – 26.0 pF
  • Attenuation per 100':
    • @50MHz: RG59U – 2.3 dB, RG8X – 1.3 dB
    • @100MHz: RG59U – 3.4 dB, RG8X – 2.0 dB
    • @1000MHz: RG59U – 11.5 dB, RG8X – 6.3 dB
  • Velocity of Propagation: RG59U – 66%, RG8X – 78%
WARNING

This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.

For more information go to www.p65warnings.ca.gov.

|

• 35 and 50 ft assemblies come with Ancor adhesive lined heat shrink to seal out moisture, provide strain relief and fight corrosion
• 96% tinned copper braid for optimum protection against signal loss
• Available with one end pre-assembled

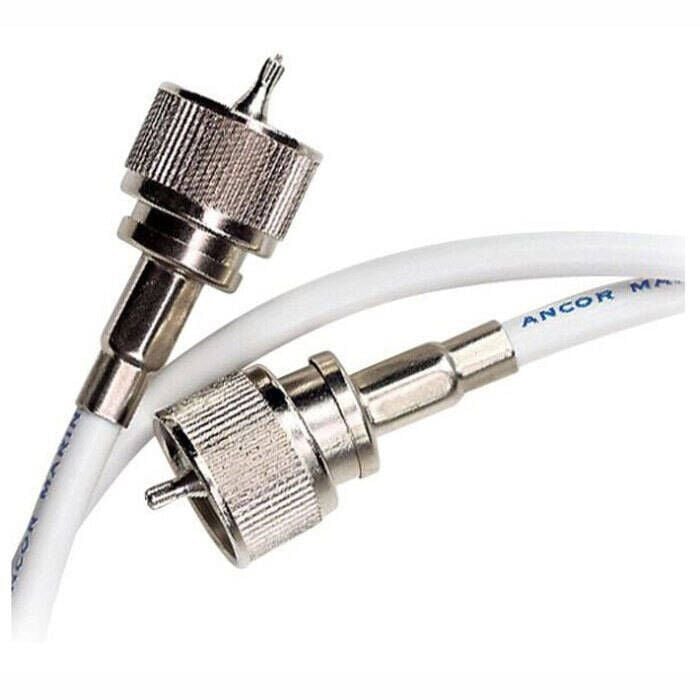

• Coaxial cable packages for RG58 and RG8X come with Ancor's new twist-on UHF plugs for easy installation - no solder or special tools required
• Special low loss SAT NAV extensions
• UV inhibited white jacket for longest life

Features & Specifications

  • Manufacturer Part Number: 189849

Brand: Ancor

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Peso:
Dimensiones: x x
Código de barras:
