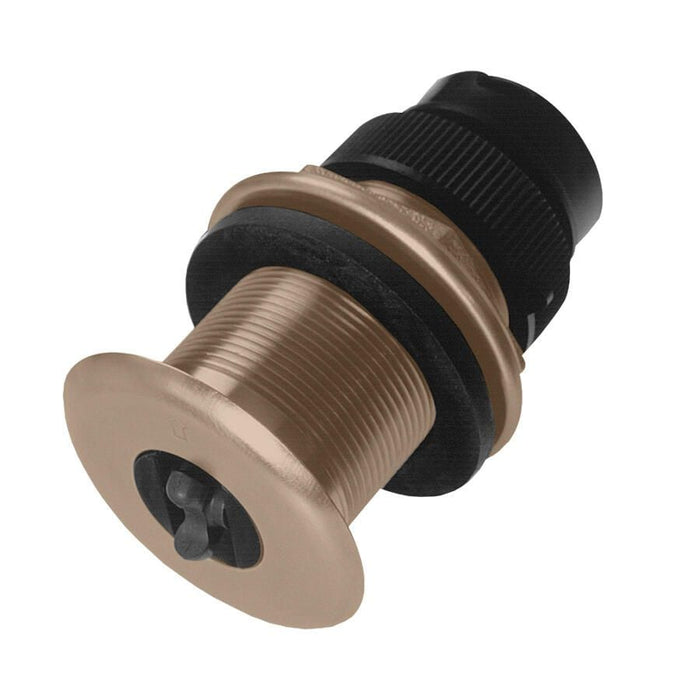

Airmar ST800BV-N2 ST800 NMEA 2000 Smart Speed & Temperature Sensor Bronze
por Airmar

Airmar ST800BV-N2 ST800 NMEA 2000 Smart Speed & Temperature Sensor Bronze

SKU
Ahorre 7% Ahorre 7%
$507.99
$507.99 - $507.99
$507.99
$469.99
$469.99 - $469.99
$469.99
Disponibilidad Available for Order In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

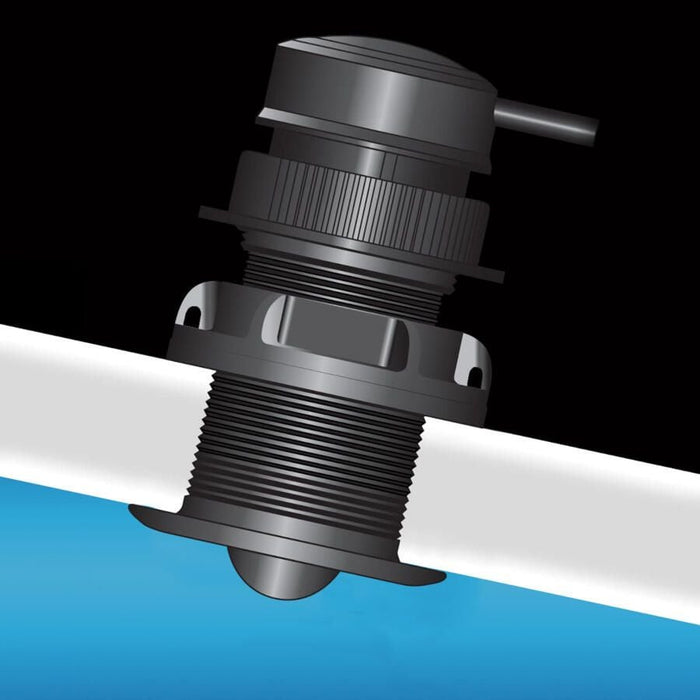

The ST800 speed and temperature sensor processes digital signals inside the thru-hull housing. Then this Smart™ Sensor sends data to a chart plotter, radar screen, or digital display in NMEA 2000® format. These low-profile units are nearly flush, minimizing drag with only 3/16" (5 mm) extending outside of the hull.

Features:

  • Speed and fast-response water-temperature sensing
  • Speed range from 2 to 45 knots (2 to 52 MPH)
  • NMEA 2000 output
  • Retractable insert in a low-profile housing with a water valve
  • Airmar's Smart™ Sensor technology

Specifications:

  • Material: Model dependent
  • Cable length: 20' (6 m)
  • Comm method: NMEA 2000®
  • Data rate: 1 hz
  • Display connector: N2 Micro
  • Functions: Speed/temperature

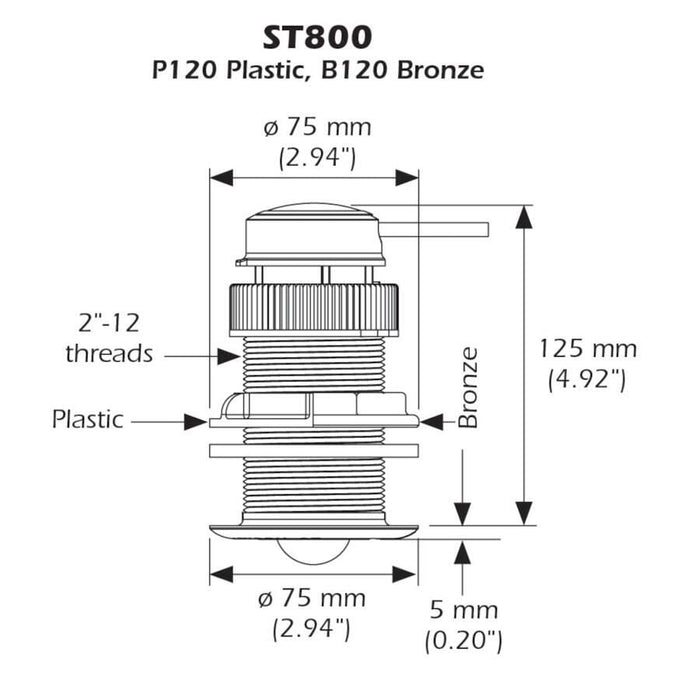

  • Hole size: 2" (51 mm)
  • Mounting style: Low profile thru-hull
  • Pulses: 17,000 p/nm (4.8 Hz per knot)
  • Retractable housing: Yes
  • Speed Range: 2 to 45 knots (2 to 52 MPH)
  • Speed type: Paddlewheel
  • Temperature accuracy: ±1.8° F (±0.5° C)
  • Tilted element: No
  • Usable shaft length: 2.25" (57 mm)
  • Voltage: 9 to 16V DC
  • Water temperature: 14° to 104° F (-10° to 40° C)
  • Weight: 2.8 lbs (1.3 kg)
