Zipwake 2021230 | Series S PRO SU-S PRO Servo Unit with 3 m Cable
Zipwake

Zipwake 2021230 | Series S PRO SU-S PRO Servo Unit with 3 m Cable

SKU
$765.60 - $765.60
$765.60
$765.60 - $765.60
$765.60
Availability In Stock In Store - Online Only 11 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

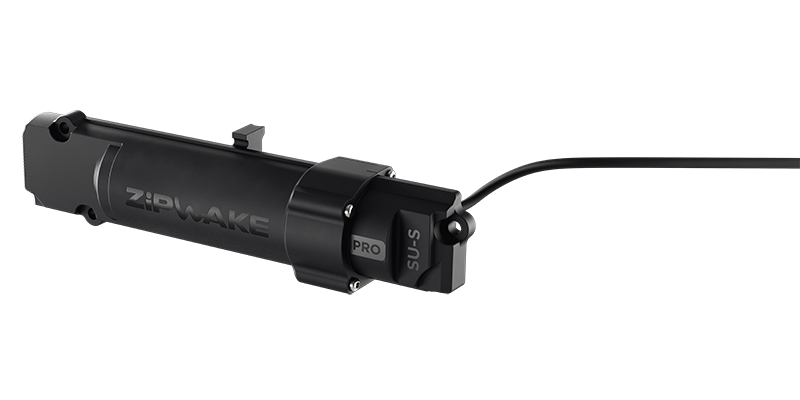

The Zipwake SU-S PRO is the submersible replacement servo unit for Series S PRO interceptors. Installed inside the interceptor, it drives the mechanism that converts electrical control into linear blade movement.

The brushless DC unit uses Hall sensors, is calibration-free and includes a rugged 3 m (10 ft) PUR cable with a self-sealing thru-hull fitting.

Product Information

Brand Zipwake
Series Series S PRO
Model SU-S PRO
Manufacturer Part Number 2021230
Product Type Servo Unit
Spare Part Yes

Key Features

  • Brushless DC motor with Hall sensors
  • Submersible and calibration-free design
  • 3 m (10 ft) PUR cable with self-sealing thru-hull fitting
  • Model-specific replacement application

Specifications

Operating Voltage 36 V DC
Power Consumption 35 W max
Operating Temperature 0°C to +40°C (+32°F to +104°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)
Waterproof Rating IP68 to 5 m (16 ft)
Compliance CE, FCC
Cable Length 3 m (10 ft), extendable to 6 m (20 ft)
Cable Material PUR
Connector M12 5-pin circular, 14.5 mm (0.57 in) diameter
Weight 0.7 kg (1.5 lbs)

Included

  • 1 × SU-S PRO servo unit
  • 1 × attached 3 m (10 ft) cable with thru-hull fitting

Compatibility

Series S PRO interceptors

Installation Notes

  • Confirm the exact interceptor model before replacement.
  • Servo cable extensions are limited to the Zipwake 1.5 m and 3 m models, with a 6 m (20 ft) total maximum.

Important Information

This is an individual spare servo unit, not a complete interceptor or trim-control system.
