Zipwake 2022023 | Series E PRO IT600-E PRO TUNNEL R800 Interceptor, 600 mm (23.6 in) with 3 m Cable
Zipwake

Zipwake 2022023 | Series E PRO IT600-E PRO TUNNEL R800 Interceptor, 600 mm (23.6 in) with 3 m Cable

SKU
$4,628.80 - $4,628.80
$4,628.80
$4,628.80 - $4,628.80
$4,628.80
Availability In Stock In Store - Online Only 2 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

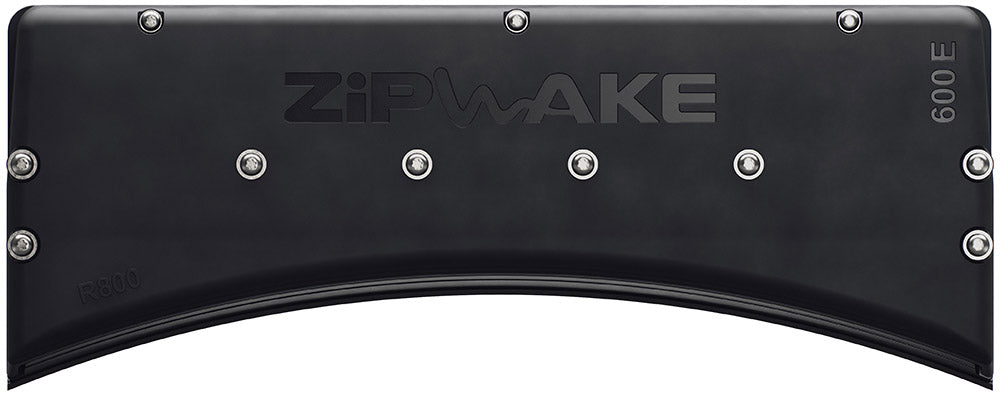

The Zipwake IT600-E PRO TUNNEL R800 is a tunnel, 800 mm radius interceptor for Series E PRO dynamic trim-control installations. Mounted at the transom, it provides the linear blade movement used by the system to manage running trim, pitch and roll.

This individual interceptor includes a 3 m (10 ft) PUR cable and cable cover. The thru-hull cable entry may be concealed behind the interceptor or routed above the waterline.

Product Information

Brand Zipwake
Series Series E PRO
Model IT600-E PRO TUNNEL R800
Manufacturer Part Number 2022023
Product Type Interceptor
Configuration Tunnel, 800 mm radius
Length 600 mm (23.6 in)

Key Features

  • Exact Series E PRO tunnel, 800 mm radius configuration
  • Submersible, calibration-free servo actuation
  • Concealed or above-waterline cable-routing options
  • Rugged marine cable with M12 circular connector

Specifications

Configuration Tunnel, 800 mm radius
Length 600 mm (23.6 in)
Weight 7.9 kg (17.4 lbs)
Servo Units Dual
Maximum Boat Speed 60 knots
Blade Stroke 60 mm (2.4 in)
Blade Rate 200 mm/s (7.9 in/s)
Operating Voltage 36 V DC
Power Consumption 35 W max per servo unit
Waterproof Rating IP68 to 5 m (16 ft)
Compliance CE, FCC
Cable Length 3 m (10 ft), extendable to 6 m (20 ft)
Cable Material PUR
Connector M12 5-pin circular, 14.5 mm (0.57 in) diameter
Operating Temperature 0°C to +40°C (+32°F to +104°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)

Included

  • 1 × IT600-E PRO TUNNEL R800 interceptor
  • 1 × attached 3 m (10 ft) cable
  • Applicable cable cover and mounting components

Compatibility

For a correctly configured Zipwake Series E PRO system with the matching control panel or integrator module and distribution unit.

Installation Notes

  • Verify the exact hull position, orientation, deadrise or tunnel radius before drilling.
  • The servo cable may be extended only with Zipwake 1.5 m or 3 m extension cables; total servo cable length must not exceed 6 m (20 ft).
  • Use the applicable Zipwake installation guide and drill template for this exact model.

Important Information

Sold as one interceptor, not as a paired kit box. Do not substitute another length, shape, side, radius or generation without exact system-design confirmation.
