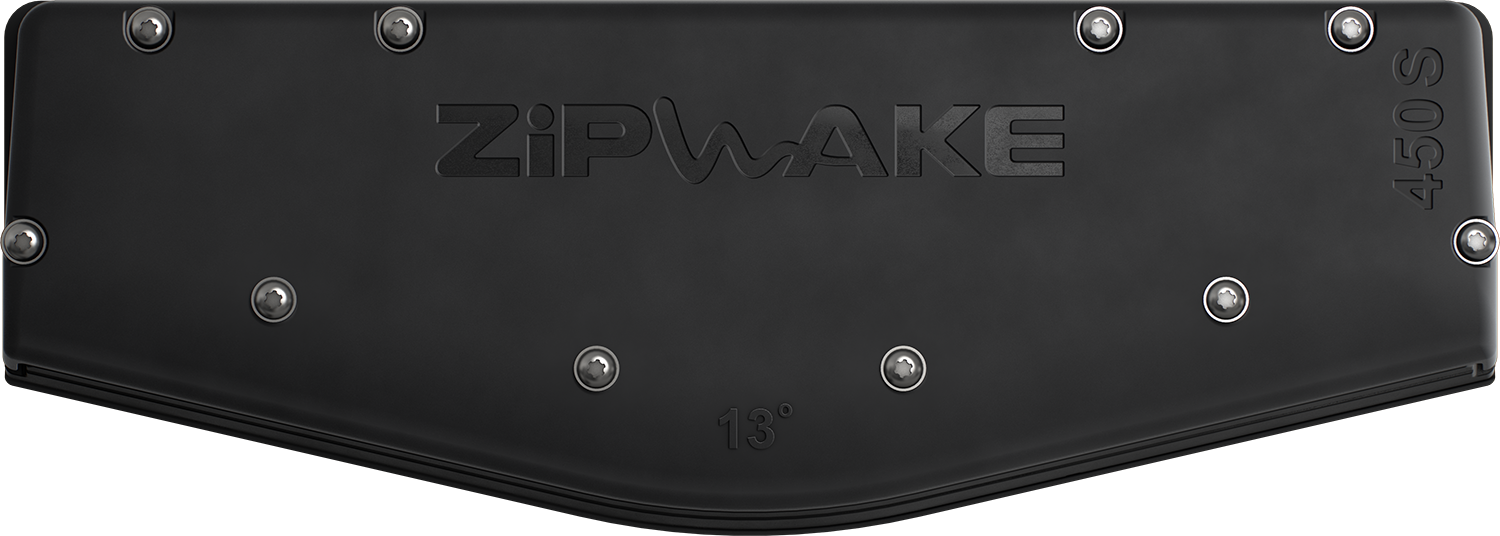

Zipwake 2021482 | Series S PRO IT450-S PRO V13 Interceptor, 450 mm (17.7 in) with 3 m Cable
Zipwake

Zipwake 2021482 | Series S PRO IT450-S PRO V13 Interceptor, 450 mm (17.7 in) with 3 m Cable

SKU
Sold out
$1,381.60 - $1,381.60
$1,381.60
$1,381.60 - $1,381.60
$1,381.60
Availability Out of stock Lead Time Typically Ships within 1 Week In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Zipwake IT450-S PRO V13 is a v-shaped, 13° deadrise interceptor for Series S PRO dynamic trim-control installations. Mounted at the transom, it provides the linear blade movement used by the system to manage running trim, pitch and roll.

This individual interceptor includes a 3 m (10 ft) PUR cable and cable covers. The thru-hull cable entry may be concealed behind the interceptor or routed above the waterline.

Product Information

Brand Zipwake
Series Series S PRO
Model IT450-S PRO V13
Manufacturer Part Number 2021482
Product Type Interceptor
Configuration V-shaped, 13° deadrise
Length 450 mm (17.7 in)

Key Features

  • Exact Series S PRO v-shaped, 13° deadrise configuration
  • Submersible, calibration-free servo actuation
  • Concealed or above-waterline cable-routing options
  • Rugged marine cable with M12 circular connector

Specifications

Configuration V-shaped, 13° deadrise
Length 450 mm (17.7 in)
Weight 3.2 kg (7.1 lbs)
Maximum Boat Speed 60 knots
Blade Stroke 30 mm (1.2 in)
Blade Rate 100 mm/s (4 in/s)
Operating Voltage 36 V DC
Power Consumption 35 W max
Waterproof Rating IP68 to 5 m (16 ft)
Compliance CE, FCC
Cable Length 3 m (10 ft), extendable to 6 m (20 ft)
Cable Material PUR
Connector M12 5-pin circular, 14.5 mm (0.57 in) diameter
Operating Temperature 0°C to +40°C (+32°F to +104°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)

Included

  • 1 × IT450-S PRO V13 interceptor
  • 1 × attached 3 m (10 ft) cable
  • Applicable cable covers and mounting components

Compatibility

For a correctly configured Zipwake Series S PRO system with the matching control panel or integrator module and distribution unit.

Installation Notes

  • Verify the exact hull position, orientation, deadrise or tunnel radius before drilling.
  • The servo cable may be extended only with Zipwake 1.5 m or 3 m extension cables; total servo cable length must not exceed 6 m (20 ft).
  • Use the applicable Zipwake installation guide and drill template for this exact model.

Important Information

Sold as one interceptor, not as a paired kit box. Do not substitute another length, shape, side, radius or generation without exact system-design confirmation.
