Marinco 1000 Series Wiper Motor 12V 1.5 Inch or 2.5 Inch Shaft 110 Degree
Marinco

Marinco 1000 Series Wiper Motor 12V 1.5 Inch or 2.5 Inch Shaft 110 Degree

SKU
$319.55 - $404.30
$319.55
$216.50
$216.50 - $236.99
$216.50
Availability In Stock In Store - Online Only 4 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Availability In Stock In Store 6 Online Only 7 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Choose a Shaft Size

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Marinco 1000 Series Wiper Motor is a fully sealed, waterproof 12V motor designed for reliable performance in harsh marine environments. Housed in UV-stabilized, high-temperature, high-impact thermoplastic, this motor delivers dependable operation while resisting corrosion and water intrusion.

This motor is capable of powering an 18 inch Deluxe arm and blade combination at sweep settings of 80 degrees or less, or a 16 inch Deluxe arm and blade combination at a sweep setting of 110 degrees. It is factory preset for either 80 degree or 110 degree sweep and can be adjusted to 50 degree, 65 degree, 80 degree, or 110 degree as needed.

Available configurations include:

  • 1000 Series Wiper Motor with 1.5 inch shaft
  • 1000 Series Wiper Motor with 2.5 inch shaft

Features:

  • 12 volt heavy-duty motor with anti-rotation drive shaft
  • Fully sealed waterproof housing
  • 0.625 inch diameter shaft (16 mm)
  • Knurled drive shaft with solid brass arm drive nut
  • Coast-to-park function with adjustable right or left self-parking
  • RF-shielded circuitry
  • Retail version includes 5 amp fuse and fuse holder (on/off switch not included)
  • Available shaft lengths of 1.5 inches or 2.5 inches (includes 0.5 inch knurled arm fitting)

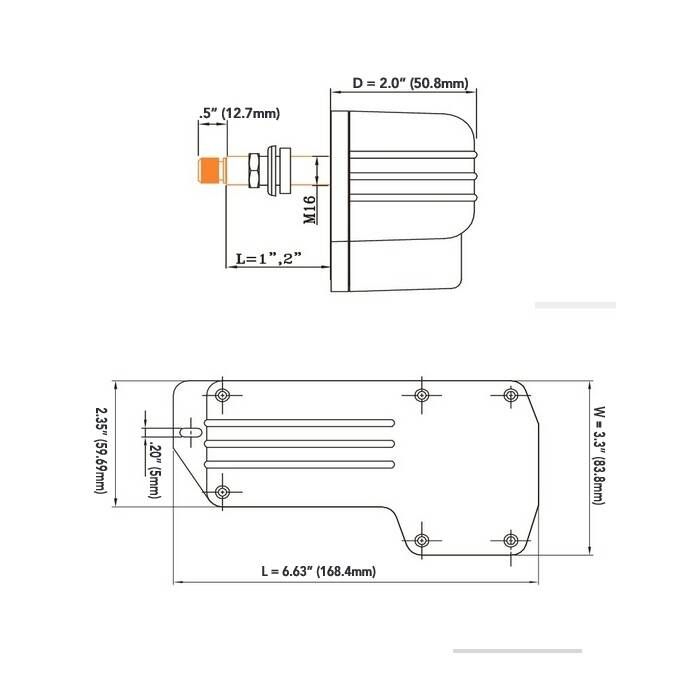

  • Approximate dimensions: 6.625 inches L x 3.375 inches W x 2 inches D
  • Weight: 1.75 lbs
  • Stall torque: 55 in-lbs (6.2 Nm)
  • Stall current: 9.8 to 10.0 amps
  • No-load current: 0.8 to 1.2 amps

Brand: Marinco
