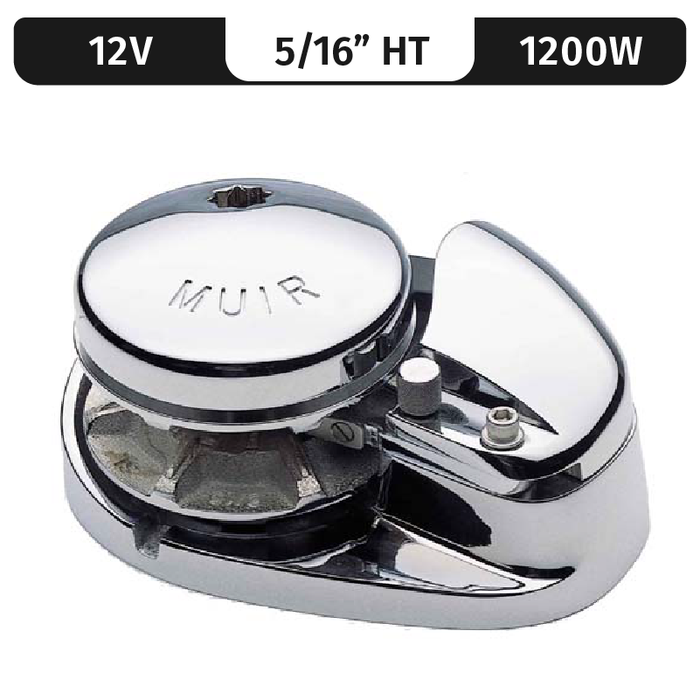

Muir M2200L12-5/16H | Storm 2200, 12V, Vert. Rope/Chain Windlass f/ 5/16"HT/BBB
Imtra

Muir M2200L12-5/16H | Storm 2200, 12V, Vert. Rope/Chain Windlass f/ 5/16"HT/BBB

SKU
Sold out
$3,800.00
$3,800.00 - $3,800.00
$3,800.00
$3,702.15
$3,702.15 - $3,702.15
$3,702.15
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
$ Oversized | Not Eligible For Free Shipping

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Muir Storm 2200, Vertical Powered Rope/Chain Windlass, Low Profile, 12V, 1500W, 316 Stainless Steel

Standard Equipment:

Two (2) Covered Footswitches

Watertight Dual Direction Solenoid Box

Rope Chain Management System

Clutch Handle

Replaces old item number MSS2200R12E

Features

  • The Self-Aligning QuickFit Gearbox Coupler allows the gearbox and motor to be installed directly onto the shaft in any radial position and alleviates installation problems due to uneven deck thickness. This is helpful when installing a windlass onto a deck with any camber to the deck surface. QuickFit connection simplifies installation.

Specifications

Brand Muir
Manufacturer Part Number M2200L12-5/16H
Motor Wattage 1500W
Version Low-Profile
Warranty 5 years
Vessel Length 38-48 ft (12-15m)
Standard Equipment RCMS, 2 x Footswitches, Solenoid Control Box, Handle
Max Load 2420 lb (1100 kg)
Approximate Boat Size 40 - 49 ft.
Work Load 550 lb (250 kg)
Amperes @ Working Load 150
Amps Work Load 120
Max Line Speed 98 ft/min (30 m/min)

Brand: Imtra
