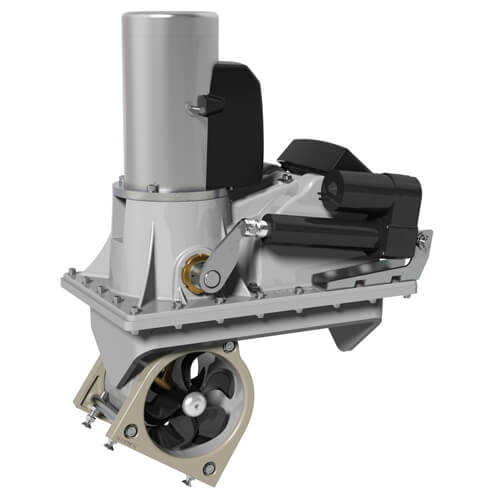

Imtra SRVP100/185T-1V | SRVP100/185T Vert retracting thruster kit
Imtra

Imtra SRVP100/185T-1V | SRVP100/185T Vert retracting thruster kit

SKU
Sold out
$13,070.00
$13,070.00 - $13,070.00
$13,070.00
$9,618.69
$9,618.69 - $9,618.69
$9,618.69
Availability Out of stock Lead Time Typically Ships within 1 Week In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Sleipner's (Side-Power) range of proportional speed control DC thrusters allow you to select the power you need for precise boat movements in any weather and sea conditions. The unique "hold" feature allows you to keep the boat in position at dock or in locks.

Other items to consider when purchasing a new thruster:

Bow Tunnel or Stern Tunnel

Control Panels and Accessories

Radio Remote Controls (on-off only)

AutoMainswitch or manual Battery Switch and Fuse & Fuseholder

S Link Control Cabling (see S-link overview)

Ask us about an SEP Upgrade for existing On-Off thrusters today!

Features

  • Features & Benefits
  • Plug and Play S-Link two-way communication control system
  • Compact dimensions
  • Fast deployment time
  • Hatch deploys straight out of hull for minimal cutout gaps, creating minimal drag when thruster is retracted
  • Pressure sensor on door automatically retracts thruster when boat speed is too high
  • Thruster lock out: thruster is disabled when fully or partially retracted
  • Performance
  • Propulsion technology know-how maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing reducing turbulence in the tunnel and maximizing flow
  • Installation
  • Compact sized units to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible battery terminals
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allowing quick and simple changing
  • Sealed gearleg so no messy oil fill-ups needed during installation
  • Safety and Reliability
  • Overheat thermal switch on electric motor stops operation, preventing damage to the electric motor
  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Self-locking high pressure contacts extend solenoid life and improve current conduction
  • Extra insulation to help prevent wear and heat damage of internal wiring
  • Non-conductive and self-extinguishing solenoid covers
  • Control panels have child-safe on system and timed shut down from last use
  • 2 Year limited warranty

Specifications

Brand Imtra
Manufacturer Part Number SRVP100/185T-1V
Thrust @ 10.5VDC 220 lbs (100 kg)
Thrust @ 12VDC 256 lbs (116 kg)
Typical Boat Size 40-55' (12-17 m)
Propulsion System Twin
Tunnel Diameter (I.D.) 7.3" (185 mm)
Approximate Boat Size 46 - 65 ft.
Power @ 10.5VDC 10.5 hp (7.8 kw)
Recommended Fuse Size 500 Amps (SMANL500)
Minimum Battery Capacity 1425 CCA SAE

Brand: Imtra
