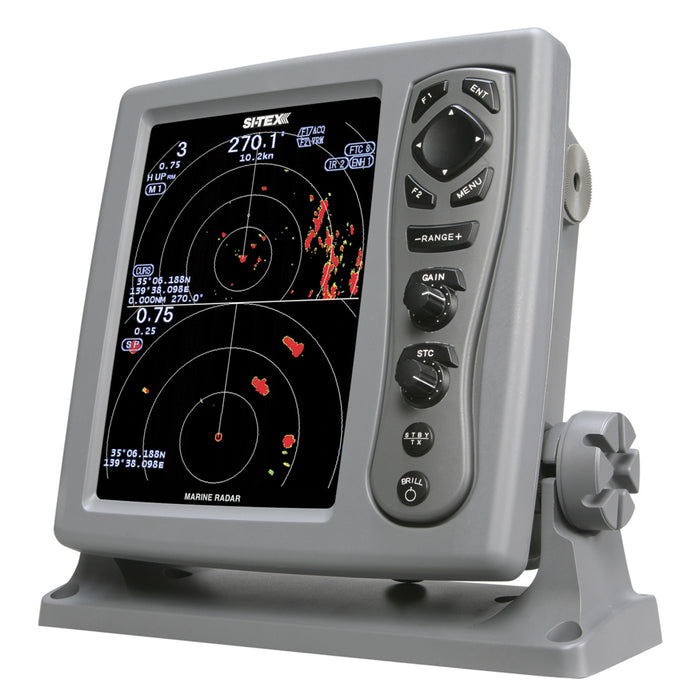

SI-TEX 8.5" Color LCD Radar w/4kW Output - 1/16-36nm Range - 25" Radome
SI-TEX

SI-TEX 8.5" Color LCD Radar w/4kW Output - 1/16-36nm Range - 25" Radome

SKU
Save 15% Save 15%
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
$2,972.75
$2,972.75 - $2,972.75
$2,972.75
Availability In Stock In Store - Online Only 1 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

8.5" Color LCD Radar with 4kW Output - 1/16-36nm Range - 25" Radome

SI-TEX's T-941 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.

Features:

  • It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets
  • Radome: 4kW, 36NM, 25" Display
    • Brilliant 8.4" color LCD daylight viewable display
    • 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
    • True-color radar feature displays echoes in different colors depending on signal strength
    • The real-time presentation offers smooth movement as bearing changes
    • The T-941 has two-speed antenna rotation for tracking of quick-moving, close-in targets:
      • 48 RPM
      • 24 RPM (Requires 24 Volt DC input)
    • Selectable range scales from 1/16 NM
    • Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
    • Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
    • RGB output for connecting (2) optional external monitors
    • Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC
    • Built-in flush mounting system makes installation easy
    • All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
    • Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously
      • Monitor a nearby buoy and a far off island at the same time
    • True Trail function clearly identifies moving targets from stationary targets
    • The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
    • Accepts CCD camera input, to display split-screen Radar and Camera
      • Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings
    • Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets
    • Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
    • Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitter
      • This information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention

Specifications:

Antenna Unit:

  • Scanner 25" Radome
  • Peak Power Output 4kW
  • Output Frequency 9410 + 30MHz
  • Beam Width:
  • Horizontal 3.9°
  • Vertical 25°
  • Rotation 24 or 48 rpm (48 rpm; 24V DC or more
  • Pulse Width .08, 0.15, 0.3, 0.5, 1 use
  • IF Frequency 60 MHz
  • Range Accuracy Better than 8m
  • Min. Detecting Distance: Within 25m

Display Unit:

  • Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels)
  • Off Centering Max 66%
  • Display Modes Heads up, North up*, Course up* WPT up**, True motion*
  • Indication System PPI, PPI/PPI, PPI/NAV
  • Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48)
  • Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12
  • Bearing Accuracy Better than + 1°
  • Video Level 8 colors
  • Distant Unit (VRM unit) NM, SM, KM
  • Alarms Entry or Breakaway (In and Out)
  • Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input
  • AIS Interface Option (100 targets)
  • ATA Option (Auto/Manual, 50 targets)
  • Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
  • Output Data Format TTM, TLL
  • Power Requirements 10.8 - 31.2 Volt DC
  • Power Consumption 55 Watt
  • Water Protection
    • Display: IPX 5
    • Antenna CFR 46 IPX

What's In The Box?

  • Display Unit MRD-103 with hardcover
  • Connecting Cable 242J158055A -10 M with 2 connectors
  • DC Power Cable CW265-2M 2m
  • CCD Camera Cable CW-405-0.3M
  • Operation manual, Quick reference
  • Fuse (8A)

Brand: SI-TEX
