Shadow-Caster LED Lighting SCM-LC-N2K | Light Commander NMEA 2000 6 Zone Lighting Controller (NMEA 2000 Only No MFD
Shadow-Caster LED Lighting

Shadow-Caster LED Lighting SCM-LC-N2K | Light Commander NMEA 2000 6 Zone Lighting Controller (NMEA 2000 Only No MFD

SKU
Save 2% Save 2%
$499.99
$499.99 - $499.99
$499.99
$489.00
$489.00 - $489.00
$489.00
Availability In Stock In Store - Online Only 4 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

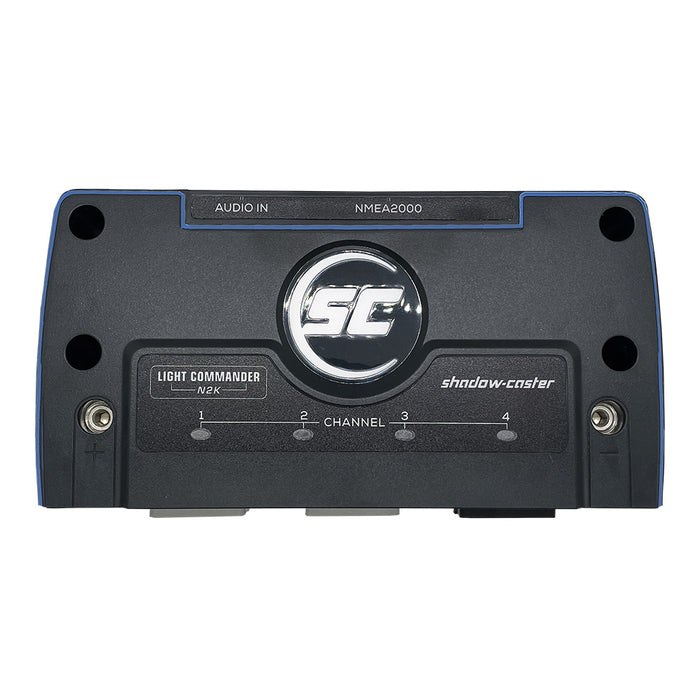

Light Commander NMEA 2000 6-Zone Lighting Controller (NMEA 2000 Only - No MFD Network or Wi-Fi/Bluetooth Connectivity

Discover the SHADOW-CASTER® Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.

Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes—from color change, fade, rotation, and strobe to music sync effects—offering versatility and customization to illuminate a boat like never before.

Encased in a durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for. Elevate the marine lighting experience with the Light Commander NMEA 2000—where technology meets functionality and style.

**Please note that SCM-LC-N2K is a multi-zone lighting controller for NMEA 2000 only connectivity. The is NOT compatible with Garmin, Simrad, Lowrance, B & G, Raymarine, and Furuno MFDs

Key Features:

  • NMEA 2000 Backbone
  • Global control for all lighting
  • Up to 6 separate zones of lighting control – expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
  • 6 “Instant ON” switch inputs for enabling lights without MFD control
  • Supports RGB and RGBW lighting

Additional Features:

  • IP67 Water resistant housing with waterproof connections
  • Deutsch style IP67 rated connections, for clean OEM installations
  • “Digitally fused” over current protection circuits, 15amps/channel (X4)
  • Backlit logo and zone indicator LEDs to indicate functions and operation
  • Built in 3.5mm female audio port and microphone for music sync input

Interfacing TO THE Light Commander

NMEA 2000

With the release of industry-standardized NMEA 2000 lighting control protocols, plug-and-play lighting controller compatibility is here. Simply connect to the NMEA 2000 backbone with the SCM-LC-N2K.

SCM-ZC-Remote Control

Use the SHADOW-CASTER® backlit Zone Controller keypad (SCM-ZC-REMOTE) with any Light Commander model to instantly control 4 zones of lighting through a backlit keypad.

Specifications:

  • IP67-rated enclosure
  • Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
  • 15 amps per RGB(W) zone, 60 amps max
  • 10 to 30V input range
  • Direct 3.5mm female audio input for music synchronization
  • Music sync created by onboard DSP (Digital Signal Processing)
  • Shadow-NET® bus allows system expandability
  • Digital power protection set at 15amps/channel
  • Built in switch inputs for instant on lighting for each zone
  • 24-bit color support and gamma correction for universal color support
  • Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)


Features & Specifications

  • Manufacturer Part Number: SCM-LC-N2K
  • UPC: 8500243422314
  • Dimensions: 9 × 6 × 4
  • Category: Lighting | Accessories

Brand: Shadow-Caster LED Lighting

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet SDWSCM-LC-N2K Quick Guide ⬇ View Here
Guide SDWSCM-LC-N2K Installation Guide ⬇ View Here
