Ronstan RF25109HL | Series 20 BB Block Single Becket Option Lashing High Load
Ronstan

Ronstan RF25109HL | Series 20 BB Block Single Becket Option Lashing High Load

SKU
Sold out
$82.25
$82.25 - $82.25
$82.25
$69.95
$69.95 - $69.95
$69.95
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

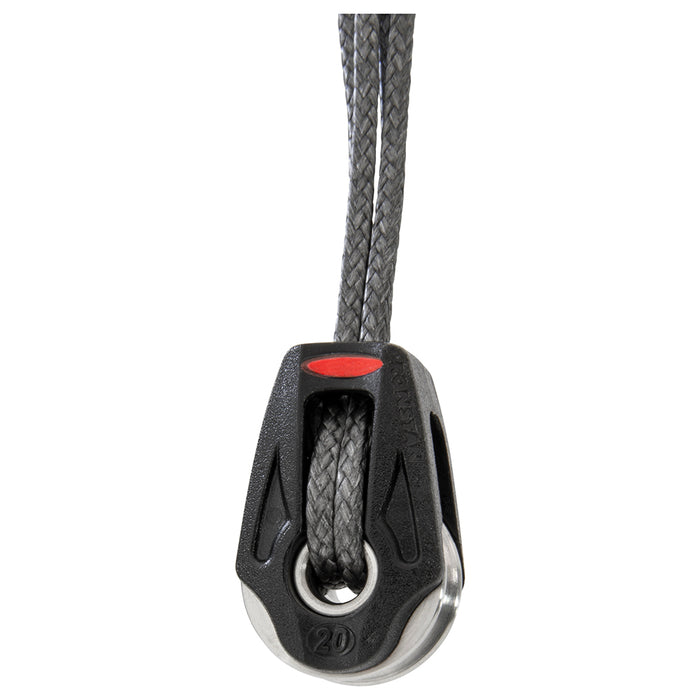

Ronstan Series 20 Bb Block Single Becket Option Lashing High Load

Series 20 BB Block Single Becket Option Lashing High Load

Features:

  • Suits up to 4mm (5/32”) lashing
  • Supplied with 750mm (30”) x 2mm (3/32”) diameter,
  • Dyneema single braid lashing line



Manufacturer Part Number: RF25109HL
More Information
Special Shipping Message Free Two Day Shipping*
Manufacturer Part Number: RF25109HL
Product Video:


|

Ronstan's Series 20 High Load Lashing Block is specifially designed for very high load applications where standard ball bearing and all purpose blocks are not adequate.

Featuring Grade 2205 Stainless Steel sheave and ball race and Grade 316 stainless steel ball bearings for high static and dynamic loads. This block is ideal for vang, halyard, backstay and other highly loaded lines.

Features:

  • Glass fiber cheeks, stainless steel sheave, race and ball bearings
  • Max line diameter 1/4" (6mm)
  • Capable of high Dynamic and Static loads to 660 lbs (300kg).
|

This block, specifically designed for modern high-performance foiling, skiff and multihull classes, suits any applications where high loads are experienced.
Typical applications include high load vang purchase systems on Moth and Lasers, halyards on skiffs; cunninghams, outhauls and backstay purchase systems just to name a few.
Such a high load rating is unique for a block of this size, its impressive strength-to-weight ratio is a result of clever design and the selection of the right materials, such as glass fibre reinforced nylon cheeks, a high-grade stainless-steel sheave, ball race and balls.
• Suits up to 4mm (5/32") lashing
• Supplied with 750mm (30") x 2mm (3/32") diameter,
• Dyneema single braid lashing line
• Sheave: high compression strength carbon black Acetal
• Frame:/Cheeks: Toughened, glass fibre reinforced Nylon
• Load straps and ball bearings: Grade 316 stainless steel
• HHL sheave and bearing race: Grade 2205 stainless steel, Balls: Grade 316
• Frame/Cheeks: Toughened, glass fibre

* Block must be lashed through hub. The supplied lashing line must have three passes through head and hub to achieve rated load. MWL & BL are dependent on the strength of lashing. Knots, splices, stitching will generally have a lower BL than the line itself.

Features & Specifications

  • Manufacturer Part Number: RF25109HL

Brand: Ronstan

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
