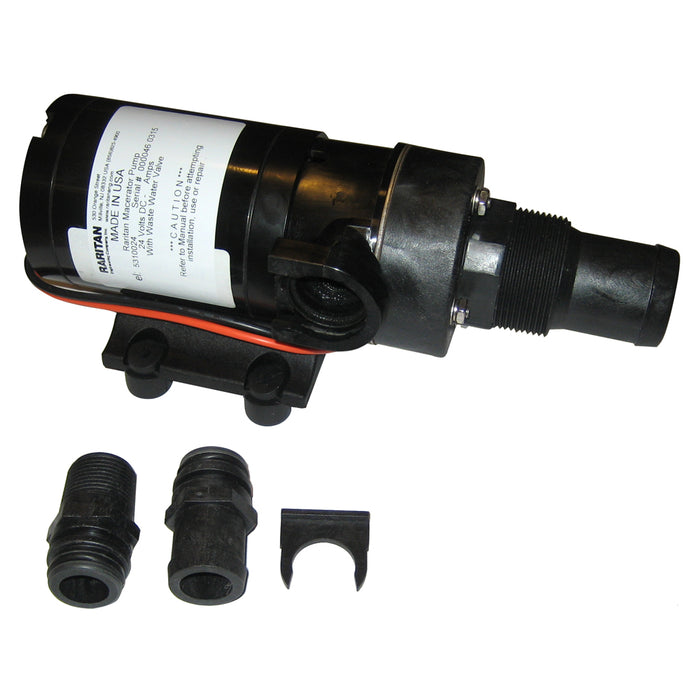

Raritan Macerator Pump - 24v w/Barb Adapter
Raritan

Raritan Macerator Pump - 24v w/Barb Adapter

SKU
Sold out
$494.45
$494.45 - $494.45
$494.45
$341.15
$341.15 - $341.15
$341.15
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Macerator Pump - 24v w/Barb Adapter

Macerator pumps are the key to a number of important chores on a boat! The most important is to work when it is needed. While macerator pumps are generally used to empty holding tanks they can also be used to empty fish boxes. Raritan had two goals in mind when it set out to design a better macerator. The first is the run dry time because as most owners know when you flip the switch to begin emptying the tank you don’t always remember to turn it back off and the number one enemy of any macerator pump is running without liquid going thru it. Nothing destroys a pump faster than running dry.

Raritan developed a plastic housing and impeller combination that resists burnout longer than any macerator on the market today. To try and prevent these things from ruining a trip Raritan also designed the Smart Macerator Control which has several key design features. Probably the most relevant is the ability to shut the pump off as soon as it senses it is running dry. An all to common problem with macerators is the fact they sit for extended periods of time so the macerator control is also designed to “jog” the impeller once a week when power is on. This “jog” prevents the impeller from taking a shape and helps to ensure the pump will empty the tank when requested.

Features:

  • All stainless steel bolts to avoid corrosion problems
  • Spring loaded Viton shaft seal is used to prevent premature leaks
  • Proprietary rubber impeller compound allows longer dry running time

Specifications:

  • Pump: Self priming Flexible rubber impeller with stainless steel wearplate
  • Impeller: Raritan Proprietary Nitrile compound
  • Blade: Stainless steel double cut
  • Seal: Viton Lip with 316 SS spring and case
  • Motor: Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, Powder coated housing with sealed ball bearing
  • Ports: Inlet: 1-1/2" hose barb & 1-1/2" NPT Male
  • Outlet: 3/4" MNPT
  • Lead wires: 14 GA, Red and black
  • Weight: 5 lbs.
  • Approvals: Ignition protected, ISO 8846

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brand: Raritan

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet RAR5310024 Quick Guide ⬇ View Here
Manual RAR5310024 Owner's Manual ⬇ View Here
Brochure RAR5310024 Brochure ⬇ View Here
