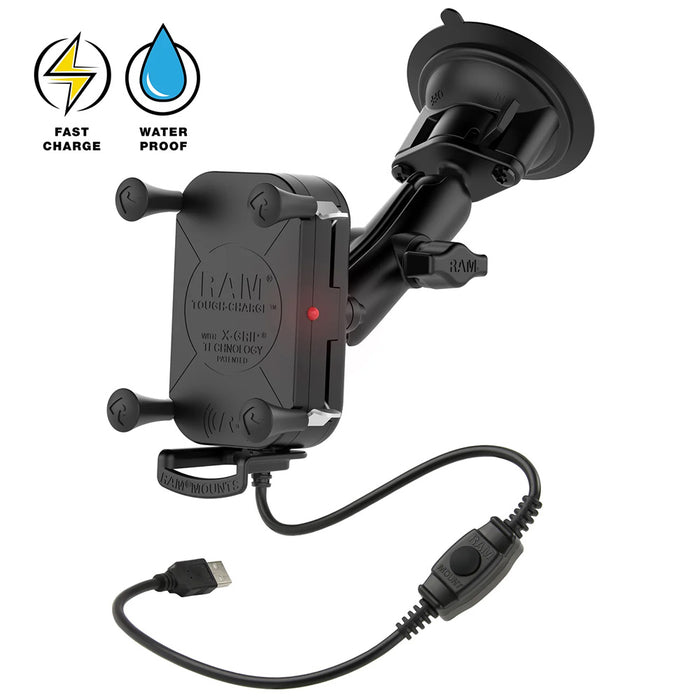

RAM Mounting Systems RAM-B-166-UN12W-1 Tough-Charge 15W Wireless Charging Suction Cup Mount
RAM Mounting Systems

RAM Mounting Systems RAM-B-166-UN12W-1 Tough-Charge 15W Wireless Charging Suction Cup Mount

SKU
Save 10% Save 10%
$224.49
$224.49 - $224.49
$224.49
$203.00
$203.00 - $203.00
$203.00
Availability In Stock In Store - Online Only 13 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

RAM Tough-Charge 15W Wireless Charging Suction Cup Mount

The RAM Tough-Charge with X-Grip Technology is the world's first patented, universal, waterproof wireless charging cradle for phones. Designed with spring-loaded RAM X-Grip Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi-compatible wireless phone charging.

All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed in. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.

In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM Tough-Charge with X-Grip Technology wireless charging suction cup kit includes a B-size diamond base featuring a 1" rubber ball, a medium-length double socket arm, and a RAM Twist-Lock suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Features:

  • Waterproof Qi-compatible wireless phone charging cradle features spring-loaded RAM X-Grip technology and 15W maximum output
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM mounts are backed by a lifetime warranty, and RAM electronics are backed by a 1-year warranty with proof of purchase required.

Hardware Included:

  • (1) Safety Tether
  • (1) Glue Tube for Rubber Caps
  • (1) Cradle Leg
  • (1) Cradle Leg Cover
  • (1) Silicon sleeve for USB waterproof connection
  • (1) 1.2 Meter USB Extension Cable
  • (4) Small zip ties
  • (2) Large zip ties

Specifications:

  • Holder Dimensions Width Range (inch): 2.375" - 3.25"
  • Holder Dimensions Depth Range (inch): .875" max
  • Suction Size (inch): 3.3" Diameter
  • Socket-to-Socket-Length (inch): 3"
  • Ball Size (inch): B Size (1")
  • Weight Capacity (Standard Use): 2 lbs
  • Weight Capacity (Heavy-Duty Use): 1 lb
  • Materials: Marine-grade aluminum, high-strength composite, stainless steel
  • Weight: 1.58 lb.
  • Maximum Case Thickness: 6mm

Power Specifications:

  • Input Power: 5V-2A; 9V-1.67A
  • Output: 15W
  • Conversion Efficiency: 85% Max
  • Working Frequency: 110-205KHZ
  • Product Standard: WPC v.1.2.4
  • Compatibility: Compatible with QC2.0/QC3.0 power supplies & Qi Compatible
  • Input Connector: USB Type-A Male
  • Input Cable Length: 20 in. with optional 1.2M extension cable
  • Operating Temperature: 0°C to +37.7°C
  • Compliance: Over-current protection, short circuit protection, and over-temperature protection
