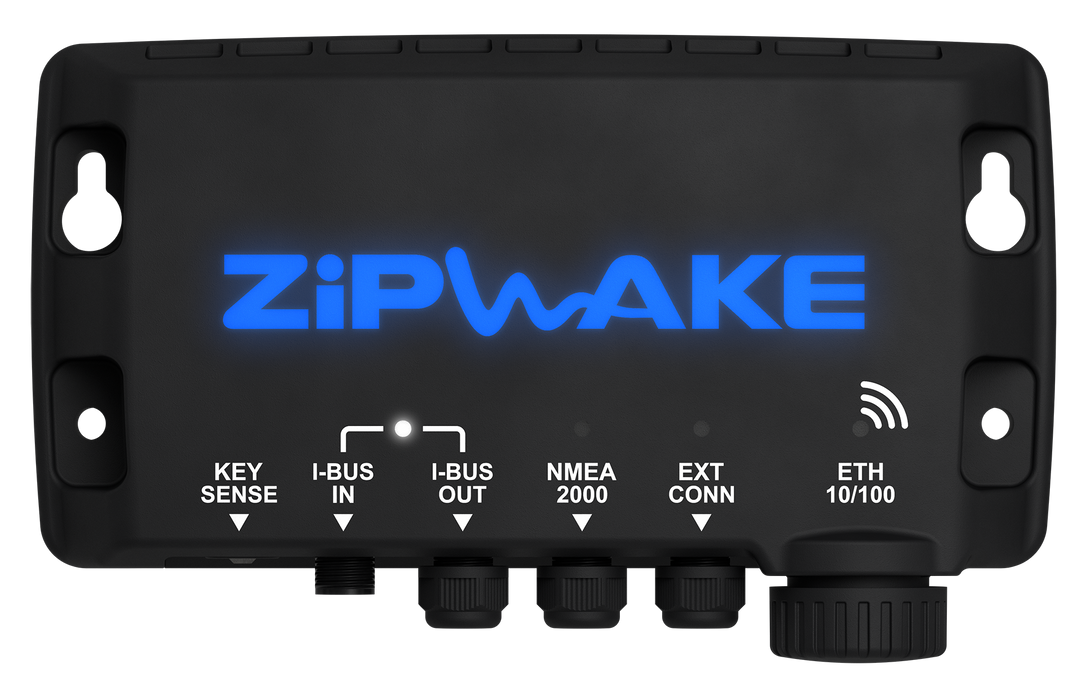

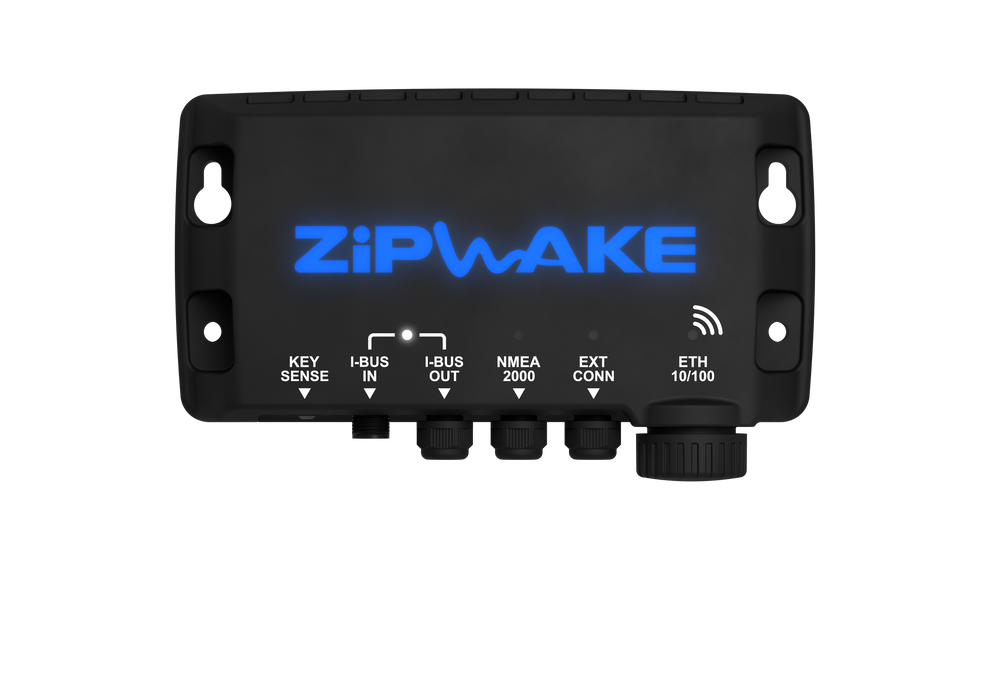

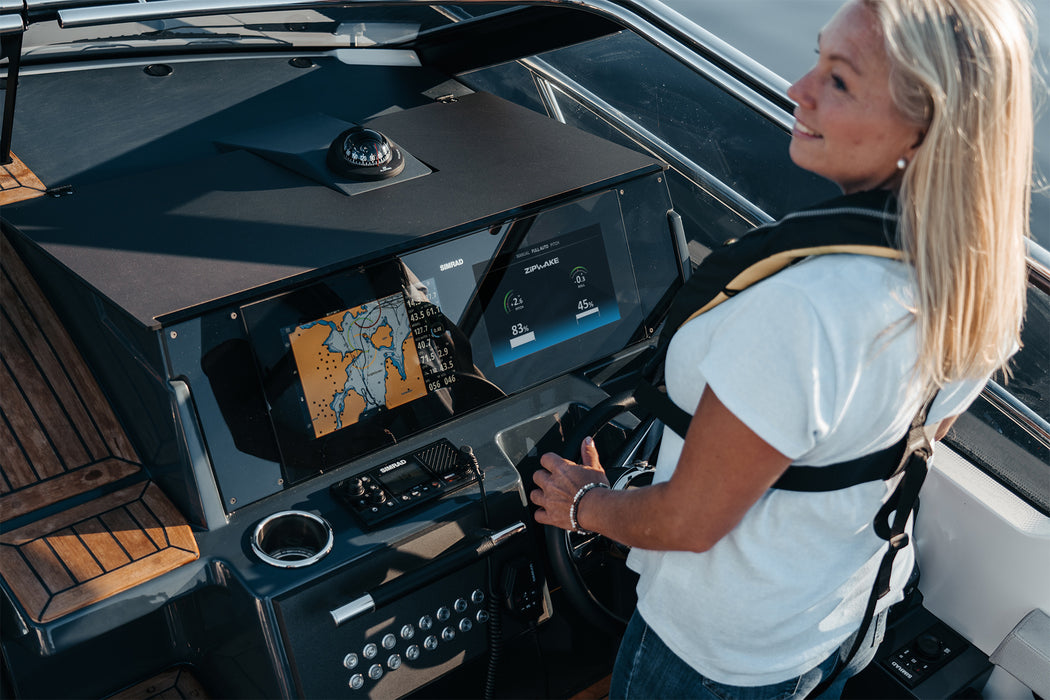

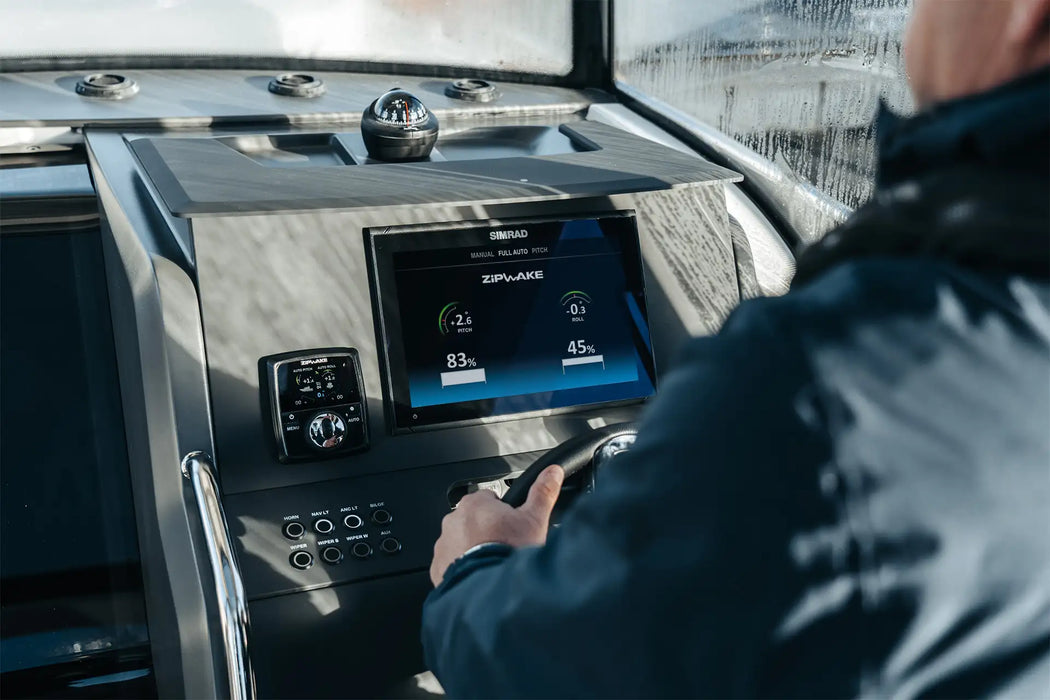

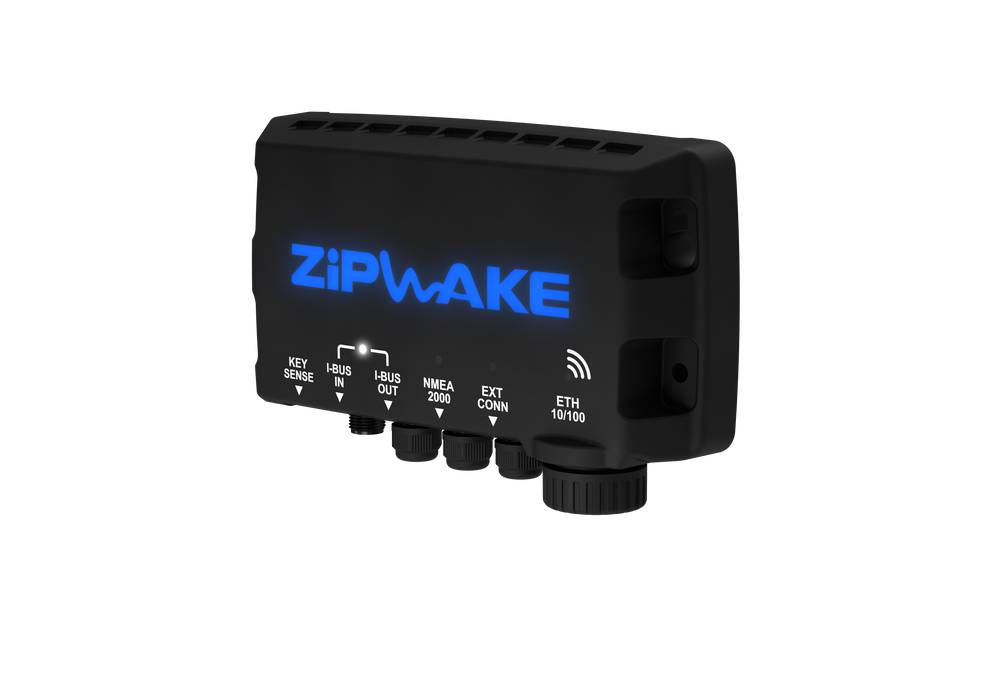

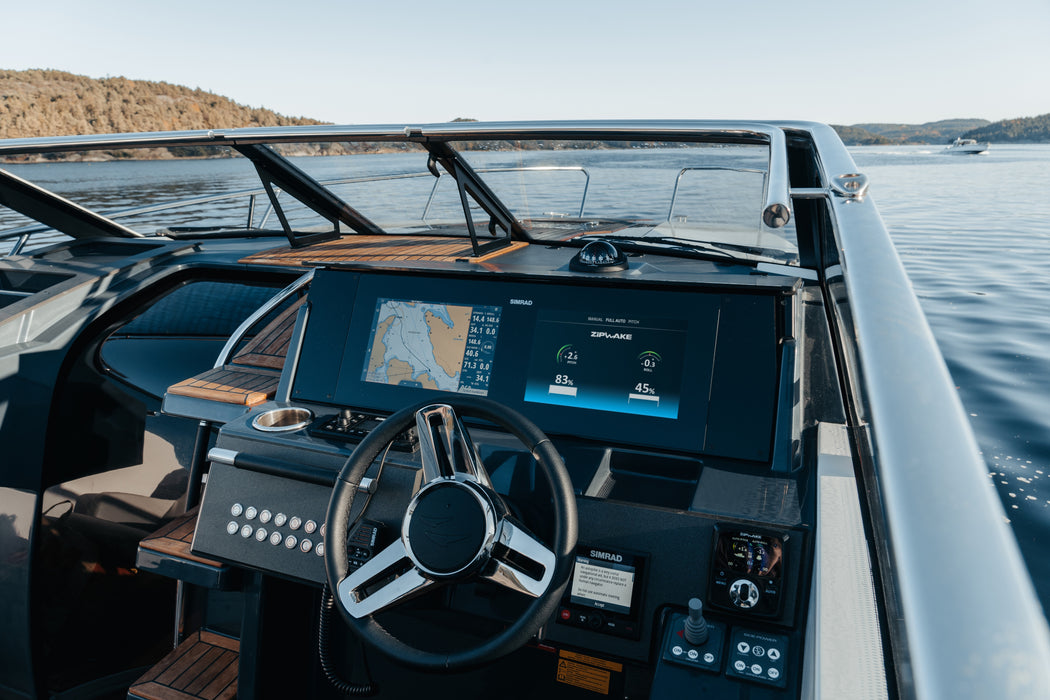

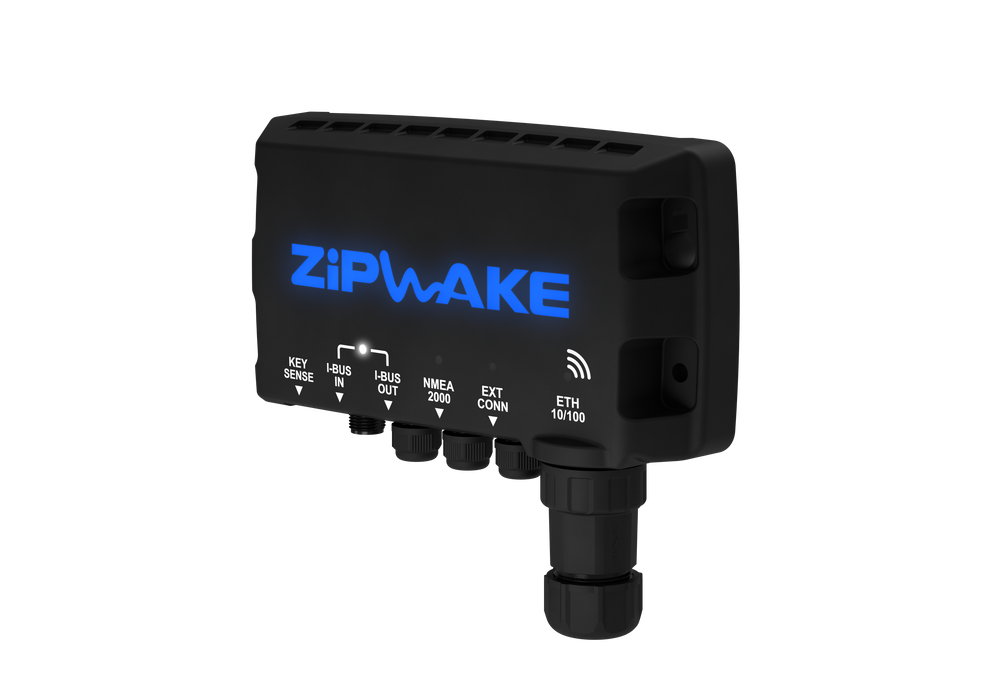

The Zipwake IM integrator module connects a Zipwake system to compatible multifunction displays and smart devices for an integrated helm installation without requiring a standalone control panel.

Ethernet, Wi-Fi, CAN and NMEA interfaces support monitoring, control, configuration and software updates. Built-in motion sensors work with available GPS data to manage dynamic pitch and roll control.

Product Information

Brand Zipwake
Series Series S / Series E / Series S PRO / Series E PRO
Model IM
Manufacturer Part Number 2012241
Product Type Integrator Module

Key Features

  • MFD integration through Ethernet
  • Smartphone and tablet connection through Wi-Fi
  • Built-in 3D gyro, accelerometer and compass
  • NMEA 2000, CAN/J1939 and external GPS interfaces
  • Rugged IP67 enclosure with ignition protection

Specifications

Indicators RGBW LEDs for four communication interfaces and backlit logo
Operating Voltage 12–32 V DC
Power Consumption 4 W max
Operating Temperature -20°C to +60°C (-4°F to +140°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)
Waterproof Rating IP67
Compass Safe Distance 0.5 m (1.7 ft)
Compliance CE, FCC, SAE J1171 ignition protected
Weight 0.35 kg (0.77 lbs)
Dimensions 184 × 112 × 42.5 mm (7.24 × 4.41 × 1.67 in)

Included

  • 1 × IM integrator module

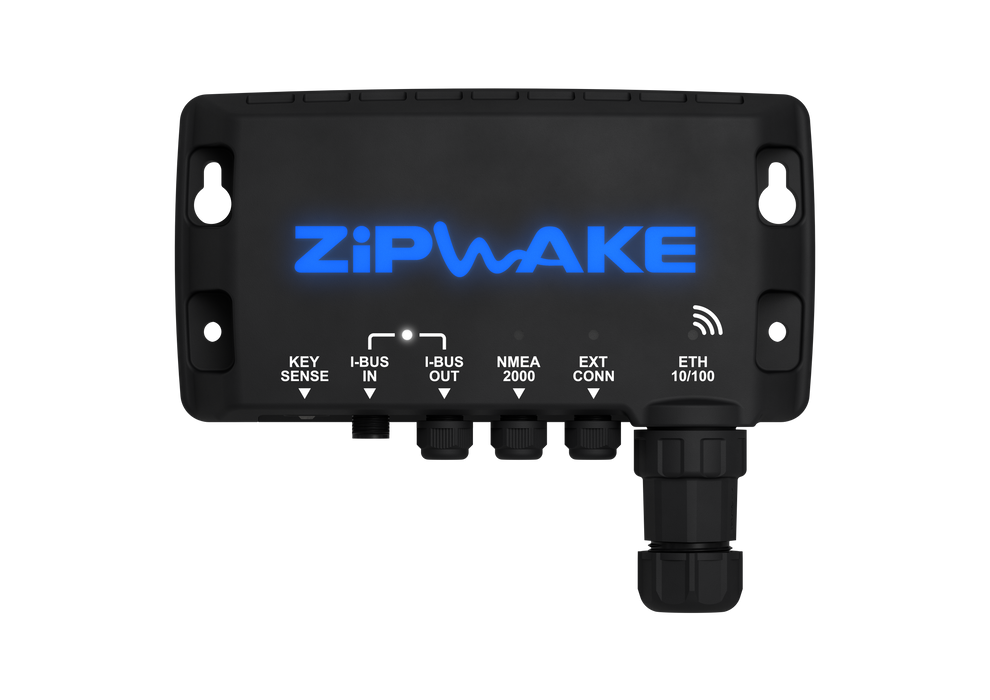

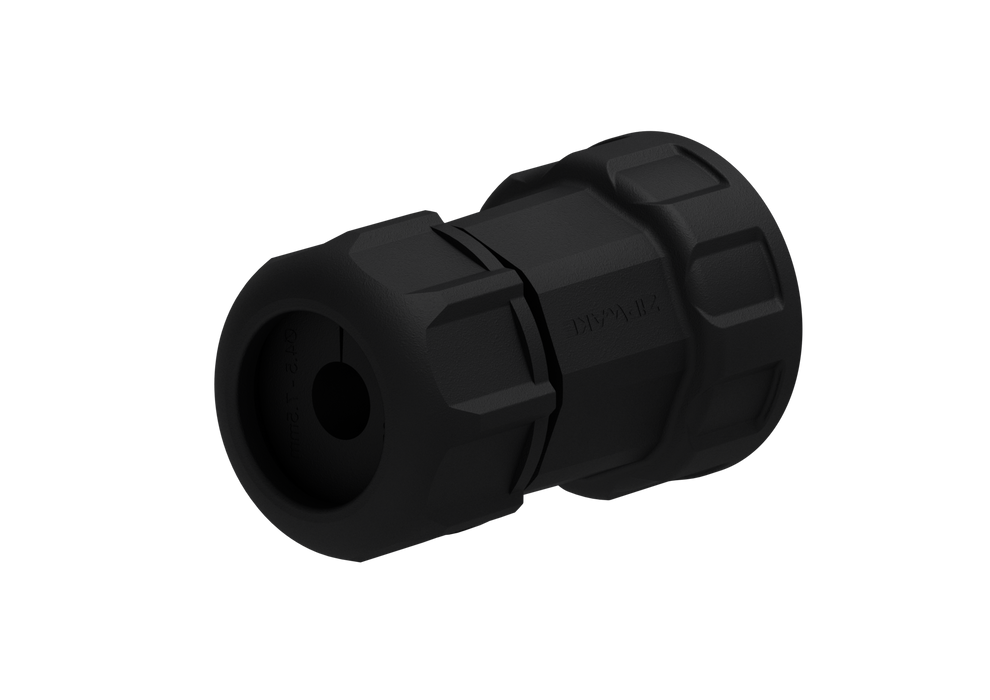

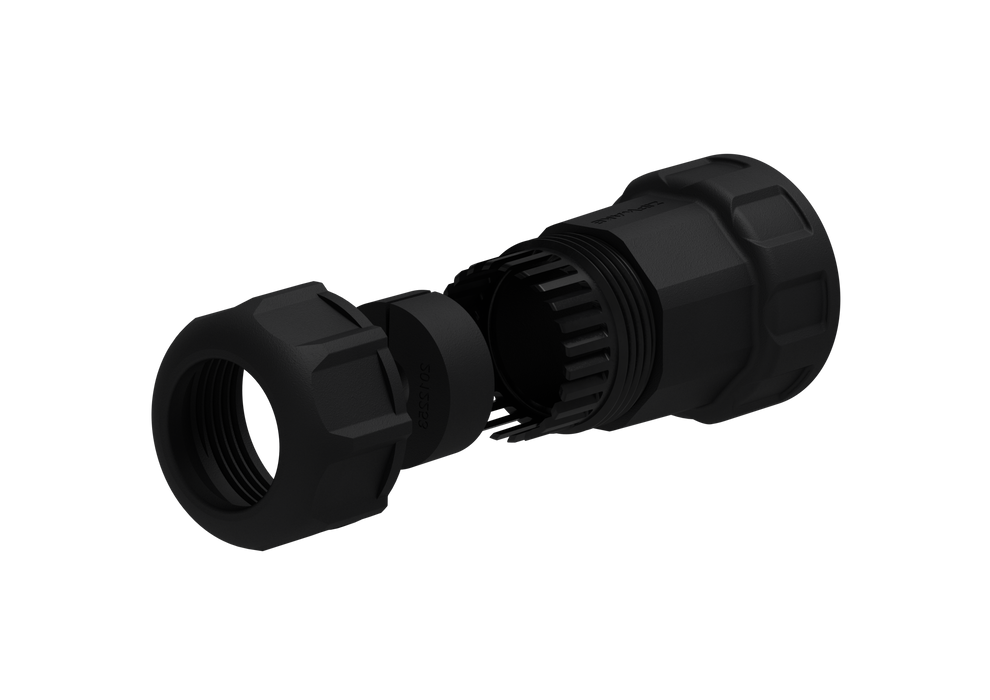

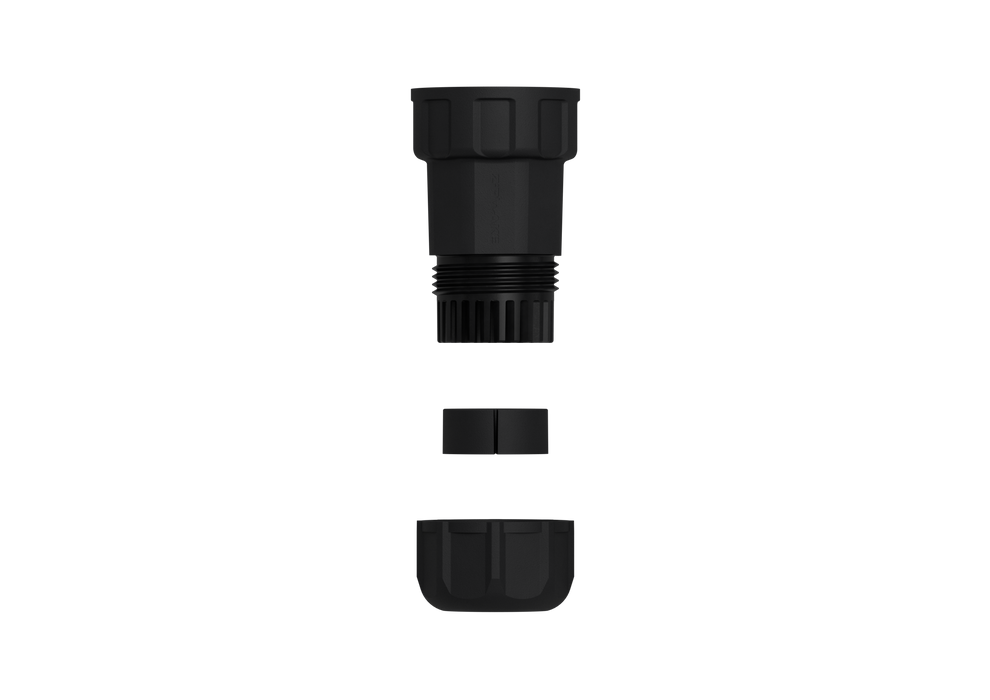

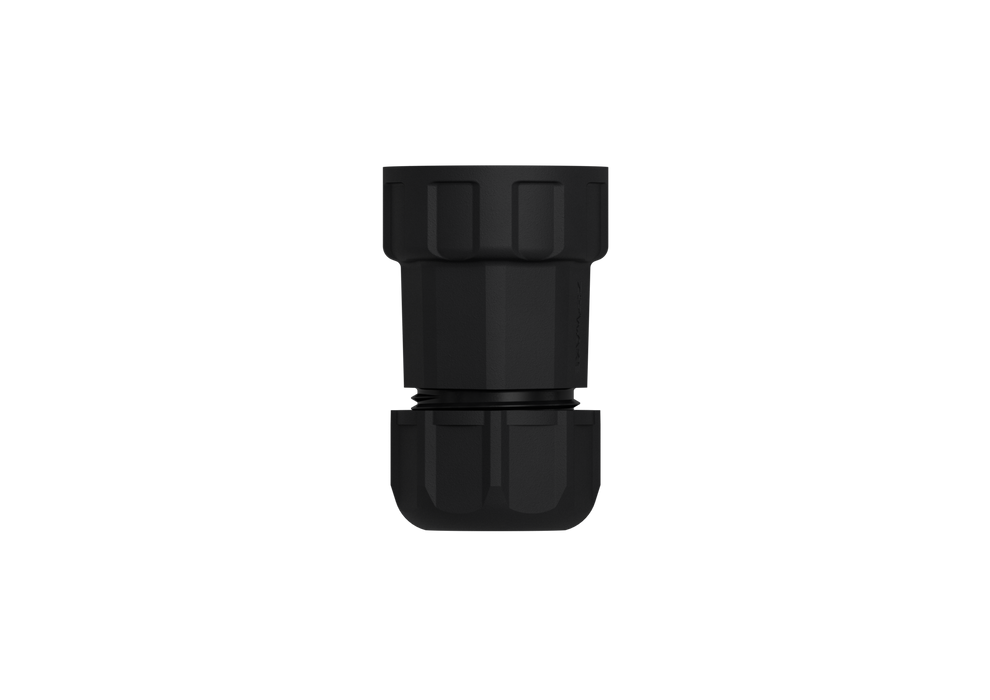

  • 1 × waterproof Ethernet connector collar

Compatibility

Compatible with supported Zipwake Series S, Series E, Series S PRO and Series E PRO components.

Installation Notes

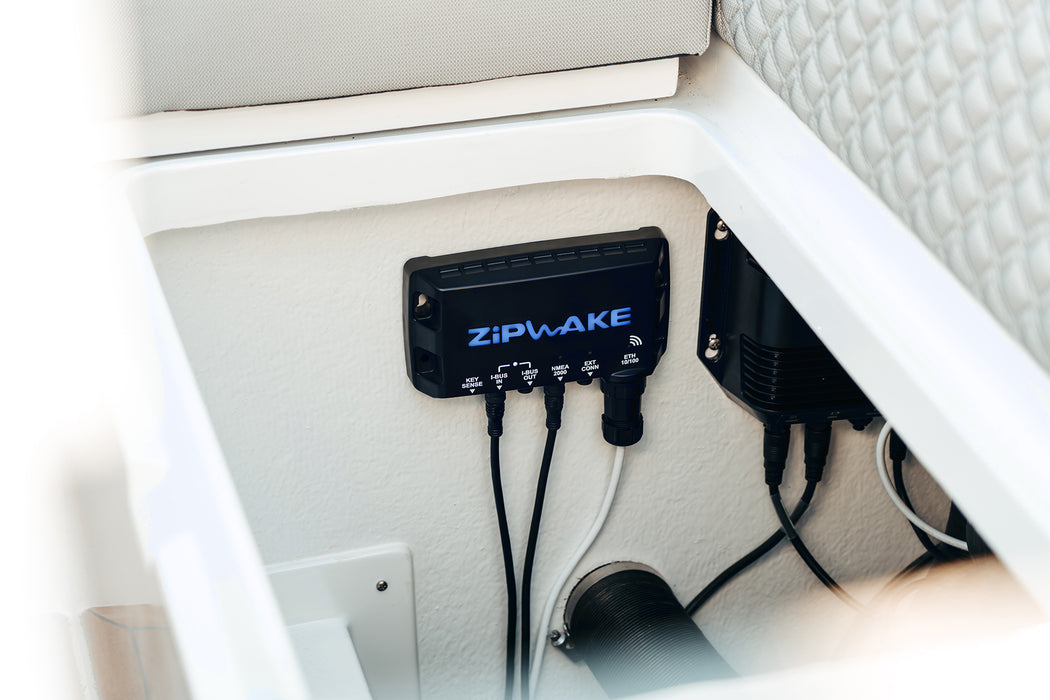

  • May be oriented in any direction and installed behind the helm, on a flybridge or in an engine room.
  • Provide a valid GPS source through NMEA 2000, external GPS or a connected control panel.

Important Information

A compatible MFD or smart device is required for integrated control when no Zipwake control panel is installed.
