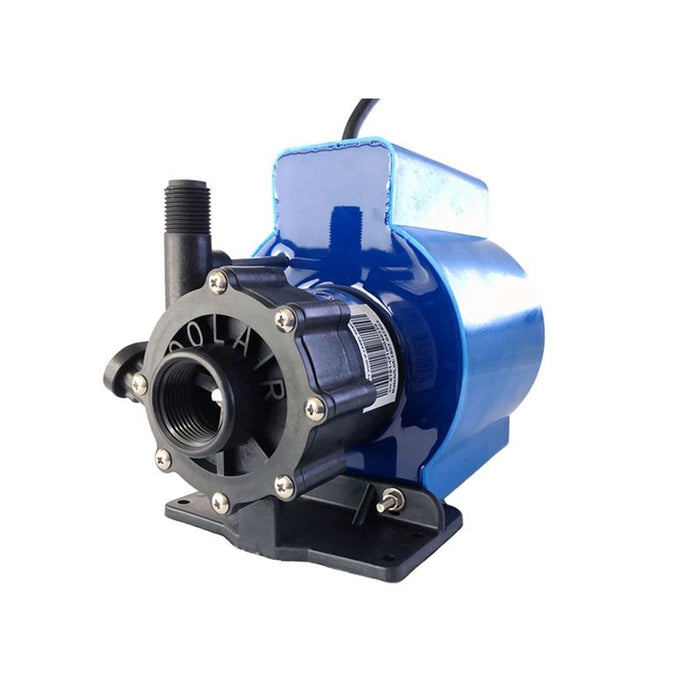

KoolAir SPM1000-230 Submersible Magnetic Drive Pump 1000GPH 230V, Replaces March LC-5C-MD, 1" FPT Inlet 1/2" MPT Outlet
KoolAir

KoolAir SPM1000-230 Submersible Magnetic Drive Pump 1000GPH 230V, Replaces March LC-5C-MD, 1" FPT Inlet 1/2" MPT Outlet

SKU
Availability :
1 in stock
$623.99 - $623.99
$623.99
$623.99 - $623.99
$623.99

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The KoolAir SPM1000-230 Submersible Magnetic Drive Pump is a high-performance marine HVAC coolant pump designed to replace the March LC-5C-MD. This 230V, 1/8 HP pump delivers a maximum flow rate of 17 GPM at 27 feet of head, making it ideal for seawater circulation in air conditioning and refrigeration systems. Engineered with a magnetically driven design, it features an epoxy-coated submersible motor that provides reliable operation both underwater and in open air, offering complete moisture protection. Run dry protection and ISO 8846 Marine Ignition Protection make it safe and durable for marine environments.

  • Part Number: SPM1000-230
  • Replaces: March LC-5C-MD
  • Voltage: 230V, 50/60 Hz
  • Horsepower: 1/8 HP
  • Flow Rate: 17 GPM @ 27 feet of head (11.7 PSI)
  • Inlet: 1" FPT
  • Outlet: 1/2" MPT
  • Front and rear housings: Nylon
  • Internal components: Ceramic shaft and washers, ceramic magnet
  • Bushing: Hardened carbon for extended run dry time
  • Construction: Epoxy-coated submersible motor
  • Protection: Run dry protection, ISO 8846 Marine Ignition Protected
  • Weight: 18 lbs
  • Dimensions: 12" L x 10.5" H

Brand: KoolAir
