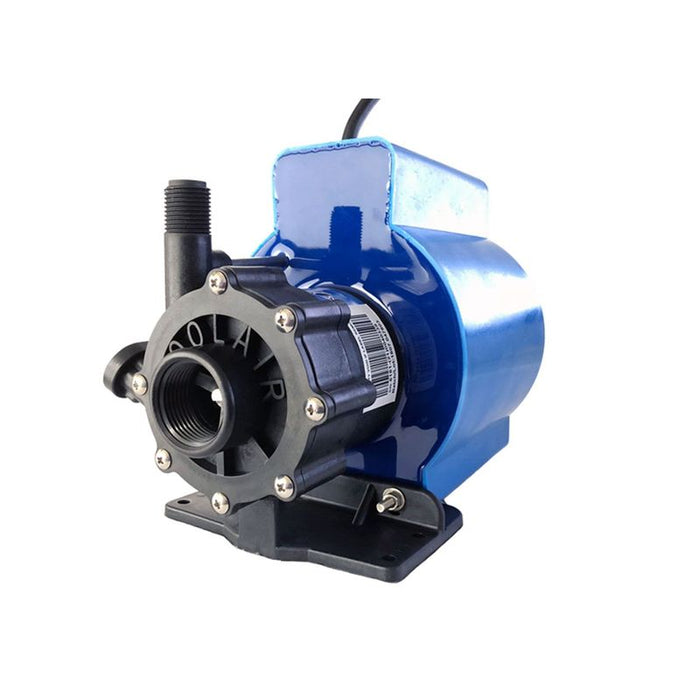

KoolAir SPM1000-115 Submersible Magnetic Drive Pump 1000GPH 115V, Replaces March LC-5C-MD, 1" FPT Inlet 1/2" MPT Outlet
KoolAir

KoolAir SPM1000-115 Submersible Magnetic Drive Pump 1000GPH 115V, Replaces March LC-5C-MD, 1" FPT Inlet 1/2" MPT Outlet

SKU
Availability :
Available for Order
Typically Ships within 1 Week
$623.99 - $623.99
$623.99
$623.99 - $623.99
$623.99

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The KoolAir SPM1000-115 is a high-performance submersible magnetic drive marine A/C pump designed to replace the March LC-5C-MD. This 115V 1/8 HP coolant pump delivers up to 1000 GPH (17.2 GPM) at 27 feet of head, ideal for circulating seawater in marine HVAC systems. With epoxy encapsulation, the pump is protected against moisture whether submerged or in open air. It includes a heavy-duty marine base and features run dry protection, making it safe and durable for continuous-duty applications in harsh environments.

  • Part Number: SPM1000-115
  • Replaces: March LC-5C-MD
  • Voltage: 115V, 50/60 Hz
  • Horsepower: 1/8 HP
  • Amperage: 1.6 A @ 50 Hz, 0.9 A @ 60 Hz
  • Watts: 216 W @ 50 Hz, 207 W @ 60 Hz
  • RPM: 3450
  • Flow Rate: 1000 GPH / 17.2 GPM / 54.8 LPM

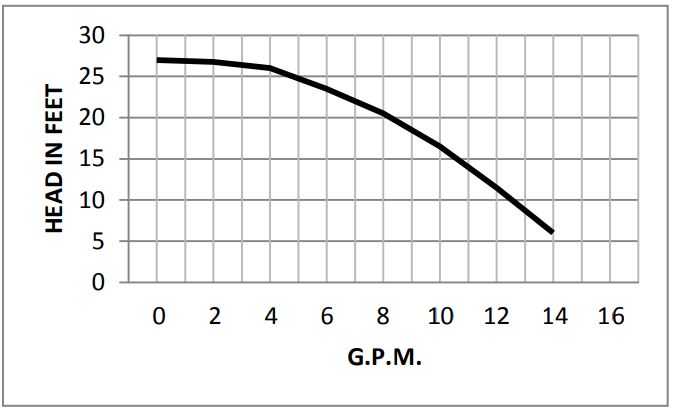

  • Head Rating: 27 feet of head @ 11.7 PSI
  • Maximum Internal Pressure: 25 PSI
  • Maximum Liquid Temperature: 130°F / 54°C
  • Inlet: 1" FPT
  • Outlet: 1/2" MPT
  • Materials: Nylon front/rear housings, ceramic shaft and washers, ceramic magnet, epoxy-coated motor
  • Dry Run Protection: Yes
  • Cord Length: 56", UL listed 18/3 wire
  • Weight: 18 lbs

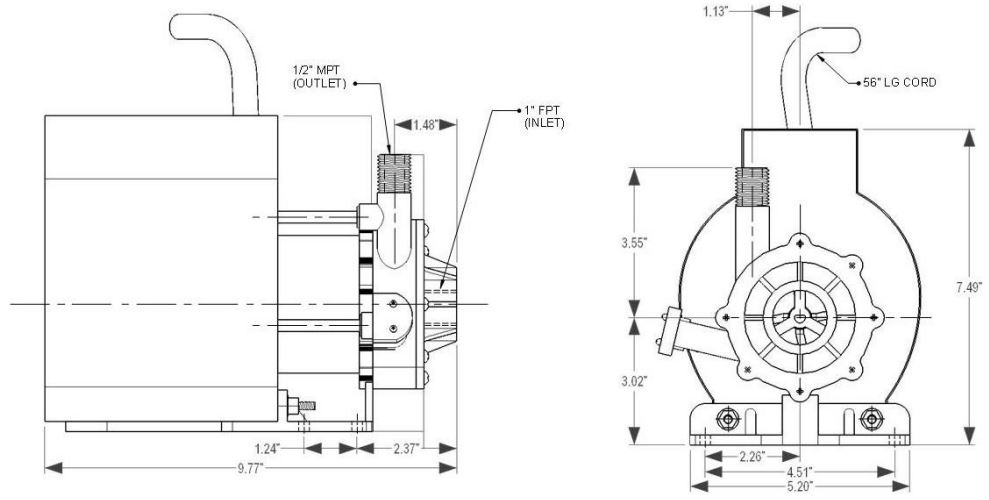

  • Dimensions: Approximately 12" L x 10.5" H
  • Marine Rated: ISO 8846 Marine Ignition Protected
  • Compliance: NMMA, USCG, SAE J1171:2016

This pump is suitable for flooded suction applications only and includes a fully integrated, heavy-duty marine base. It is commonly used in boat air conditioning systems to circulate seawater and is designed for long service life with minimal maintenance.
