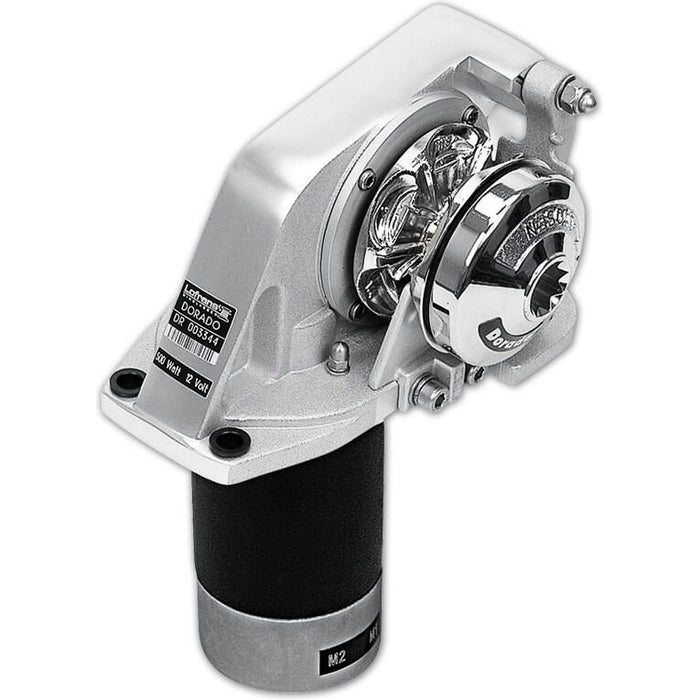

Imtra LW280AN-5/16 Lofrans Dorado Horizontal Windlass 800W 5/16"HT
Imtra

Imtra LW280AN-5/16 Lofrans Dorado Horizontal Windlass 800W 5/16"HT

SKU
Availability :
10+ In Stock
$1,462.50 - $1,462.50
$1,462.50
$1,462.50 - $1,462.50
$1,462.50

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Lofrans Dorado windlass is capable of handling rope and chain on the same gypsy with the help of a specially engineered spring-loaded finger which keeps the warp firmly connected to the gypsy by applied pressure.

Features:

  • Marine aluminium anodized body
  • Manual chain release
  • Rope chain management by the spring load arm
  • Heavy duty rated IP66 electric motor

Specifications:

  • 500W Motor:
    • Line Speed at Working Load: 18 m/min
    • Max Line Speed: 79' (24 m)/min
    • Maximum Pull: 1320 lbs (600 kg)
    • Weight: 22 lbs (10 kg)
    • Amperage at Working Load: 65A
    • Working Load: 154 lbs (70 kg)
  • 800W Motor:
    • Line Speed at Working Load: 20 m/min
    • Max Line Speed: 66' (25 m)/min
    • Maximum Pull: 1430 lbs (650 kg)
    • Weight: 24 lbs (11 kg)
    • Amperage at Working Load: 80A
    • Working Load: 176 lbs (80 kg)
  • Model Type: Port, Low Profile
  • Power Supply: 12V
