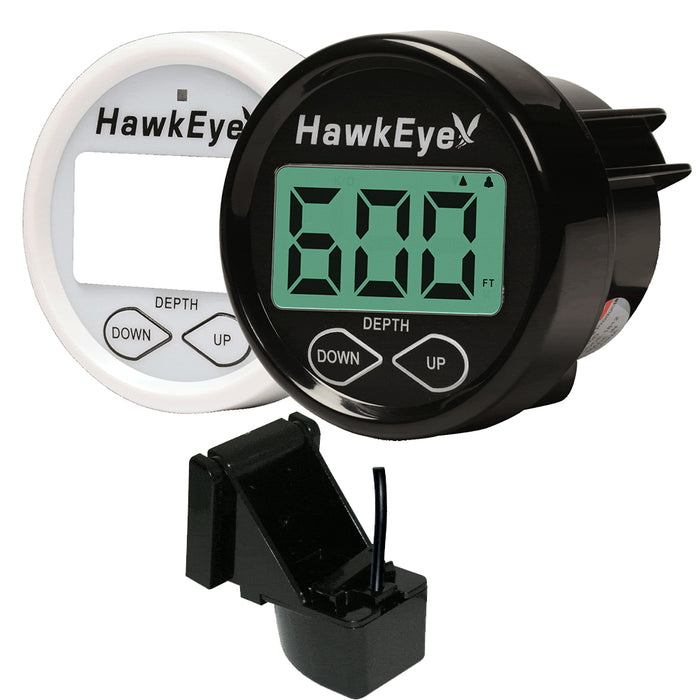

Hawkeye DepthTrax In-Dash Digital Depth & Temp Gauge - Transom Mount
No reviews
SKU
MPN:
DT2BX-TM
Availability :
10+ In Stock
Online Inventory Only
This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Save 1%
Save 1%
Original price
$139.99
Original price
$139.99
-
Original price
$139.99
Original price
$139.99
Current price
$139.00
$139.00
-
$139.00
Current price
$139.00
| /
Ship same day | Standard by 2PM EST| Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup
DepthTrax In-Dash Digital Depth & Temp Gauge - Transom Mount
The DepthTrax 2BX includes all the advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, but also integrates dual temperature displays and an AIRMAR®, ultra-sensitive, high-performance transom mount transducer. With a simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.
The DepthTrax 2BX delivers a combination of performance and affordability unrivaled in any other depth sounder.
Features:
Algorithmic programming significantly reduces false readings and produces unmatched precision
EasyTouch programming allows one-touch access to the user settings
User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements
Selectable Imperial or Metric readout
Dual Upper and Lower depth alarms can be set throughout the full depth range
3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting
Displays air & water temperature in °F or °C
Automatic memory retention of all user settings
Removable face system - includes White & Black faceplates and White/Black trim rings
No glare, polarized LCD icon display with storage sun cover
SoftGlow™ backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing
Technical Specifications:
Gauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm)
Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm)
Gauge Cut-out Size - 2"
Operating Temperature - 0 to 160° F (-18 to 71°C)
Depth Range - 2.5' to 600' (.7 to 180 M)
Transducer Type - Transom Mount
Transducer Frequency - 200kHz
Transducer Beam Angle - 14°
Transducer Cable Length - 30' (9 M)
Power Requirement - 12 - 14 VDC
In the Box:
Gauge
Bezel/Faceplate - Black and White
Display cover
Mounting hardware
Transducer - transom mount w/30' cable
Instruction manual
*Sold as an Individual
Brand: HawkEye
