Garmin GPSMAP 9010 & 9010xsv Series Chartplotter – 10" Premium Chartplotter with Worldwide Basemap
Garmin

Garmin GPSMAP 9010 & 9010xsv Series Chartplotter – 10" Premium Chartplotter with Worldwide Basemap

SKU
$3,657.15 - $4,228.60
$3,657.15
$3,199.99
$3,199.99 - $3,699.99
$3,199.99
Availability Available for Order Lead Time Typically Ships within 1 Week In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Availability Available for Order Lead Time Typically Ships within 1 Week In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Choose a Series
Choose a Chart Type

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

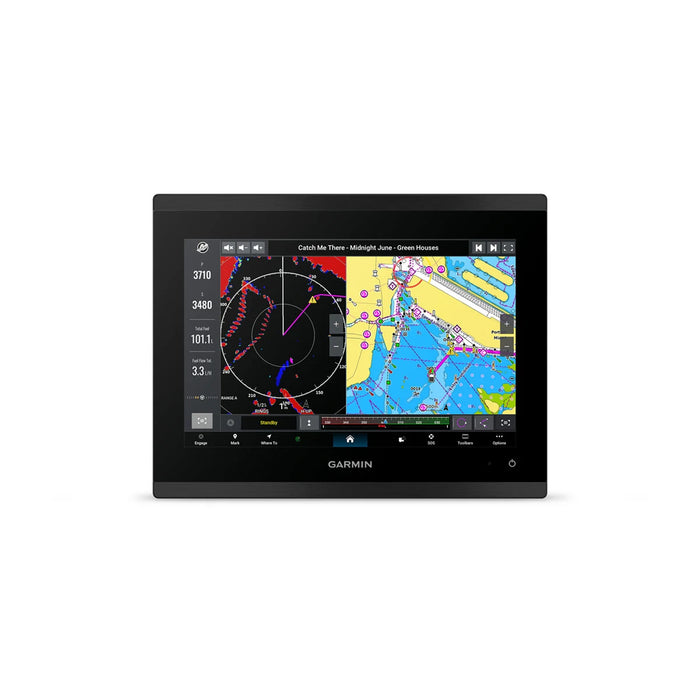

The Garmin GPSMAP 9010 Series 10" chartplotters are premium touchscreen navigation systems designed for captains and anglers who demand the best. Built with edge-to-edge high-resolution displays, these chartplotters provide clear and precise navigation on the water.

Available Models

  • GPSMAP 9010 (GRM010-03175-00): Premium Chartplotter with Worldwide Basemap
  • GPSMAP 9010xsv (GRM010-03175-02): Premium Chartplotter with Worldwide Basemap and built-in sonar for advanced fish-finding

Product Overview

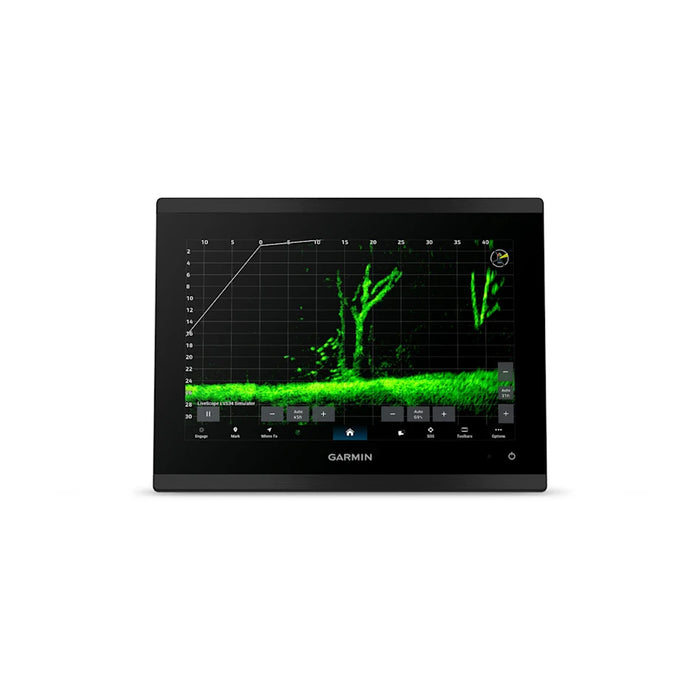

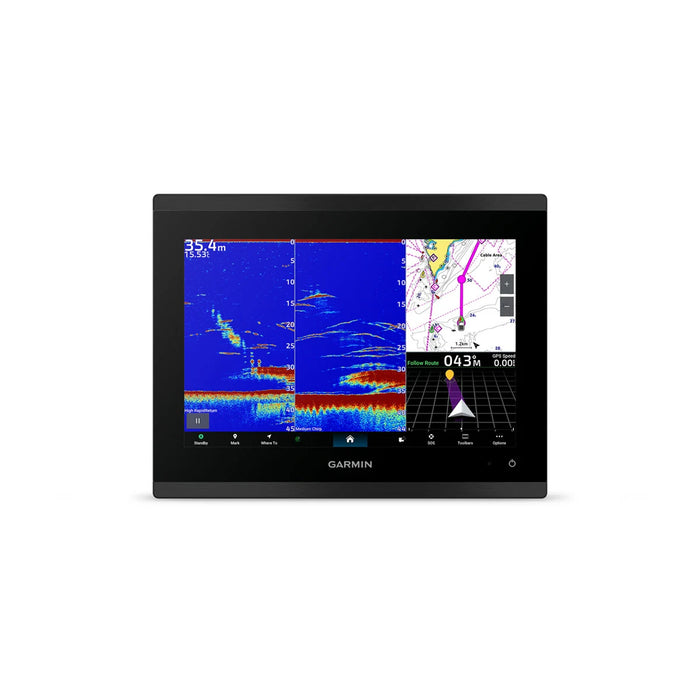

Experience 10" edge-to-edge displays with crisp clarity, fast processing, and wireless connectivity for software updates and navigation data. The GPSMAP 9010xsv includes integrated sonar for superior fish-finding and underwater mapping.

Key Specifications

  • Display Size: 10.1" diagonal (8.54" x 5.34")
  • Display Resolution: 1920 x 1200 pixels, IPS with edge-lit backlight
  • Weight: 5.55 lbs (2.52 kg)

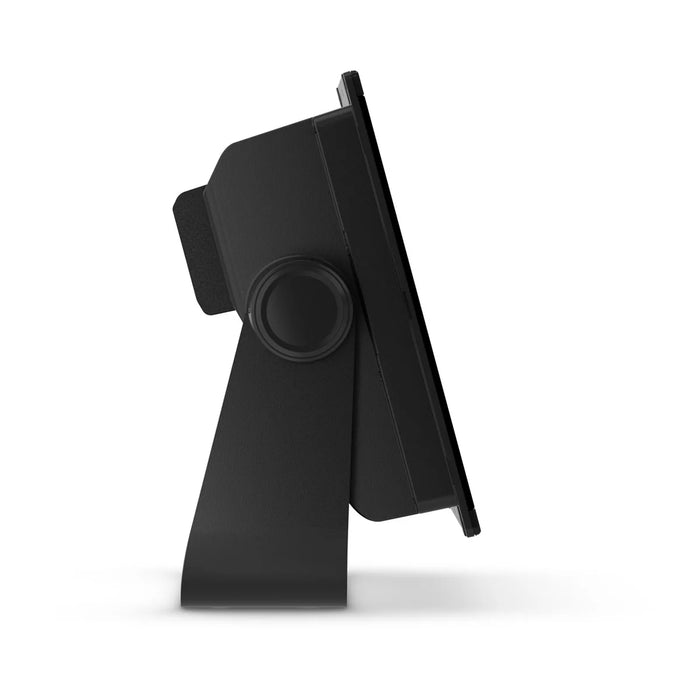

  • Mounting Options: Bail, flush, or flat
  • Water Rating: IPX7

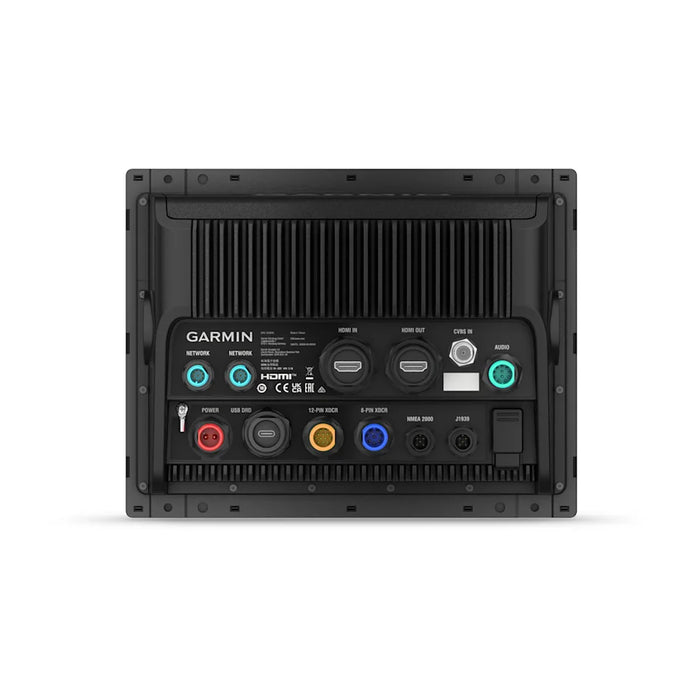

  • Connectivity: Networking ports, USB-C, wireless pairing
  • Power Input: 10–32 VDC
  • Current Draw: 2.4 A (no sonar), 3.6 A (built-in sonar)
  • Includes: Chartplotter, microSD preinstalled, power cable, networking cables, flush/bail mount, protective cover, and documentation

Compatibility

  • Supports marine networking and sonar systems
  • Compatible with compatible receivers, marine stereos, and other navigation accessories
  • Supports advanced sonar views (built-in sonar models only)
  • Can connect to mobile apps for software updates and chart management

SKU & Part Numbers

  • GPSMAP 9010 – GRM010-03175-00
  • GPSMAP 9010xsv – GRM010-03175-02

Brand: Garmin
