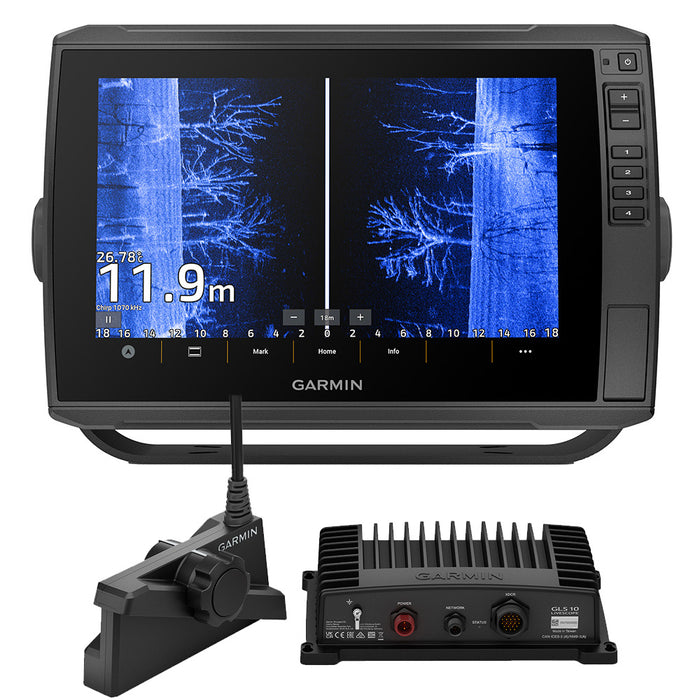

ECHOMAP™ Ultra 2 102sv Livescope LVS34 Bundle
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips.
Features:
- ECHOMAP™ Ultra 2 102sv with Worldwide Basemap
- 10” touchscreen
- Supports livescope™ sonar, and more
- Wirelessly network; share sonar, waypoints, and routes.
- Capture screen recordings to share fish catches
- Multi-band GPS for improved position accuracy
Livescope™ Sonar Support
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
Built-in UHD Sonar
Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
Vivid Color Palettes
High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.
Premium Map Upgrades
Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.
Wireless Networking
If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.
Additional Features:
- Stay Connected
- Multi-Band GPS - Get improved position accuracy with multi-band GPS
- NMEA 2000® Network Compatibility - Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.
- ActiveCaptain® App - Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.
- Force® Trolling Motor - Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.
- Take It With You - The quick-disconnect bail mount lets users quickly install and remove the unit.
In the Box:
- ECHOMAP Ultra 102sv
- Power/data cable
- Bail mount with quick-release cradle
- Protective sun cover
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation
Specifications:
General:
- Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
- Weight: 4.0 lbs (1.8 kg)
- Waterproof: IPX7
- Touchscreen: Yes
- Display Type: WXGA, IPS
- Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
- Display Resolution: 1280 x 800 pixels
- Mounting Options: Bail or flush
- Input: Touchscreen with Keyed Assist
Maps & Memory:
- Accepts Data Cards: 2 microSD cards
- Waypoints: 5000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Sensors:
- GPS: Yes
- GLONASS: Yes
- Galileo: Yes
- BeiDou: Yes
- Has Built-In Receiver: Yes
- Receiver: 10 Hz
- NMEA 2000 Compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes
- Supports Multi-Band, Multi-Constellation GPS: Yes
Built-In Maps:
- Built-In Auto Guidance+: Yes
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
- Tide Tables: Yes (see Additional)
Optional Map Support:
- BlueChart g3: Yes
- BlueChart g3 Vision: Yes
- LakeVü g3: Yes
- LakeVü g3 Ultra: Yes
- Garmin Navionics+™: Yes
- Garmin Navionics+ Vision+™: Yes
- TOPO 100k: Yes
- Standard Mapping: Yes
- Garmin Quickdraw Contours: Yes
Chartplotter Features:
- AIS: Yes
- DSC: Yes
- Supports Fusion-Link™ Compatible Radios: Yes
- ActiveCaptain® Compatible: Yes
- Sailing Features: Yes
Electrical Features:
- Power Input: 9 to 18 VDC
- Typical Current Draw at 12 VDC: 2.5 A
- Maximum Current Draw at 12 VDC: 5.0 A
- Maximum Power Usage at 10 VDC: 36 W
Sonar Features:
- Displays Sonar: Yes
- Power Output: 600 W
- Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
- ClearVü: Built-in 260/455/800/1000/1200 kHz
- SideVü: Built-in 260/455/800/1000/1200 kHz
- Panoptix™ Sonar: Yes
- Livescope: Yes
Connections:
- NMEA 2000® Ports: 1
- Garmin Marine Network Ports: 2 (Large Connector)
- 12-Pin Transducer Ports: 12-Pin Scanning Sonar
- ANT+ (Connectivity): Yes
- Garmin Wi-Fi Network (Local Connection): Yes
LiveScope™ Plus LVS34-IF Ice Fishing Transducer
The best of the best just broke new ice with the LiveScope Plus LVS34-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS™ 10 sonar black box to get improved resolution, reduced noise, clearer images, and better target separation in LiveScope™ Forward and LiveScope™ Down modes. With a durable, flexible cold-weather transducer cable, you’re set for a day on the ice.
In the Box:
- LiveScope Plus LVS34-IF
- 0-degree LiveScope pole mount
- Documentation
Specifications:
- Sonar Type: LiveScope™ Plus
