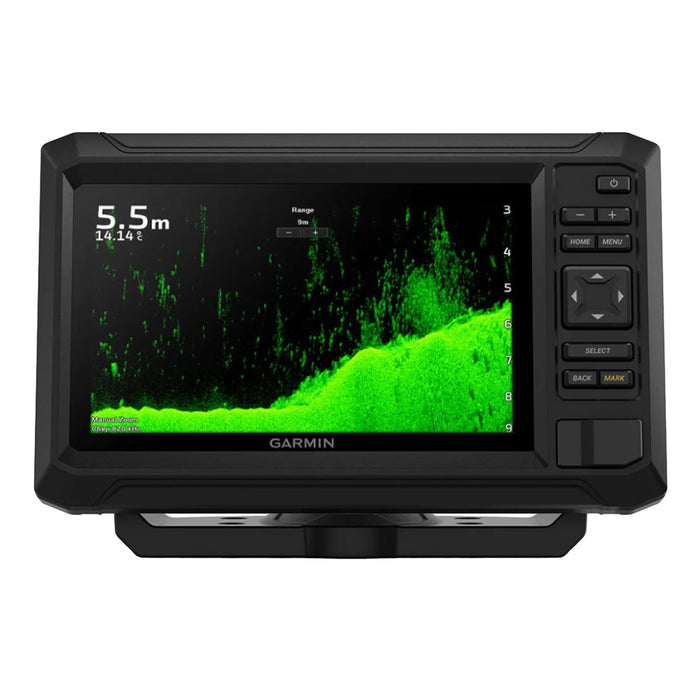

ECHOMAP™ UHD2 72cv without Transducer
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.
Features:
- 7” display size
- The bright keyed display is made for convenience
- Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars
- What’s under the water looks even better with high-contrast vivid color palettes
- Wi-Fi connectivity2 between compatible chartplotters makes it easy to share info
- Enjoy No. 1 in mapping with Garmin’s LakeVü g3 and BlueChart® maps with Navionics® data
Sonar Support
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Bundle the Transducer
The ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
Preloaded Charts
Know the waters users are in as if they grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.
Wireless Networking
If users have another compatible ECHOMAP UHD2 chartplotter on the boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.
ActiveCaptain® App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data, and more.
In the Box:
- ECHOMAP™ UHD2 72cv
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
Specifications:
General:
- Dimension: 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
- Weight: 1.5 lbs (0.7 kg)
- Waterproof: IPX7
- Display Type: WVGA, TN
- Display Size: 6.1" x 3.4" (15.5 x 8.7 cm)
- Display Resolution: 800 x 480 pixels
- Mounting Options: Bail or flush
- Input: Keyed
Maps & Memory:
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
- Waypoints: 5,000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Sensors:
- GPS: Yes
- Galileo: Yes
- Has Built-In Receiver: Yes
- Receiver: 5 Hz
- Supports WAAS: Yes
Built-In Maps:
- Built-In Auto Guidance+: Yes (downloadable via ActiveCaptain app)
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
- Garmin Navionics+ (Coastal): Yes
- Garmin Navionics+ (Inland): Yes
- Tide Tables: Yes
Optional Map Support:
- BlueChart g3: Yes
- BlueChart g3 Vision: Yes
- LakeVü g3: Yes
- LakeVü g3 Ultra: Yes
- Garmin Navionics+: Yes
- Garmin Navionics Vision+: Yes
- TOPO U.S. 100K: Yes
- Standard Mapping: Yes
- Garmin Quickdraw Contours: Yes
Chartplotter Features:
- ActiveCaptain® Compatible: Yes
Electrical Features:
- Power Input: 9 to 18 VDC
- Typical Current Draw at 12 VDC: 1.0 A
- Maximum Current Draw at 12 VDC: 1.5 A
- Maximum Power Usage at 10 VDC: 18 W
Sonar Features:
- Displays Sonar: Yes
- Power Output: 500 W
- Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- ClearVü: Built-in 260/455/800/1000/1200 kHz
Connections:
- 4-Pin Transducer Ports: 1
- Garmin Wi-Fi Network (Local Connection): Yes
1Transducer required
2Requires the ActiveCaptain app on a compatible smartphone paired to the ECHOMAP UHD2 5” and 7” chartplotters
Brand: Garmin
