Forespar SR-2 Jib Roller
Forespar Performance Products

Forespar SR-2 Jib Roller

SKU
Availability :
Only 6 left!
Save 13% Save 13%
$59.95
$59.95 - $59.95
$59.95
$52.00
$52.00 - $52.00
$52.00

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

SR-2 Jib Roller

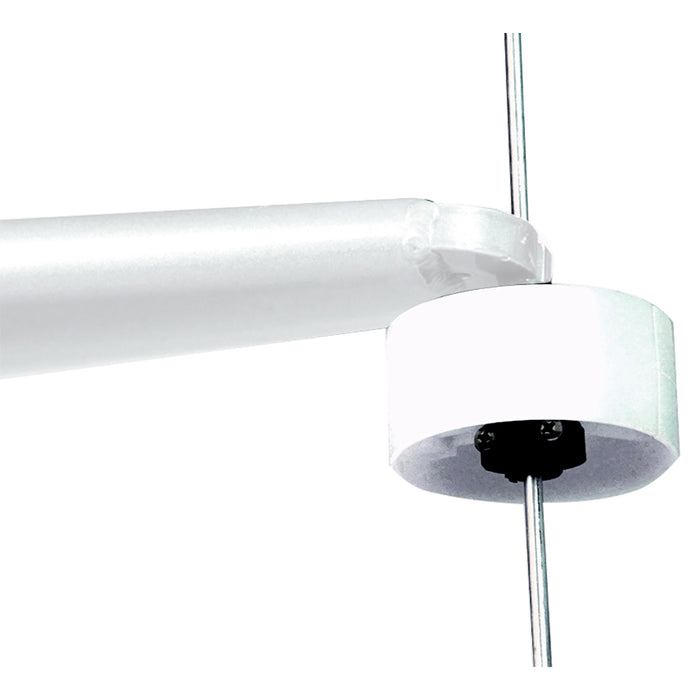

The Forespar® SR-2 Jib Roller with fit shrouds from 3/16” thru 3/8” wire diameter.

Use the proper size pair of insert liners according to the table below:

  • 3/8” wire – use no insert
  • 5/16” wire – use #1 inserts
  • 9/32” wire – use #2 inserts
  • ¼” wire – use #3 inserts
  • 7/32” wire – use #4 inserts
  • 3/16” wire – use #5 inserts

The Jib Rollers may be placed just above or below the spreader tips; however, installation will be easier if located below the spreaders. In this instance, you can pre-assemble the parts while on deck and reduce the possibility of losing parts while hanging in a boatswain’s chair. Have a 3 inch piece of masking tape within handy reach (stick it to the shroud).

Select the proper inserts, place them into the two halves of a hub and fit them around the shroud. Use the tape to loosely hold these parts together. Note that the hubs have two clearance screw holes at one end. Match these with the smaller holes at the other end of the other half. It is important that the mating faces of the inserts are parallel with the faces of the hub halves. Install the four screws supplied, tightening only to the extent that you can still slide the hub assembly up the wire shroud. Now remove the tape.

Next, install the rollers. Note that one half of each roller has clearance holes for the two screws. Mate these halves that don’t have clearance holes. Run these screws tight. Now slide the Jib Roller to the desired position on the shroud and finish tightening the four hub screws until the hub interfaces are fully closed.

Brand: Forespar Performance Products

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
