Imtra ILPB23304105 | Emden Large LED, SS, Warm White, 10-30VDC, Slave, IP67
Imtra

Imtra ILPB23304105 | Emden Large LED, SS, Warm White, 10-30VDC, Slave, IP67

SKU
Sold out
$440.00
$440.00 - $440.00
$440.00
$361.19
$361.19 - $361.19
$361.19
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

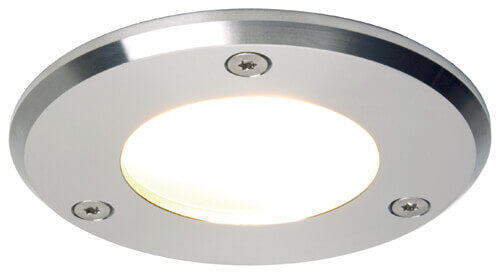

Emden Large LED, Stainless Steel, Warm, 10-30VDC, Slave (Dimmable with Master), IP67 (only from the front)

A robust precision made high power LED downlight fixture built for harsh environments.

This model from the Emden family is a large diameter LED down light fixture with light output equal to a 40W halogen. It may be wired to any remote on/off switch or when wired to the Emden "Master" (see model ILPB23304205) it can be fully dimmed. A maximum of 15 slaves may be paired with any master unit (medium or large). Engineered to the highest standards and milled from marine grade 316 stainless steel, Emden will provide years of maintenance-free top performance. Emden's low profile bezel edge and high polish finish provide a style element that will surely be appreciated by the meticulous yacht owner and his/her guests.

Features

  • Features & Benefits:
  • Machined 316 stainless steel construction
  • Integrated 10-30VDC constant current LED driver
  • Full dimming when paired with Emden Master (see ILPB23304205 or ILPB23303205)
  • Pleasing wide-angle warm white illumination

Specifications

Brand Imtra
Manufacturer Part Number ILPB23304105
Certifications & Compliance CE, ROHS
Class F-Rated, Class III
Cut-out Dimensions 3.54" (90mm)
Dimmer Compatibility See Emden Master (ILPB23304205 or ILPB23303205)
Dimmer Control Interface N/O momentary switch
Housing Finish/Material Anodized aluminum/AISI 316 SS
Lifetime Hours 50,000 hrs
Output Color Warm White
Trim Ring (Bezel) Dimensions 4.72" (120mm)
Trim Ring (Bezel) Finish/Material Polished stainless steel
Input Voltage 10-30VDC
Warranty 3 Years / 1 Year Finish
Lens Material Frosted glass
Power Consumption 3.0W
Recessed Depth 0.87in. (22mm)
Ingress Protection IP67 (only from the front)
Light Technology LED
Mounting Method Screws
Beam Angle 90°+
Luminous Flux 335 lm
Switch Not Included
Driver Integrated
Electrical Protections Reverse Polarity, Transient
Correlated Color Temperature (CCT) 3000K
Color Rendering Index (CRI) 85
Ingress Protection Rating (IP) IP65+

Brand: Imtra
