Seachoice 44990 Life Jacket Bag (Holds 6)
Seachoice 44990 Life Jacket Bag (Holds 6)

SKU SCP44990

Unit Price $19.50
$10.95 Flat Rate Shipping Under $199 | Free Ground Shipping Over $199 | See Exceptions
Free Ground Shipping Over $199.00 | Details

Imtra ILPB23304205 | Emden Large LED, SS, Warm White, 10-30VDC Master, IP67

SKU
Sold out
Original price $465.00
Original price $465.00 - Original price $465.00
Original price $465.00
Current price $380.49
$380.49 - $380.49
Current price $380.49
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
Need Help From Our Sales Team?

Available during our normal business hours:

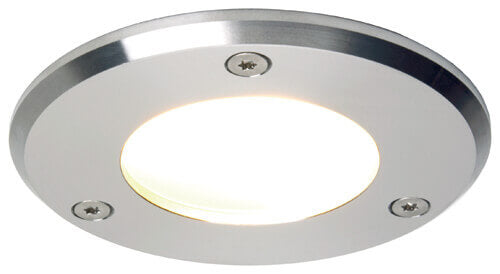

Emden Large LED, Stainless Steel, Warm, 10-30VDC, Master (Dimmable), IP67 (only from the front)

A robust precision made high power LED downlight fixture built for harsh environments.

This model from the Emden family is a large diameter LED down light fixture with light output equal to a 40W halogen. It also has full dimming capability when wired to any N/O momentary switch. Add up to 15 medium or large "slave" Emden models (see model ILPB23304105 or ILPB23303105) to complete your dimmed circuit. Engineered to the highest standards and milled from marine grade 316 stainless steel, Emden will provide years of maintenance free top performance. Emden's low profile bezel edge and high polish finish provide a style element that will surely be appreciated by the meticulous yacht owner and his/her guests.

Features

  • Features & Benefits:
  • Machined 316 stainless steel construction
  • Integrated 10-30VDC constant current LED driver
  • Full dimming with remote N/O momentary switch
  • Controls up to 15 Emden slave fixtures (see ILPB23304105 or ILPB23303105)
  • Pleasing wide-angle warm white illumination

Specifications

Brand Imtra
Manufacturer Part Number ILPB23304205
Certifications & Compliance CE, ROHS
Class F-Rated, Class III
Cut-out Dimensions 3.54" (90mm)
Dimmer Compatibility Integrated
Dimmer Control Interface N/O momentary switch
Housing Finish/Material Anodized aluminum/AISI 316 SS
Lifetime Hours 50,000 hrs
Light Size 4 - 5"
Output Color Warm White
Trim Ring (Bezel) Dimensions 4.72" (120mm)
Trim Ring (Bezel) Finish/Material Polished stainless steel
Finish Polished Stainless Steel
Input Voltage 10-30VDC
Warranty 3 Years / 1 Year Finish
Lens Material Frosted glass
Power Consumption 3.0W
Recessed Depth 0.87in. (22mm)
Ingress Protection IP67 (only from the front)
Light Technology LED
Mounting Method Screws
Beam Angle 90°+
Base Shape Round
Luminous Flux 335 lm
Switch Not Included
Profile Raised
Driver Integrated
Electrical Protections Reverse Polarity, Transient
Correlated Color Temperature (CCT) 3000K
Color Rendering Index (CRI) 85
Ingress Protection Rating (IP) IP65+
Dimmability Dimmable with Remote Switch
LED Color Warm White

Brand: Imtra

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
