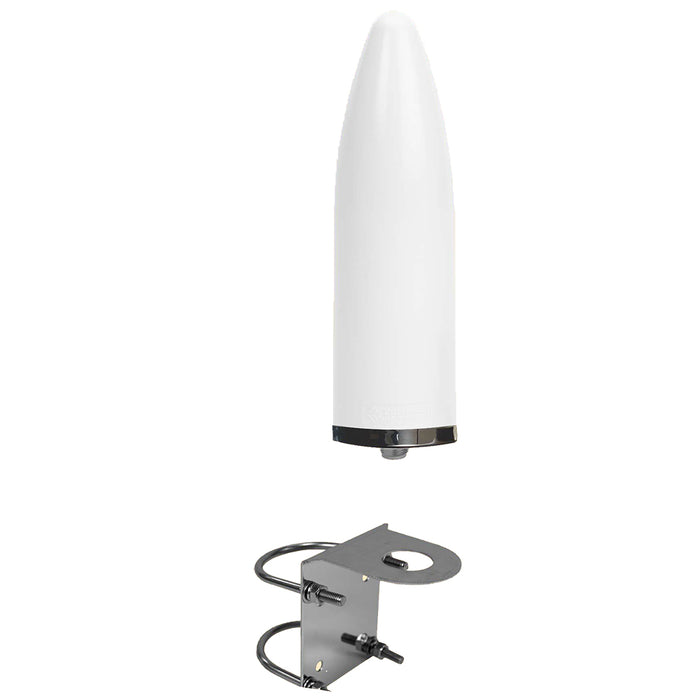

Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

Available in 4 stainless steel mounting options: L-Bracket, 1" x 14 Threads, Deck Mount, and Raised Deck Mount

REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.

Applications:

  • Commercial
  • Recreational
  • Government
  • Marine
  • Land

Features:

  • Maximum power for 4G, 5G, WiFi signals
  • 9dBi omni-directional gain
  • Rugged UV stable polyurethane finish
  • Foam filled to withstand extreme vibrations
  • 316 stainless steel base
  • Includes L bracket & U-Bolts
  • Weatherproof N female connector
  • 5-year warranty

Specifications:

  • Radiation Pattern Omni-Directional
  • Gain 9dBi
  • Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ
  • Cable Not Included
  • Impedance 50 ohms
  • Max Input Power 50 watts
  • Exterior Finish White polyurethane high gloss UV stable
  • Dimensions 8.875" L x 2.375" OD (225 x 60 mm
  • Weight 15 oz
  • RF Connector N type female
  • Installation Stainless Steel L bracket for pole/wall
  • Elements Copper - Hand soldered
  • Polarization Vertical
  • Wind Rating >160KPH
  • Operating Temp 30º F to +175º F
  • Warranty 5 Years
  • Compliance RoHS compliant

Brand: Digital Antenna
