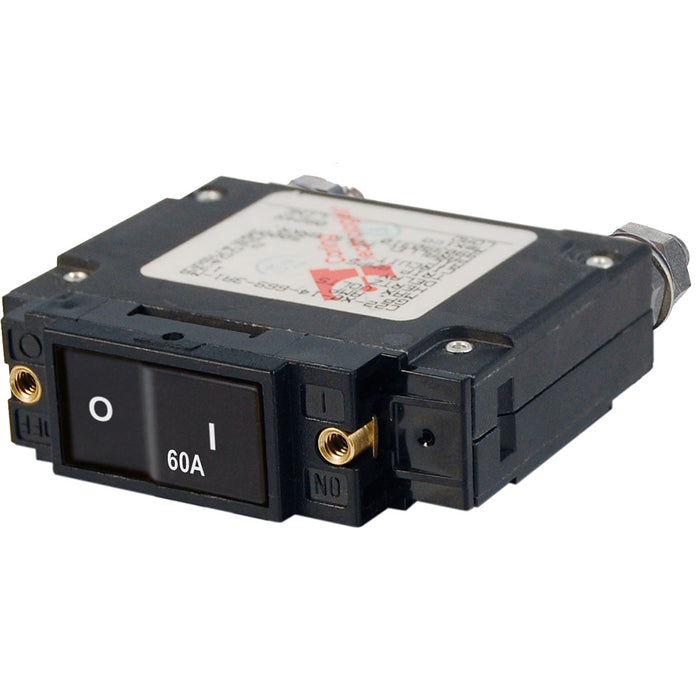

Blue Sea 7547 C-Series Flat Rocker Circuit Breaker - Single Pole - 60A
Blue Sea

Blue Sea 7547 C-Series Flat Rocker Circuit Breaker - Single Pole - 60A

SKU
Availability :
Available for Order
Typically Ships in 1 to 2 Weeks
$42.99 - $42.99
$42.99
$42.99 - $42.99
$42.99

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

C-Series Flat Rocker Circuit Breaker - Single Pole - 60A
Features:
  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
  • Color actuator indicates "OFF" position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip
  • Ignition protectedsafe for installation aboard gasoline powered boats

Specifications:
  • Amperage: 60A AC / 60A DC
  • Actuator Style: Flat Rocker
  • Poles: 1
  • Maximum Voltage: 240V AC / 48V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque: 35 in-lb (3.95 Nm)
  • Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
  • Minimum Operating Temperature: -40 Degree C
  • Maximum Operating Temperature: 85 Degree C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Terminal Stud: 1/4-20 Tin-Plated Brass
  • Weight: 0.38lb (0.17 kg)
