Barton Tufnol Snatch Block f/Wire & Fibreoptic Cables
Barton Marine

Barton Tufnol Snatch Block f/Wire & Fibreoptic Cables

SKU
Save 7% Save 7%
$183.26
$183.26 - $183.26
$183.26
$169.79
$169.79 - $169.79
$169.79
Availability In Stock In Store - Online Only 4 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

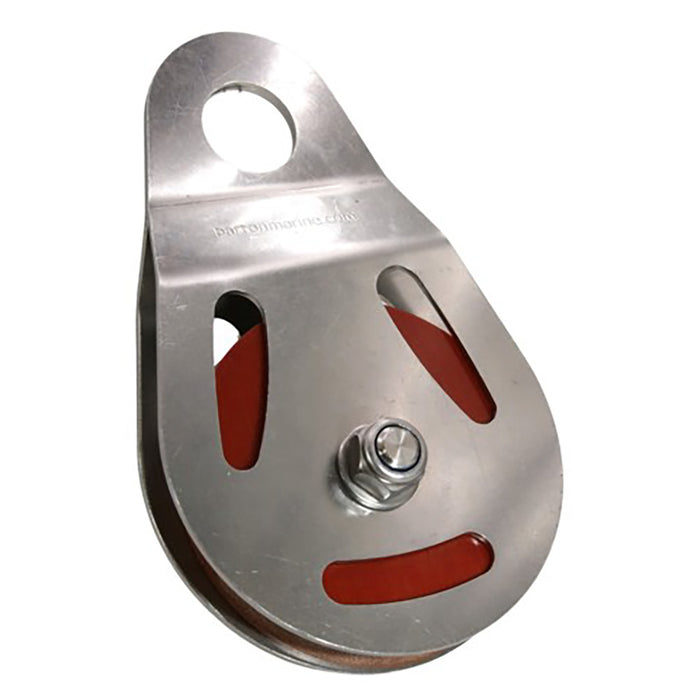

Tufnol Snatch Block for Wire & Fibreoptic Cables

The Barton wire snatch block has been developed specifically as a low maintenance static free block. The Tufnol sheave means that static cannot build up in the block and cause electrical discharge. Tufnol is a bearing-grade material so it gives a low-friction surface for the wire to run on and minimizes the number of moving components, giving it reliability and durability.

The cheeks are made from marine grade 316 stainless steel as is the pin and retaining nuts. This block is ideal for commercial applications in the toughest of environments.

Specifications:

  • Safe Working Load: 350kg (770lbs)
  • Break Load: 1500kg (3300lbs)
  • Max Rope/Wire size: 10mm (3/8”)
  • Weight: 78grms (2.8oz)
  • Length: 190nn (7 ½”)
  • Width: 115mm (4 ½”)
  • Thickness (Maximum): 53mm (2 1/16”)

Fibreoptic & Wire Bending

Fibreoptic cables and wire ropes require a minimum bend radius to stop failures. This block is suitable for both fibreoptics and wires up to 10mm in diameter. The large sheave means that the bend radius of the wire is not compromised and provides an additional engineered safety factor to prologue the life of wire if continual movement around the same section of wire is required.

Brand: Barton Marine

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Brochure BONT92100 Brochure ⬇ View Here
