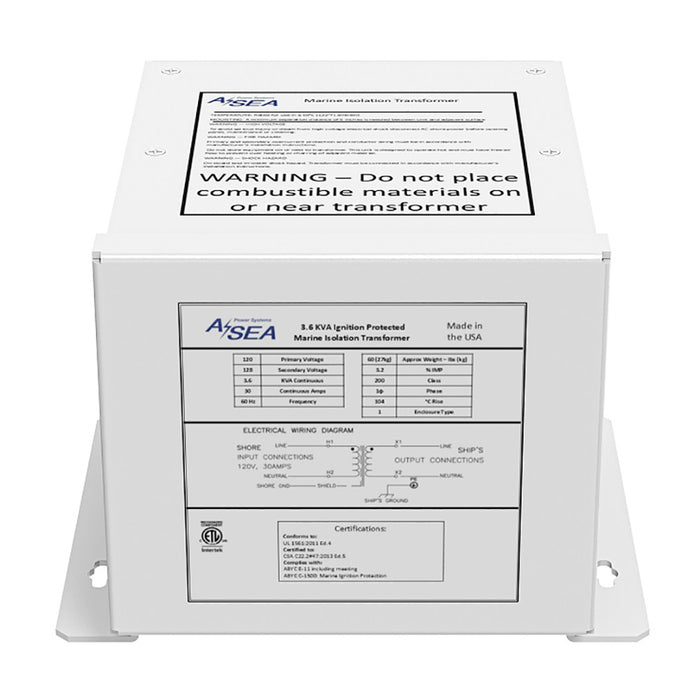

ASEA Power Systems 3.6 kVA Isolation Transformer
ASEA Power Systems

ASEA Power Systems 3.6 kVA Isolation Transformer

SKU
Save 1% Save 1%
$3,650.00
$3,650.00 - $3,650.00
$3,650.00
$3,598.75
$3,598.75 - $3,598.75
$3,598.75
Availability In Stock In Store - Online Only 2 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
$ Oversized | Not Eligible For Free Shipping
Non-returnable

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

3.6 kVA Isolation Transformer

ASEA’s Isolation Transformer is a drop-in replacement for Charles IsoG2 designed to protect vessel under-fittings from galvanic corrosion and to shield onboard electronics from reverse polarity and shore power fluctuations. It also ensures safety by preventing the boat from sending unintended electric currents into the surrounding water.

Features:

  • Ignition Protected: Certified to ABYC C-1500 requirements, making them safe and reliable to use in gasoline-powered marine vessels.
  • Galvanic Corrosion Protection: By isolating AC shore power from the boat’s AC power system, the ASEA Isolation Transformer protects the boat from galvanic corrosion.
  • Marina electrical leakage compliance: With NEC 555.35 becoming mandatory for marinas to check and limit the amount of leakage available per vessel, an isolation transformer doesn’t allow any electrical leakage back to the power pedestal.
  • Charles Isolation Transformer Replacement: ASEA’s isolation transformers are designed as a direct and improved replacement for Charles IsoG2.
  • GFPE Tripping Prevention: Eliminates false GFPE tripping by preventing current flow back into the dock, guaranteeing an uninterrupted power supply, even as a transient occupant.

Specifications:

  • Input Voltage: 120 VAC
  • Input Current: 30 A
  • Output Voltage: 120 VAC
  • Output Current: 30 A
  • Output Frequency: 60 Hz
  • Weight: 55 lbs
  • Height: 21.6 cm / 8.5 in
  • Width: 21.6 cm / 8.5 in
  • Width (with flange): 27.4 cm / 10.8 in
  • Depth: 26.7 cm / 10.5 in

Certifications:

  • UL 1561
  • Meets ABYC E-11.7.1
  • ABYC C-1500 (for ignition protection)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brand: ASEA Power Systems

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet ASE634003 Quick Guide ⬇ View Here
Brochure ASE634003 Brochure ⬇ View Here
