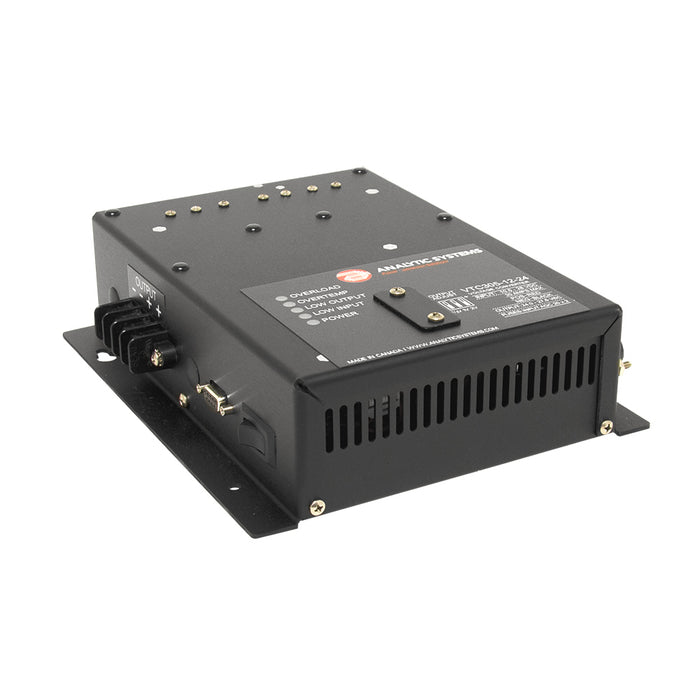

Analytic Systems Non Isolated DC/DC Converter 11-15V In
Analytic Systems

Analytic Systems Non Isolated DC/DC Converter 11-15V In

SKU
Sold out
$548.00 - $627.00
$548.00
$552.60
$552.60 - $630.59
$552.60
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Choose a Output voltage

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

This high-performance Non-Isolated DC/DC Converter is designed to provide reliable voltage stepping and power stabilization for demanding mobile and industrial environments. Engineered to step up a 12 VDC battery to ranges between 13.5 and 17.0 VDC or 24.0 and 27.5 VDC, the unit allows for precise adjustments in 0.5 VDC increments via a built-in 3-position DIP switch. Whether you need to stabilize a 12 or 24 VDC power system or boost voltage for specialized equipment, this converter delivers consistent, filtered power.

Safety and reliability are at the core of this design. The unit features an extensive protection suite, including reverse input protection, low input/output voltage alarms, over-temperature shutdown, and an output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the converter intelligently passes the voltage through with full LC filtering and a minimal schottky diode drop of 0.5 VDC or less, ensuring your electronics remain protected and powered.

Versatile enough for marine, automotive, and aeronautical applications, this converter is ideal for brightening 12-volt headlights, enhancing automotive ignition systems to prevent start-up failures, or stabilizing sensitive electronics. With its ultra-quiet operation and rugged construction, it is built to withstand wide temperature ranges and heavy-duty use.

Features:

  • Ultra-quiet operation for sensitive electronic environments
  • Rugged and reliable construction to ensure years of trouble-free operation
  • Simple operation with user-adjustable 3-position DIP switch
  • Advanced current limiting protection and paralleling diodes
  • European ROHS Compliant (Lead-Free Manufactured)
  • Electric Fork Lift ready with integrated filtering and surge suppression
  • Open Frame design with high-efficiency heat sink bars
  • Safety Special Inspection (CSA/UL) certified
  • Heavy-duty ruggedization with a wide operating temperature range
  • Custom input/output configurations available upon request
  • Three-year parts and labour warranty

Optional features include a dry contact alarm relay output and remote panel monitoring with On/Off control for enhanced system integration.

Brand: Analytic Systems

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
