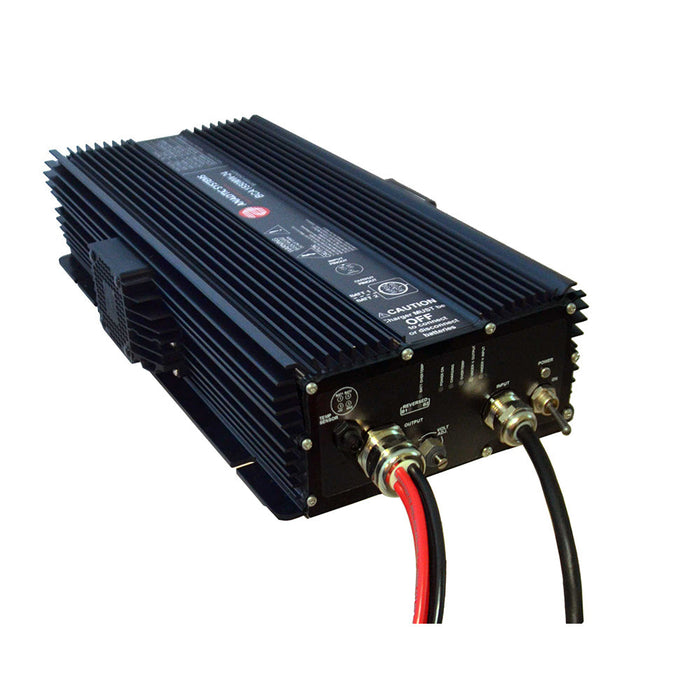

Analytic Systems AC Charger 2-Bank, 110/220 In
Analytic Systems

Analytic Systems AC Charger 2-Bank, 110/220 In

SKU
Availability :
Out of stock
Availability :
Out of stock
Availability :
Out of stock
Sold out
$2,661.00 - $2,722.00
$2,661.00
$2,561.78
$2,561.78 - $2,618.64
$2,561.78
Choose a Output voltage

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Analytic Systems BCA Series battery chargers provide high-performance charging power for one or two-bank battery systems. Designed to be versatile and dependable, these units can function as either a precision battery charger or a dedicated DC power supply, supporting a wide range of industrial and marine applications.

The recently updated design incorporates a Power Factor Corrected (PFC) input stage, allowing the unit to run continuously from 85 to 264 VAC at 50 or 60Hz with a Power Factor of 0.99 or better from 10% to 100% load. To ensure the safety of nearby sensitive electronics, heavy input filtering reduces EMI to extremely low levels. These units are built for rugged duty, featuring a heavy-duty extruded aluminum chassis, ventilated panels with thermostatically controlled cooling fans, and all stainless steel fasteners.

Reliability is at the core of this series. Built-in protection features include LED status indicators, an input circuit breaker, thermal shutdown, current limiting, reverse polarity connection protection, and output short circuit shutdown with automatic recovery. These chargers serve as a direct drop-in replacement for previous models in form, fit, and function, making upgrades seamless and efficient.

Features:

  • Power Factor Corrected AC Input
  • Fast and accurate charging for multiple battery banks
  • Dual-functionality: Can operate as a high-quality power supply
  • Ruggedized, IP66-rated construction for wide temperature environments
  • Visual indicators for real-time operation and error monitoring
  • Five-year parts and labor warranty

Specifications:

  • Input Voltage (AC): 85-265 VAC
  • Input Frequency: 50 or 60 Hz
  • Number of Battery Banks: 2
  • IP Rating: IP66
  • Mounting: Panel
  • Enclosure Material: Marine-grade aluminum with stainless steel fasteners
  • Protection: Thermal shutdown, current limiting, and reverse polarity protection
  • Approvals: CSA, UL
  • Net Weight: 12 lbs

Brand: Analytic Systems

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
