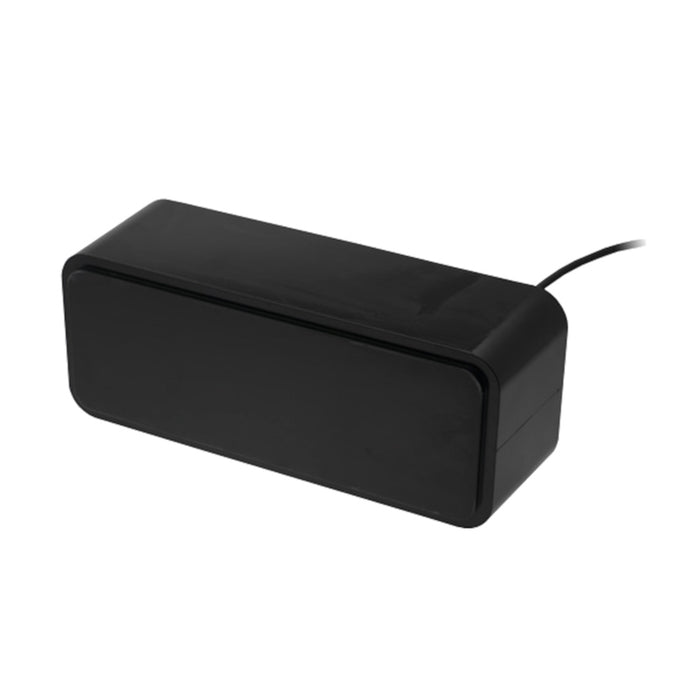

Airmar CM599LH 1-3kW Pocket Mounted Transducer - No Connector
Airmar

Airmar CM599LH 1-3kW Pocket Mounted Transducer - No Connector

SKU
Save 9% Save 9%
$5,279.99
$5,279.99 - $5,279.99
$5,279.99
$4,799.99
$4,799.99 - $4,799.99
$4,799.99
Availability In Stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
Non-returnable

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

CM599LH 1-3kW Pocket Mounted Transducer - No Connector

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.

The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.

Features:

  • Depth and fast-response water-temperature sensing
  • 2 to 3 kW of power for exceptional deep-water performance
  • Low frequency: 28 to 60 kHz
  • 23° to 9° port-starboard beamwidth
  • 11° to 5° fore-aft beamwidth
  • Maximum depth to 3048 m (10000')
  • High frequency: 130 to 210 kHz
  • 8° to 4° beamwidth
  • Maximum depth to 457 m (1500')
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Resin housing with curved-edge design for wet-box installation
  • Can be installed in a cavity or welded tank
  • Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
  • Patented Xducer ID® technology

Specifications:

  • Frequency Band: Low-High
  • Functions: Depth, Temperature
  • Material: Urethane
  • Mounting Style: Tank, Cavity, Pocket/Keel Mount
  • Connector: Bare Wire
  • Display Connector: 0
  • Hull Material: Fiberglass or metal
  • Max Vessel LOA: 8 m (25') and above
  • High Frequency: 130-210 kHz
  • Common Use: Fishing, Commercial Fishing
  • Max Deadrise Angle: Any
  • Tilted Element: No
  • Low Frequency Beamwidth: 11°x23°-5°x9°
  • Low Frequency: 28-60 kHz
  • High Frequency Beamwidth: 8°-4°
  • Max Deadrise: Accommodates any deadrise angle based on custom installation
  • Power Rating: 2-3 kW
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Country of Origin: USA
  • Cable-Length: 15 m (49')
  • Weight: 14.2 kg (31.2 lb.)
  • Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brand: Airmar

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet AIRCM599C-LH Quick Guide ⬇ View Here
Brochure AIRCM599C-LH Brochure ⬇ View Here
Guide AIRCM599C-LH Installation Guide ⬇ View Here
