Airmar B175L Bronze Thru-Hull 1kW Transducer
Airmar

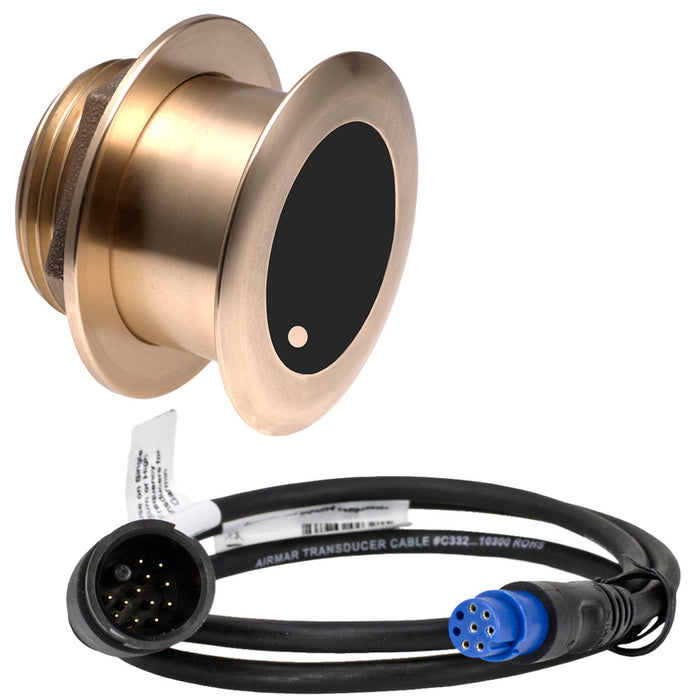

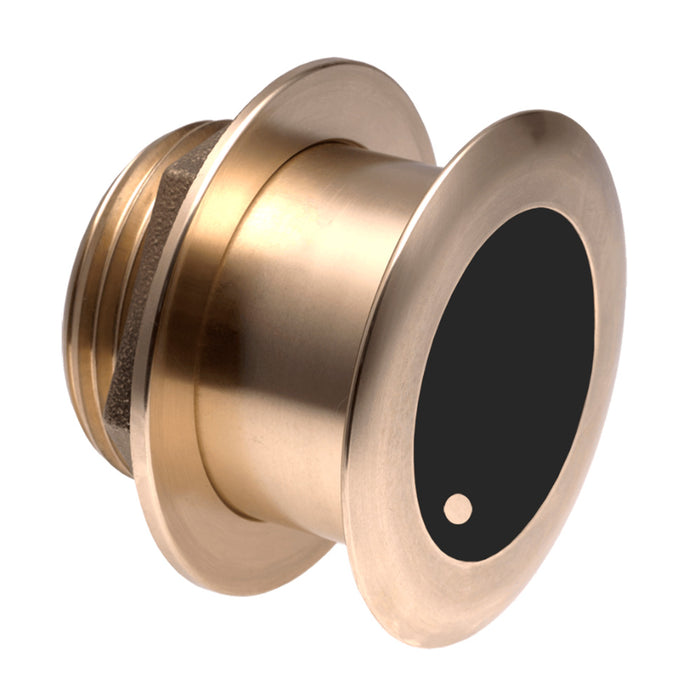

Airmar B175L Bronze Thru-Hull 1kW Transducer

SKU
$1,979.99 - $1,979.99
$1,979.99
$1,799.99
$1,799.99 - $1,799.99
$1,799.99
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Availability In Stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Choose a Connector
Choose a Tilt

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Airmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L series transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer provides up to 20 kHz of total bandwidth in a single installation, offering tremendous deep-water performance for serious anglers.

Tilted Element™ technology features a ceramic element fixed at a specific angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings and superior target separation.

Features:

  • Depth and fast-response water-temperature sensing
  • 1 kW of power for exceptional deep-water performance
  • Low frequency: 40 to 60 kHz
  • 32° to 21° beamwidth
  • Maximum depth of 762 m (2500')
  • Low-profile, thru-hull housing provides high-quality display resolution at speed when installed properly
  • Recommended for stepped, planing, or displacement hulls
  • Bronze housing specifically designed for use in fiberglass or wood hulls
  • Patented Xducer ID® technology

Specifications:

  • Power Rating: 1 kW
  • Max Deadrise Angle: Up to 24°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 11 m (36')
  • Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
  • Usable Shaft Length: 71 mm (2.80")
  • Mounting Style: Tilted Element Thru-Hull
  • Acoustic Window: Urethane
  • Common Use: Fishing
  • Low Frequency: 40-60 kHz
  • Low Frequency Beamwidth: 32°-21°
  • Max Depth: 762 m (2500')
  • Retractable housing: No
  • Single or Dual Frequency: CHIRP-Ready Single-Band
  • Tilted Element: Yes
  • Weight: 2.7 kg (6 lbs.)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brand: Airmar

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
