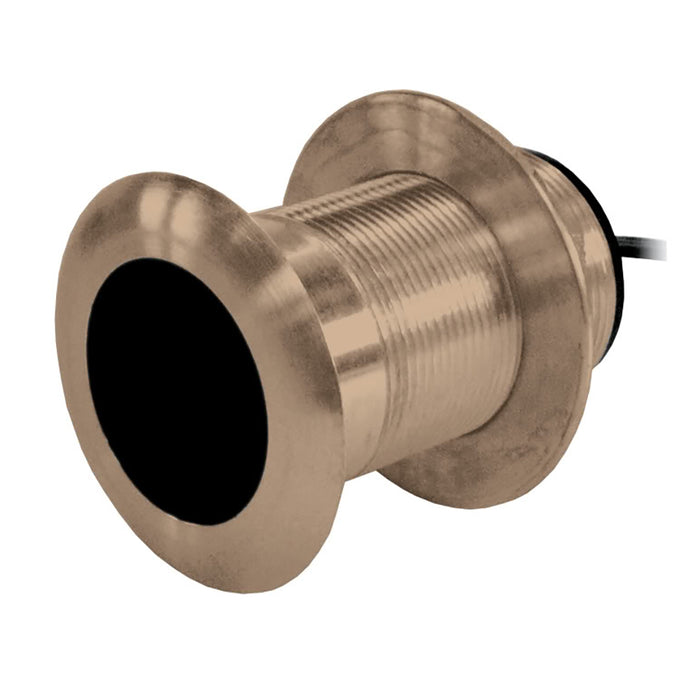

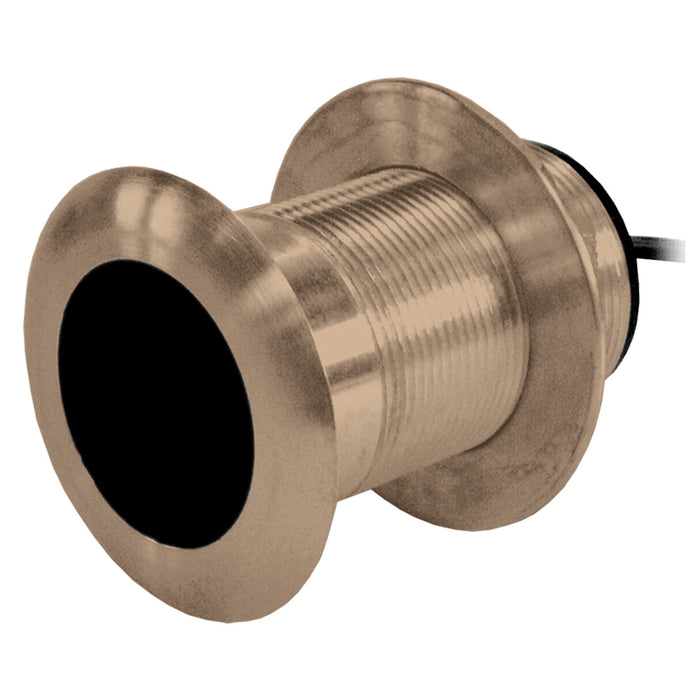

Airmar B117 Bronze Thru-Hull Transducer
Airmar

Airmar B117 Bronze Thru-Hull Transducer

SKU
$359.99 - $359.99
$359.99
$319.99
$319.99 - $319.99
$319.99
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Availability In Stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Choose a Connector type

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The B117 series is the industry standard for low-profile, thru-hull transducers, featuring a high-performance 50/200 kHz dual-frequency ceramic element. Designed for boats 8 meters (25') and up, this bronze housing unit is nearly flush with the hull, extending only 5mm (3/16") outside the surface to minimize drag. This makes it an ideal choice for center-console and trailered boats where streamlined performance is essential.

Engineered for versatility, the dual-frequency element provides excellent target detail in shallow water at 200 kHz and superior bottom tracking in deep water at 50 kHz. The low-profile design is complemented by a right-angle cable exit, which offers a low headroom profile and protects the cable from damage if the transducer is stepped on. For installation ease, an included rubber washer allows the hull nut to be tightened securely against irregular hull surfaces.

Features:

  • Dual-frequency performance: 50 kHz with a wide 45° beamwidth and 200 kHz with a 12° beamwidth
  • Provides depth and fast-response water temperature sensing
  • 600 W power rating for reliable sonar returns
  • Low-profile bronze housing minimizes drag and is ABYC H-27 compliant
  • Excellent performance on fiberglass or wood hulls
  • Right-angle cable exit saves space and protects internal wiring
  • Ideal for leisure, yachting, and fishing applications

Specifications:

  • Power Rating: 600 W
  • Frequencies: 50/200 kHz
  • Maximum Depth Range: 50 kHz: 235 m to 366 m (800' - 1200'); 200 kHz: 118 m to 206 m (400' - 700')
  • Beamwidth: 45° (50 kHz) and 12° (200 kHz)
  • Deadrise Angle: Best performance through 7°; accommodates up to 12°
  • Hole Diameter: 51 mm (2")
  • Weight: 0.9 kg (2.0 lb)
  • Acoustic Window: Urethane
  • Usable Shaft Length: 66.5 mm (2.62”)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brand: Airmar

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
