Home Shop By Marine Electronics & Lighting Electronics Cables, Cords, Networking & Accessories Actisense N2K Micro 4 Way T-Piece
Actisense N2K Micro 4 Way T-Piece
Actisense

Actisense N2K Micro 4 Way T-Piece

SKU
Availability :
10+ In Stock
Save 19% Save 19%
$160.00
$160.00 - $160.00
$160.00
$129.53
$129.53 - $129.53
$129.53

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

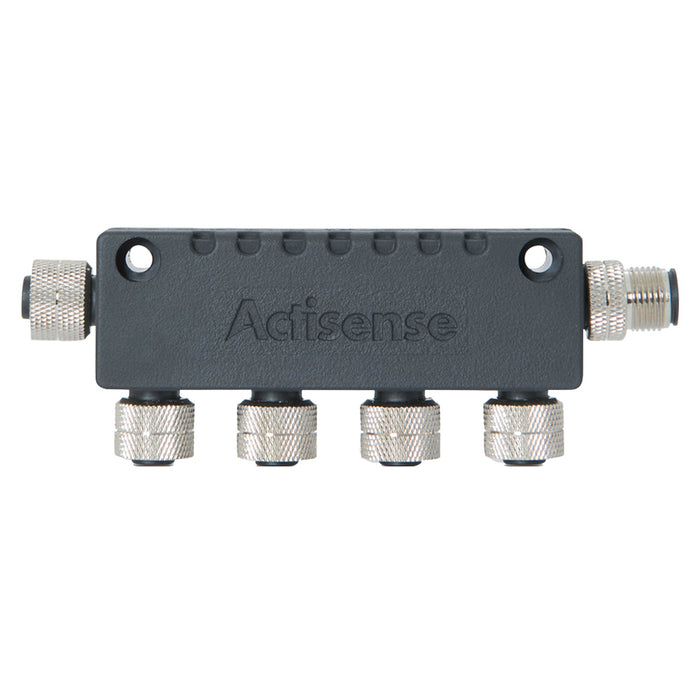

N2K Micro 4 Way T-Piece

The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Features:

  • NMEA 2000 Approved
  • RoHS Compliant

Specifications:

  • Rated Current: 4A
  • Rated Voltage: 60V DC
  • Male Contact: Brass, gold plated
  • Female Contact: Phosphor bronze, gold plated
  • Contact Carrier: PA66 (30% Glass filled), black
  • Contact Polarization: Standard M12 -“A”- polarization
  • Mating Thread: M12
  • Screw Cap: Brass, nickel plated
  • O-Ring Seal: Rubber, Black
  • Housing: TPU, flame retardant to UL94V-0, Halogen Free
  • Internal Housing Shield: Copper Foil
  • Weight: 105g
  • Protection: IP67 (when mated)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C

Brand: Actisense
