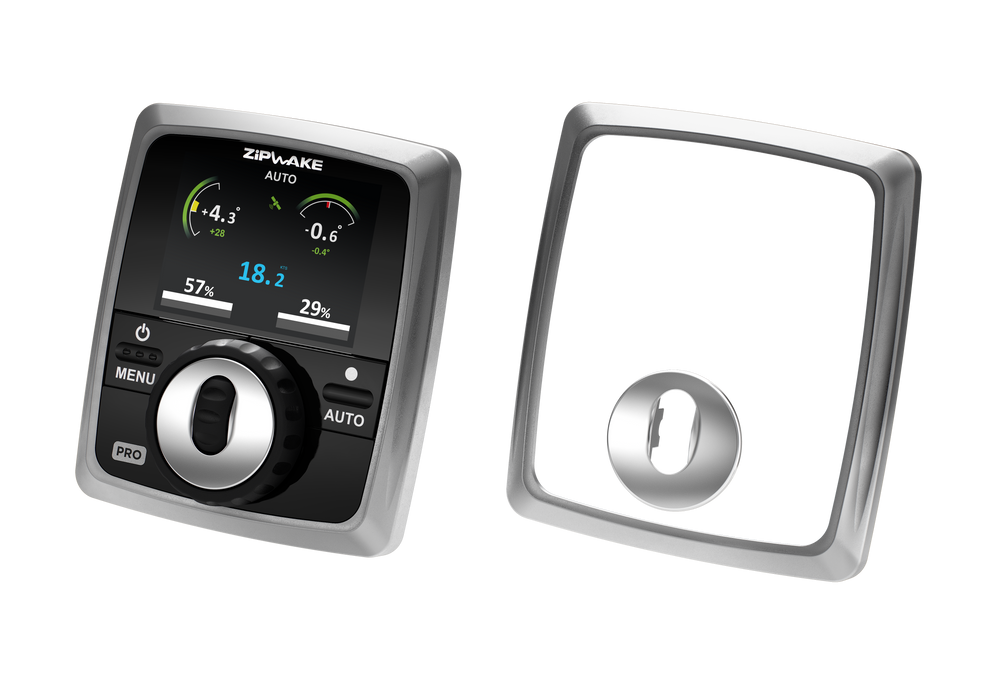

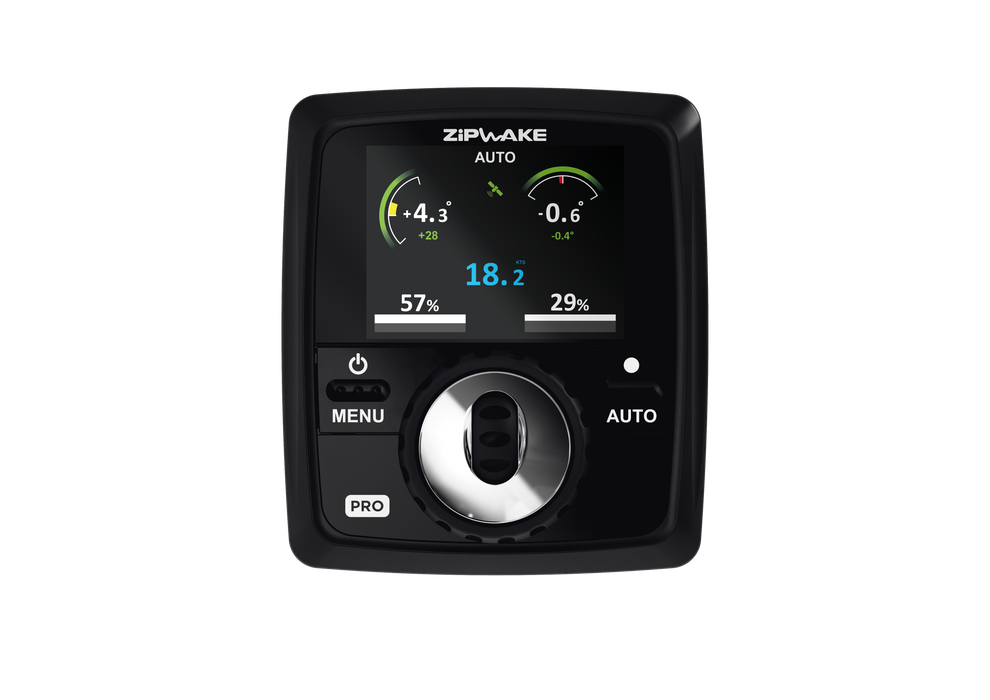

The Zipwake CP PRO is the dedicated helm control panel for Series S PRO / Series E PRO systems. It combines automatic pitch-and-roll control, manual trim and heel controls, built-in positioning and motion sensors, and clear system feedback on a sunlight-readable display.

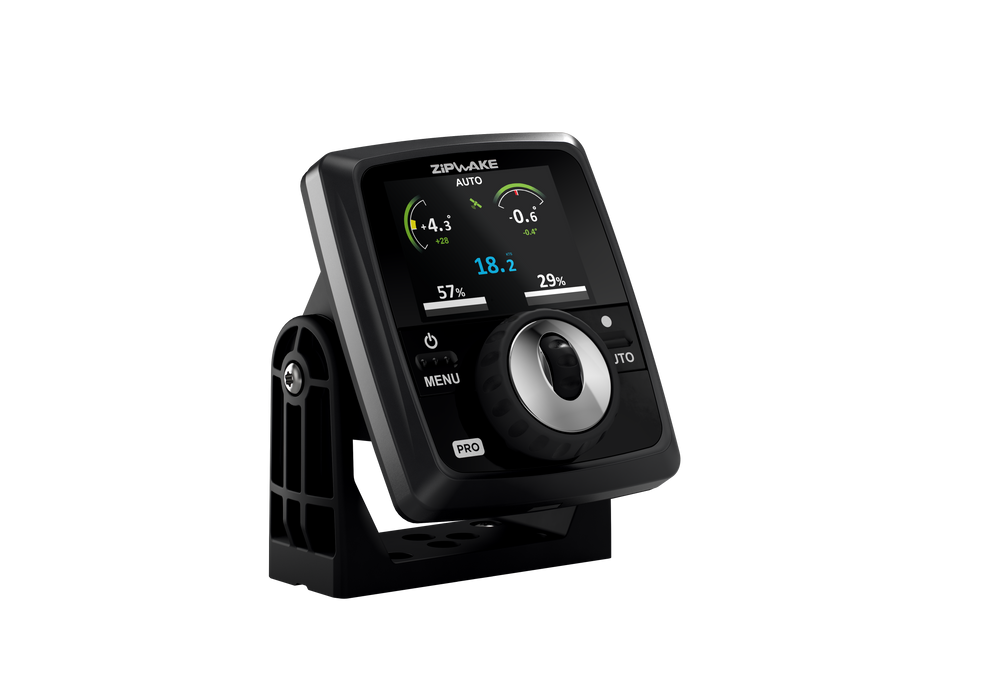

The waterproof panel supports surface, flush or gimbal-bracket mounting and provides I-BUS, NMEA 2000, external GPS, key-sense and USB service connections.

Product Information

Brand Zipwake
Series Series S PRO / Series E PRO
Model CP PRO
Manufacturer Part Number 2022032
Product Type Control Panel

Key Features

  • Automatic dynamic pitch and roll control
  • Built-in 5 Hz GPS, 3D gyro and 3D accelerometer
  • Sunlight-readable color display
  • Manual trim, heel and heading controls
  • Supports up to three additional control panels

Specifications

Display 2.8 in IPS color TFT, 320 × 240 pixels
Operating Voltage 12–32 V DC
Power Consumption 10 W max
Operating Temperature -20°C to +80°C (-4°F to +176°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)
Waterproof Rating IP67 front / IP64 back
Compass Safe Distance 0.5 m (1.7 ft)
Compliance CE, FCC
Weight 0.22 kg (0.49 lbs)
Mounting Surface, flush or gimbal bracket
Included Cable 7 m (23 ft)

Included

  • 1 × CP PRO control panel
  • 1 × standard cable, 7 m (23 ft)

Compatibility

For the stated Series S PRO / Series E PRO system generation. Manages configurations of one to six applicable interceptors.

Installation Notes

  • Mount surface, flush or with the Zipwake gimbal bracket as appropriate.
  • Maintain the specified compass-safe distance and waterproof rear connections.

Important Information

Do not mix this panel with an unsupported series or generation. Interceptors and the distribution unit are sold separately unless supplied in a kit box.
