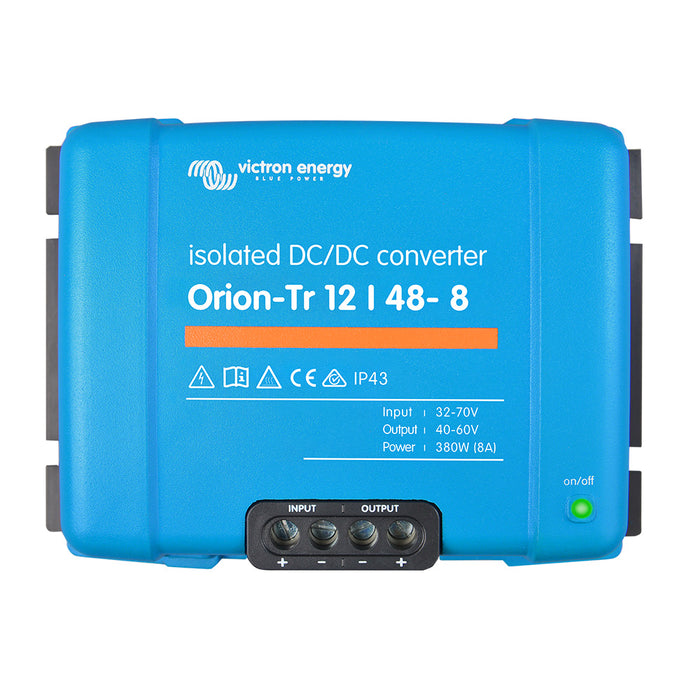

Victron Orion-TR 12/48-8A (380W) Isolated DC-DC Converter
Victron Energy

Victron Orion-TR 12/48-8A (380W) Isolated DC-DC Converter

SKU
Availability :
10+ In Stock
Save 15% Save 15%
$237.00
$237.00 - $237.00
$237.00
$201.45
$201.45 - $201.45
$201.45
Non-returnable

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Orion-TR 12/48-8A (380W) Isolated DC-DC Converter

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

  • Input Voltage Range: 10-17 V
  • Under Voltage Shut Down: 7 V
  • Under Voltage Restart: 7.5 V
  • Nominal Output Voltage: 48.2 V
  • Output Voltage Adjust Range: 40-60 V
  • Output Voltage Tolerance: +/- 0,2 V
  • Output Noise: 2 mV rms
  • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 8 A
  • Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 15 A
  • Short Circuit Output Current: 25 A
  • Cont. Output Power at 25 Degrees C: 430 W
  • Cont. Output Power at 40 Degrees C: 380 W
  • Efficiency: 89 %
  • No Load Input Current (2): < 220 mA
  • Current Consumption: < 200uA when disabled via its remote port
  • Galvanic Isolation: 200 VDC between input, output, and case
  • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
  • Humidity: Max. 95 % non-condensing
  • DC Connection: Screw terminals
  • Maximum Cable Cross-Section: 16 mm² AWG6
  • Weight: 1.8 kg (4 lb)
  • Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
  • Safety Standards: EN 60950
  • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
  • Automotive Directive Standards: ECE R10-5
Please contact your dealer for any returns, repairs or support issues related to this product.
