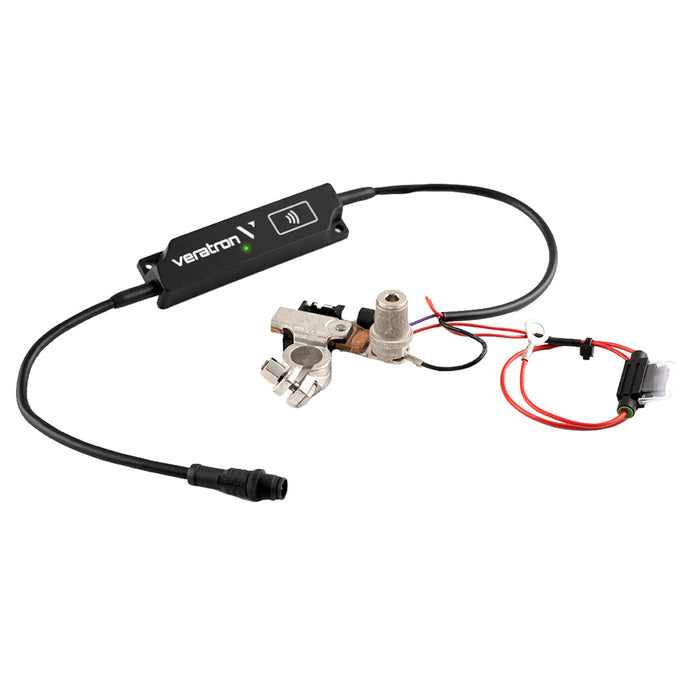

Easily installed LinkUp gateway modules replace the original wiring, delivering power to the LinkUp device and sensor from the NMEA 2000 backbone while still compliant with the NMEA 2000 certification. Thanks to their passive wireless receiver, the configuration is done in a snap using your mobile device, and the LinkUp Configurator app is available for Android and iOS devices. The sensor parameters are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.
Features:
NMEA 2000 certified
Wireless configuration through companion mobile App
Status LED
Plug-and-Play installation and configuration
Specifications:
Operating voltage - 6-18V
Permanent load current - +/-200A
Maximum current - +/-1500A
Maximum battery capacity - 500Ah
Threaded GND bolt - M6
Power consumption - = 15 mA (normal mode)
Output signal - NMEA 2000
Dimensions - 125mm x 32mm (+cables)
Protection class - IP X9/K (LinkUp) IP6K7 (Sensor)
Operating temperature - -40 Degree C to +115 Degree C
Flammability - UL94
Housing material - PC-FR
Compliance - CE, UKCA, Reach, RoHS, ISO8846:1990
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Brand: Veratron
