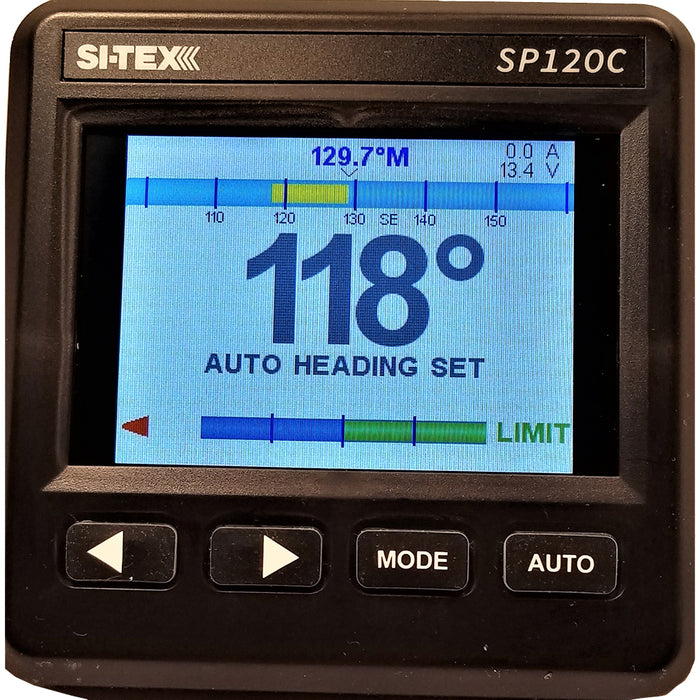

SI-TEX SP-120 Color System w/Rudder Feedback & 18CI Pump
No reviews
SKU
MPN:
SP120C-RF-2
Availability :
Out of stock
Online Inventory Only
This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Sold out
Original price
$3,499.00
Original price
$3,499.00
-
Original price
$3,499.00
Original price
$3,499.00
Current price
$2,975.67
$2,975.67
-
$2,975.67
Current price
$2,975.67
| /
Ship same day | Standard by 2PM EST| Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup
SP-120 Color System with Rudder Feedback & 18CI Pump
Features:
The SI-TEX SP-120C is an Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
Does not require a separate junction box, everything simply connects to the rear of the control head
This Autopilot is ideal for small vessels under 38'
The Autopilot can operate in either Virtual Rudder feedback mode in the case of Outboards or a separate Rudder Feedback unit can be added for inboard vessels
SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
Compact 4.1” x 4.1” Splash proof Control head with large easy to read Color LCD LCD Display
Extremely easy to select your desired headings, operate, and setup, with new user friendly software
High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering response
Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to
enhance performance
NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay
Autopilot Steering Modes:
Manual (Power Steer)
Auto (Pilot maintains selected Magnetic course)
GPS (Steers to Waypoint or Routes when Interfaced with GPS)
Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)
Protected by 2 Year SI-TEX Warranty
Specifications:
Waterproof: IPX6
Control Head Dimensions: 110 mm L x 110 mm W
Voltage supply VOLTAGE: 12/24 Volts DC
LCD Color LCD Display
Constant Compass Heading Indicator and Rudder Angle Indicator
Current consumption: 0.5 amps at 12VDC in standby mode
Maximum Drive Output Current 15 Amps
Operating temperature: -10ºC to +55ºC
Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output
Course Detection <1 Degree
Package Includes:
SI-TEX SP-120C Color LCD Autopilot Control Head
NMEA Interface Cables
9 Axis Electronic Rate Gyro Compass
Control Head Sun cover
Product manual
Mounting Screws
Brand: SI-TEX
