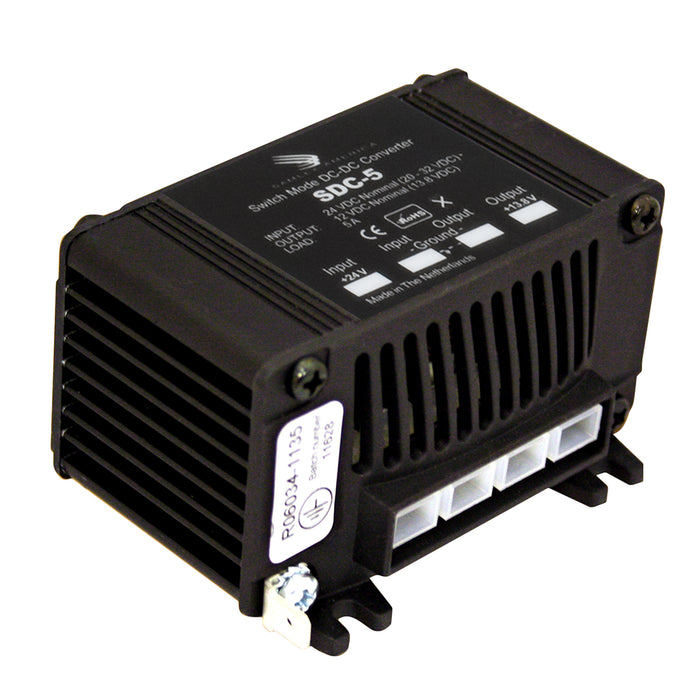

Samlex 5A Non-Isolated Step-Down 24VDC-12VDC Converter
Samlex America

Samlex 5A Non-Isolated Step-Down 24VDC-12VDC Converter

SKU
Availability :
Only 8 left!
Save 20% Save 20%
$65.60
$65.60 - $65.60
$65.60
$52.50
$52.50 - $52.50
$52.50

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

5A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

  • Advanced switchmode design
  • Mount in almost any location
  • Compact and light weight
  • Reverse polarity protection
  • High efficiency
  • Cycle by cycle current limiting circuit
  • Overvoltage protection
  • Short circuit protection

Specifications:

  • Input: 20-32 VDC
  • Output: 13.8 VDC
  • Amps: 5 Amps
  • Weight: 0.4 (lbs)
  • Weight: 0.18 (kg)
  • Dimensions: 3.5 x 2.75 x 1.75 (in)
  • Dimensions: 8.9 x 7 x 4.4 (cm)
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
