Raymarine RSW Wired - Smart Performance Wind Transducer - Short Arm w/30M Cable
No reviews
SKU
MPN:
E70670
Availability :
Only 4 left!
Online Inventory Only
This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Original price
$947.98
-
Original price
$947.98
Original price
$947.98
$947.98
-
$947.98
Current price
$947.98
| /
Ship same day | Standard by 2PM EST| Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup

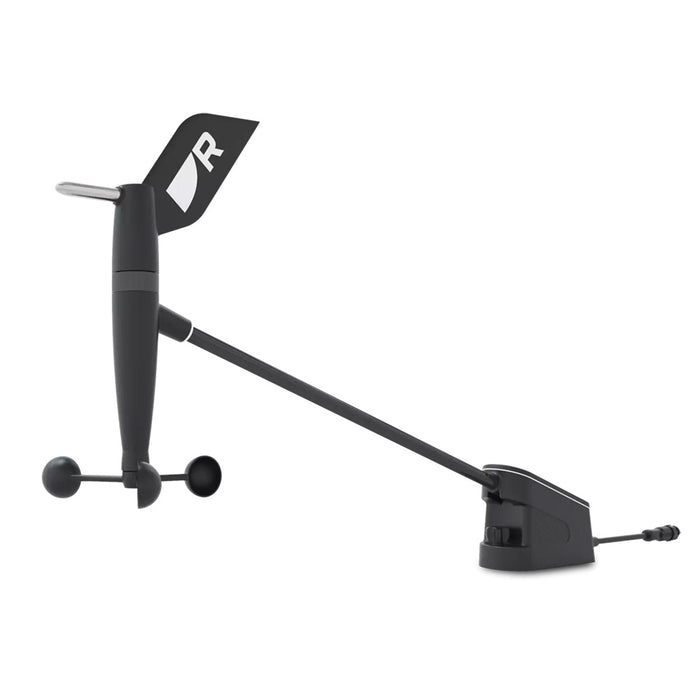

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M Cable
The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.
Install & Go!
Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
Finely Tuned
Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.
Sail Smarter
Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.
Specifications:
Length
Wind transducer (including cable): 657.762 mm (25.90 in)
Wind transducer (excluding cable): 540.712 mm (21.29 in)
Wired gateway: 155.61 mm (6.13 in)
Width
Wind transducer: 46.96 mm (1.85 in)
Wired gateway: 47.38 mm (1.88 in)
Height
Wind transducer: 305.86 mm (12.04 in)
Wired gateway: 30.61 mm (1.21 in)
Power
Nominal supply voltage: 12 V dc (via SeaTalk NG)
Operating voltage range: 9 V to 16 V dc
Power Consumption: < 100 mW
Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1
Environmental
Operating temperature range: -25°C to +55°C (-13°F to +131°F)
Storage temperature range: -30°C to +70°C (-22°F to +158°F)
Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C
No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
Mast cable, 30 m (98.43 ft) reel
Documentation
Wind transducer
Smart wind-wired gateway
SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
Brand: Raymarine
