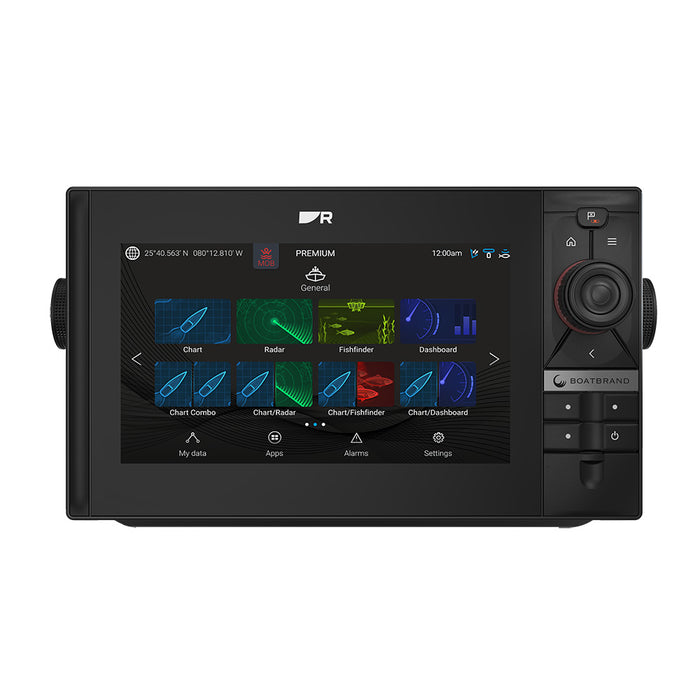

Raymarine Axiom 2 Pro 9 S 9" Chartplotter/Fishfinder - No Transducer or Chart

SKU
Availability :
Only 3 left!
Original price $3,024.99 - Original price $3,024.99
Original price
$3,024.99
$3,024.99 - $3,024.99
Current price $3,024.99

Ship same day | Standard by 2PM EST| Express by 1PM EST

Are you local? | Local same day delivery & FREE Store Pickup

Need Help From Our Sales Team?

Available during our normal business hours:

Axiom 2 Pro 9 S 9" Chartplotter/Fishfinder - No Transducer or Chart

Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro S chartplotters feature built-in single channel High CHIRP sonar- the ideal sonar solution for reliable depth sounding and underwater exploration. Available in 9, 12, or 16-inch display sizes, Axiom Pro 2 is the perfect cruising companion.

Features:

  • Get underway faster with a fast 6-core processor
  • HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
  • Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
  • Integrated High CHIRP sonar with transom, in-hull, and low-profile through-hull CPT-S series transducer options
  • Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
  • Create your own Axiom 2 Pro system with multiple networked Axiom displays
  • Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems

Specifications:

Connections:

  • Digital Video & Audio Out Connection: HDMI Out Micro connector type D’
  • External GPS Antenna Connection: TNC connector
  • Accessory connection: USB Micro B (rear–charging, external storage device or RCR-SD/USB Accessory (A80440)
  • Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
  • External storage: MicroSD card slot x2 (front)
  • Chart options: Navionics+ or Navionics Platinum or C-map 4D Software, Lighthouse North America
  • NMEA 2000 connection: DeviceNet connector
  • Analog video connections: BNC Analog video input (on power cable)
  • Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
  • Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
  • Audio connections: Left and Right RCA connectors via Power/Video/Audio cable

GPS:

  • GNSS compatibility: GPS, Galileo, GLONASS, Beidou

Sonar:

  • Channels: CHIRP conical sonar (Uses CPT-S Transducers with adapter cable A80490)
  • Depth range: 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions

Lighting:

Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2

Storage:

  • Internal storage: 64 GB Solid State

Brand: Raymarine
