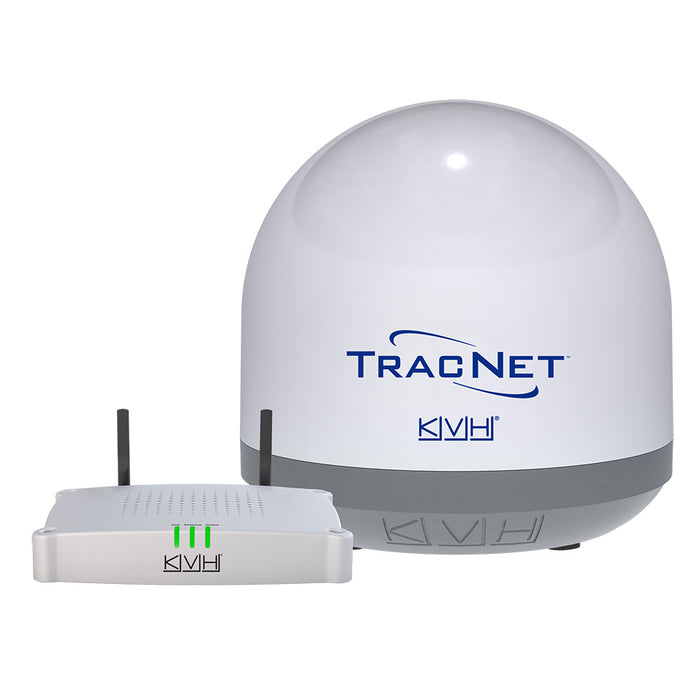

KVH TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub
KVH

KVH TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub

SKU
Sold out
$1,195.00
$1,195.00 - $1,195.00
$1,195.00
$1,056.75
$1,056.75 - $1,056.75
$1,056.75
Availability Out of stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Ship same day | Standard by 2PM EST | Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

TracNet Coastal Pro 5G/WiFi Compact Terminal with TracNet Hub

Are you looking for faster and more affordable data to support business and personal connectivity? Would you like to experience home-like content streaming on your boat? Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!

Features:

  • 5G/LTE and WAN WiFi in a compact radome
  • Integrated cellular//WiFi system with intelligent hybrid switching
  • High-gain 5G cellular antennas for extended offshore coverage
  • Single-cable, DC-powered maritime design (TracNet Hub)
  • Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
  • Data plans starting as low as $1/GB (subject to change)
  • Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
  • Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
  • Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
  • Marine-grade, compact antenna
  • Single-cable antenna installation with ultra-efficient DC power design
  • Hybrid hub functionality to intelligently and automatically switch between 5G, WiFi, and as many as two additional third-party antenna (Starlink, OpenNet, etc.)
  • Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more
  • Belowdeck WiFi 5 Access Point (AP), supporting dual-simultaneous WAN and LAN WiFi
  • 4-port ethernet router
  • Remote SIM technology, supporting up to two user-supplied SIM cards with convenient below-deck access

Technical Specifications:

  • Dome Dimensions - 13.5" (Dia.) x 13.1" (H)
  • Dome Weight - 8 lbs
  • Dome Operating Temperature - -25°C to +55°C (-13°F to +131°F)
  • Dome Survival Temperature - -30°C to +70°C (-22°F to +158°F)
  • Below Deck Unit (BDU) Ethernet Ports - 4, Configurable as Starlink WAN/ Backup WAN/User WAN
  • Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option
  • Power Consumption (Nominal/Max) - 16W/22W
  • BDU Operating Temperature - -15°C to +55°C (+5°F to +131°F)
  • BDU Survival Temperature - -25°C to +70°C (-13°F to +158°F)
  • Intelligent Connection Switching Number of WANs Supported - 4 Cell/WAN Wi-Fi/Starlink/Backup WAN

Brand: KVH

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet KVH01-0465 Quick Guide ⬇ View Here
Manual KVH01-0465 Owner's Manual ⬇ View Here
Brochure KVH01-0465 Brochure ⬇ View Here
Guide KVH01-0465 Installation Guide ⬇ View Here
