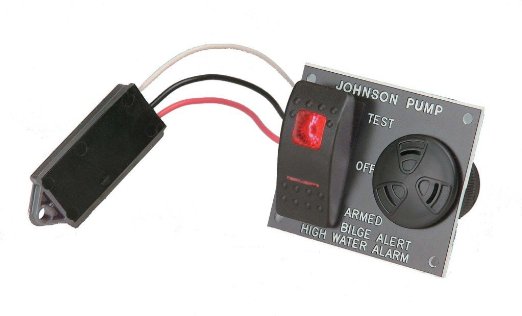

The Bilge Alert system uses a patented Mirus field effect detector cell, which produces a micro-electrical field that detects disruptions caused by water and fluids. When activated the sensor will trigger a 100db piezo alarm and an LED light on the control panel.
The sensor measures a small 26 mm wide x 64 mm long x 5 mm thick (1.04 x 2.5 x 0.2 in) which makes it very easy to mount. Detector cells are totally sealed, are never in contact with the water, will not corrode and are not affected by oil or foreign debris.
Features
No moving parts Totally sealed solid state electronics and field detectors No mercury No exposed sensors eliminate corrosion possibilities Unique 3-way switch disables piezo alarm while keeping warning LED lit Environmentally sensitive Meets ISO 8846
The Bilge Alert sensor should be mounted on the bulkhead, stringer, inner transom or hull of your boat above the normal operating level of your automatic float switch, but below the level of critical components of your boat and/or engine; such as the starter. If water disrupts the sensor for more than 8 seconds the alarm and warning LED will be triggered.
Field effect dector cells Mirus dector cells are composed of an active device and an electrode surrounded by a second electrode.The applied circuit creates an electric field around the cell. When a dielectric material (such as bilge water) interrupts the field the active device responds by outputting a signal.In the case of the Bilge Alert, this signal is used to sound a loud (100db) alarm and light a warning lamp on the control panel.
Dectector Alarm panel Width 26 mm - 1.04" 63 mm - 2.47" Height 5 mm - 0.2" 50 mm - 1.97" Length 64 mm - 2 --- Wire size 16 Ga. Tin coated Housing ABS Thermoplastic Wire length 762 mm - 30"
Passive amp 16 mA Max amp 20A, 12 V
Order Nr. 72303
Brand: Johnson Pump
Ship Length:
Ship Width:
Ship Height:
