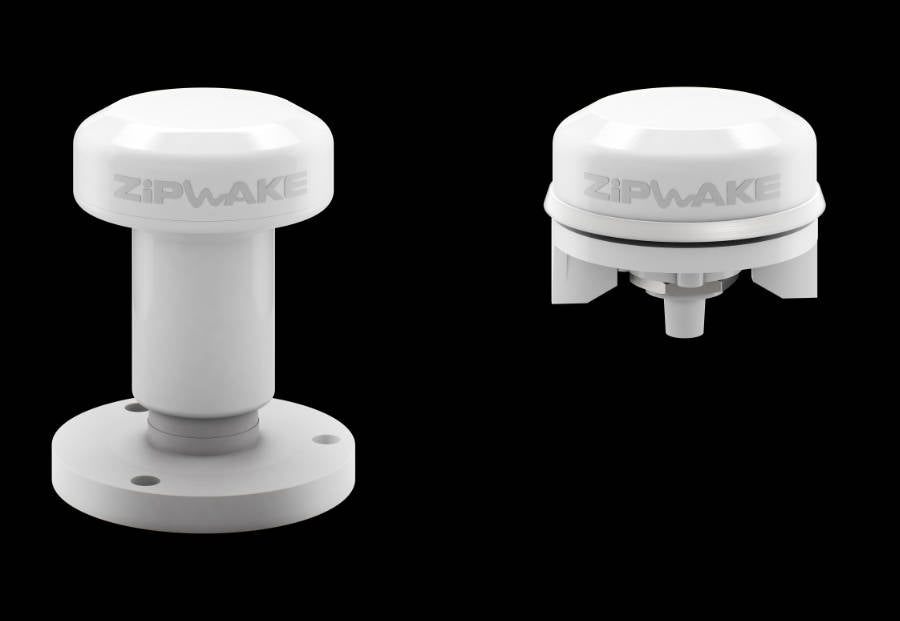

Zipwake 2011240 | GPU External GPS Antenna with 5 m Cable and Mounting Kit
Zipwake

Zipwake 2011240 | GPU External GPS Antenna with 5 m Cable and Mounting Kit

SKU
Sold out
$573.75
$573.75 - $573.75
$573.75
$509.65
$509.65 - $509.65
$509.65
Availability Out of stock Lead Time Typically Ships within 1 Week In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Zipwake GPU is an optional external 5 Hz GPS antenna that supplies vessel position and speed data when the system cannot obtain a strong GPS signal from another source.

The rugged, fully waterproof receiver supports flush or pole mounting and connects to the EXT GPS port on a compatible Zipwake control panel. Its 5 m cable may be extended to 15 m with approved Zipwake extension cables.

Product Information

Brand Zipwake
Series Series S / Series E / Series S PRO / Series E PRO
Model GPU
Manufacturer Part Number 2011240
Product Type External GPS Antenna

Key Features

  • 5 Hz, 20-channel GPS receiver
  • NMEA 0183 / RS232 output
  • Flush or pole mounting
  • Waterproof IP67 construction
  • 5 m cable extendable to 15 m

Specifications

Operating Voltage 5 V DC ±5%
Power Consumption 0.28 W, 55 mA average
Protocol NMEA 0183 / RS232
NMEA Sentences RMC, VTG, GGA, GSA, GSV, GLL
Baud Rate 38400
Update Rate 5 Hz
Channels 20
Time to First Fix Hot 6 s; warm 38 s; cold 42 s
Operating Temperature -30°C to +85°C (-22°F to +185°F)
Storage Temperature -40°C to +95°C (-40°F to +203°F)
Waterproof Rating IP67
Compliance CE, FCC
Weight 0.065 kg (0.14 lbs) without cable and connector
Mounting Flush or pole

Included

  • 1 × GPU external GPS antenna
  • 1 × attached 5 m (16 ft) cable
  • 1 × mounting kit

Compatibility

Connects to the EXT GPS port of a compatible Zipwake control panel in Series S, Series E or PRO installations.

Installation Notes

  • Use when no other strong GPS source is available to the Zipwake system.
  • Locate with a clear sky view and use only supported Zipwake extension cables up to a total of 15 m (49 ft).

Important Information

This antenna is optional and does not replace the other control, power or interceptor components required for a complete system.
